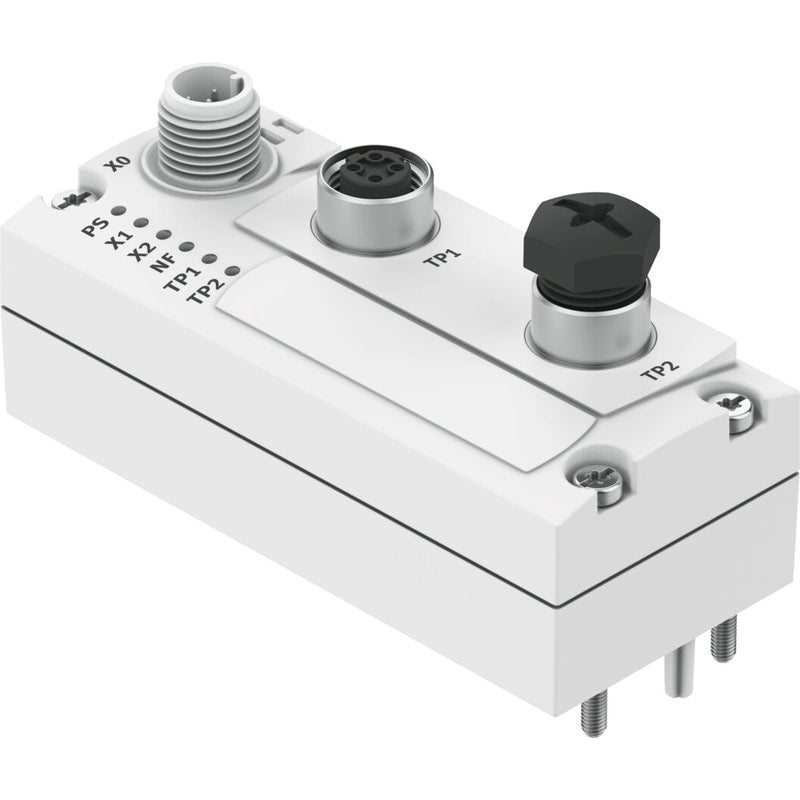

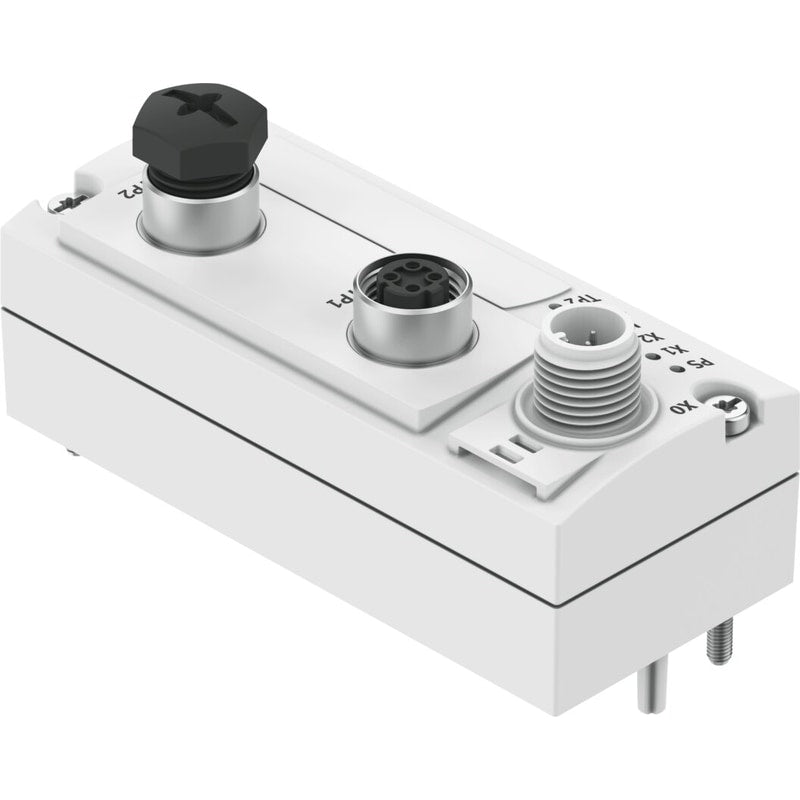

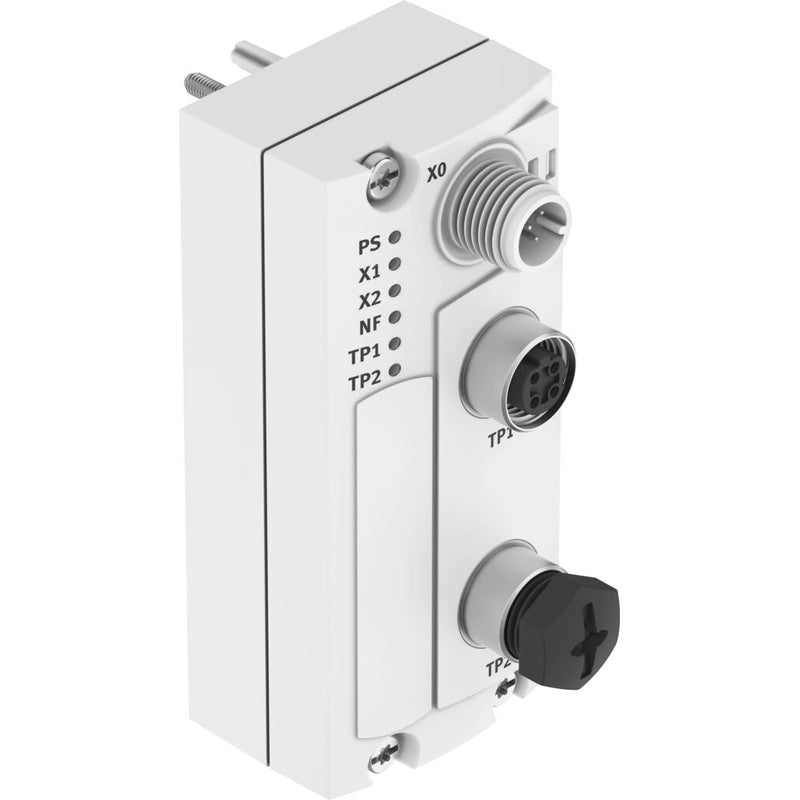

Bus node
CTEU-PN-EX1C
8107589
GTIN 4052568582432
Vendor Festo
- Protocol
- PROFINET
- DC operating voltage range
- 18 V - 30 V
- Intrinsic current consumption at nominal operating voltage
- Typ. 80 mA
- Fieldbus interface, protocol
- PROFINET RT
- Degree of protection
- IP65 - IP67
Regular price
$774.88
Unit price
CTEU-PN-EX1C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CTEU-PN-EX1C
Regular price
$774.88
Unit price
CTEU-PN-EX1C is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 40 mm x 91 mm x 50 mm |
|---|---|
| Width dimension | 40 mm |
| Type of mounting | On electrical interface On electrical sub-base |
| Product weight | 93 g |
| Protocol | PROFINET |
| Fieldbus interface, type | Ethernet |
| Fieldbus interface, protocol | PROFINET RT |
| Fieldbus interface, function | Bus connection, incoming/forwarding |
| Fieldbus interface, connection type | 2x socket |
| Fieldbus interface, connection technology | M12x1, D-coded as per EN 61076-2-101 |
| Fieldbus interface, number of poles/wires | 4 |
| Fieldbus interface, connection pattern | 00995716 |
| Fieldbus interface, galvanic isolation | yes |
| Fieldbus interface, transmission rate | 100 Mbit/s |
| Internal cycle time | 1 ms per 1 byte of user data |
| Max. address capacity inputs | 64 byte |
| Max. address capacity outputs | 64 byte |
| Power supply, function | Electronics and load |
| Power supply, type of connection | Plug |
| Power supply, connection technology | M12x1, A-coded as per EN 61076-2-101 |
| Power supply, number of pins/wires | 5 |
| Power supply, connection pattern | 00995383 |
| Diagnostics | Communication error System diagnostics Undervoltage |
| Additional functions | Conformance class C Fast start-up (FSU) LLDP MRP PROFINET IRT PROFIenergy SNMP Shared device Web server |
| Configuration support | GSDML file |
| LED display (product-specific) | PS: operating voltage for electronics and load supply X1: module system status at I-Port 1 X2: module system status at I-Port 2 |
| LED display (bus-specific) | NF: network fault TP1: network active port 1 TP2: network active, port 2 |
| DC operating voltage range | 18 V ... 30 V |
| Nominal operating voltage DC | 24 V |
| Intrinsic current consumption at nominal operating voltage | Typ. 80 mA |
| Max. power supply | 4 A |
| Certification | RCM compliance mark |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Storage temperature | -20 °C ... 70 °C |
| Degree of protection | IP65 IP67 |
| Note on degree of protection | In mounted state Unused connections sealed |
| Ambient temperature | -5 °C ... 50 °C |
| Housing material | PA |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
