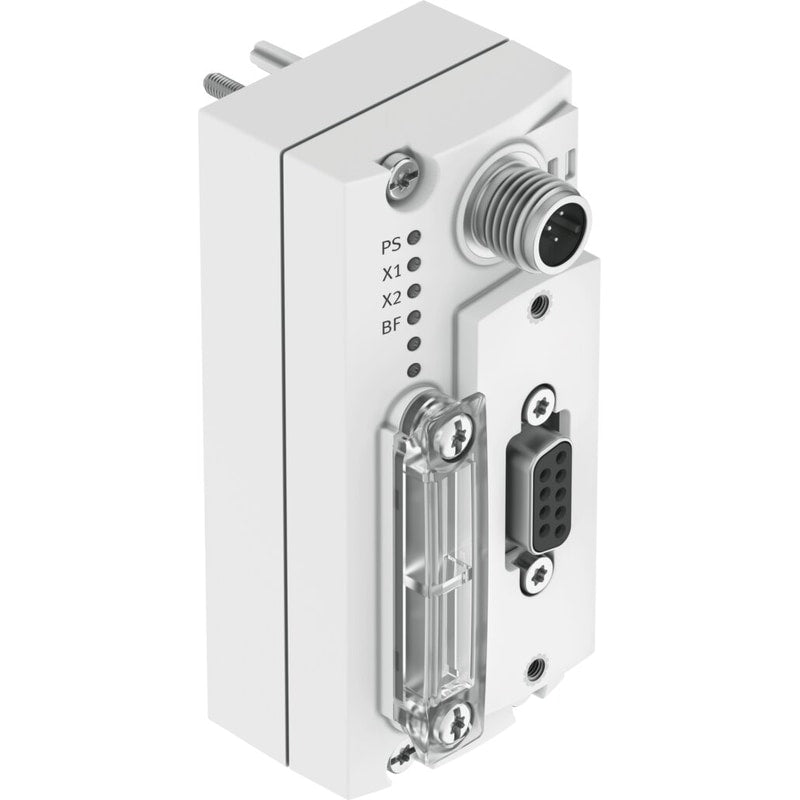

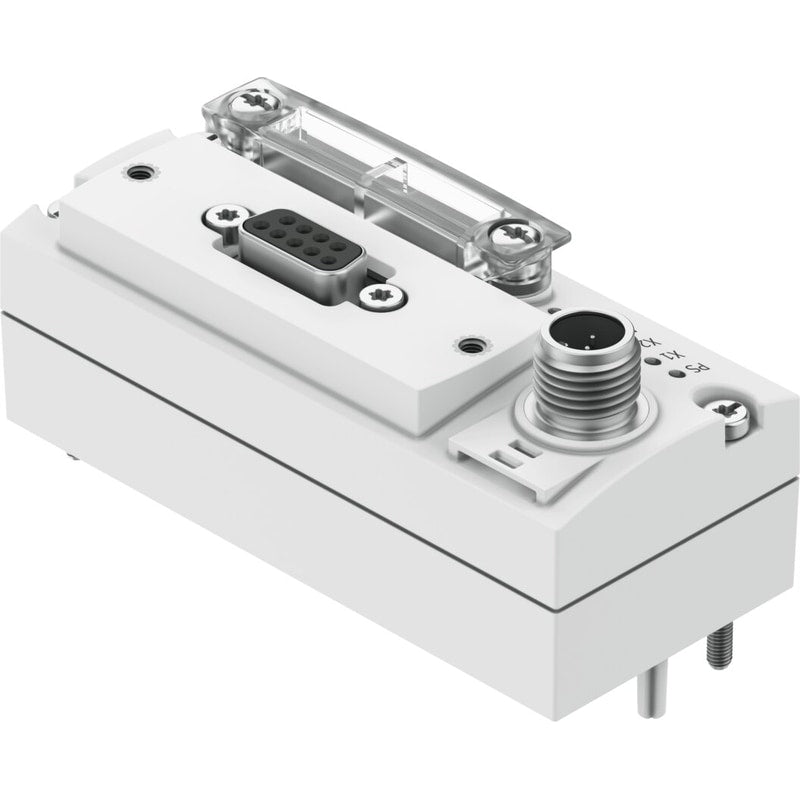

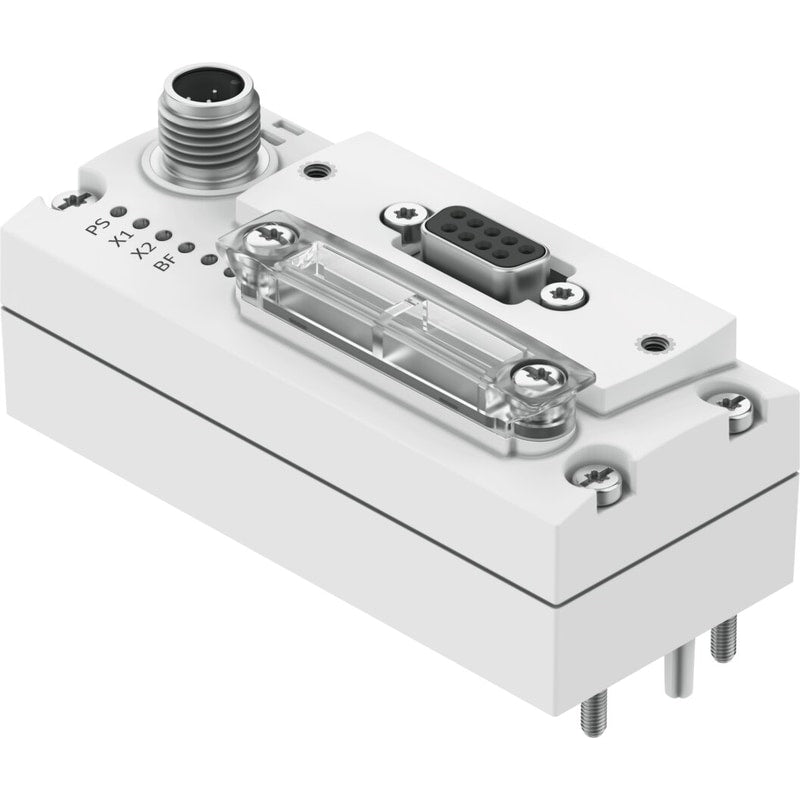

Bus node
CTEU-PB-EX1C
8107588
GTIN 4052568582425
Vendor Festo
- Protocol
- Profibus DP
- DC operating voltage range
- 18 V - 30 V
- Intrinsic current consumption at nominal operating voltage
- Typ. 100 mA
- Fieldbus interface, protocol
- PROFIBUS DP
- Degree of protection
- IP65 - IP67
Regular price
$553.49
Unit price
CTEU-PB-EX1C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CTEU-PB-EX1C
Regular price
$553.49
Unit price
CTEU-PB-EX1C is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 40 mm x 91 mm x 50 mm |
|---|---|
| Width dimension | 40 mm |
| Type of mounting | On electrical interface On electrical sub-base |
| Product weight | 90 g |
| Protocol | Profibus DP |
| Fieldbus interface, type | PROFIBUS |
| Fieldbus interface, protocol | PROFIBUS DP |
| Fieldbus interface, function | Bus connection, incoming/forwarding |
| Fieldbus interface, connection type | Socket |
| Fieldbus interface, connection technology | Sub-D |
| Fieldbus interface, number of poles/wires | 9 |
| Fieldbus interface, connection pattern | 00995638 |
| Note on fieldbus interface | Plug/socket M12x1 B-coded, 5-pin, degree of protection: IP65 Optional connection technology with accessories: |
| Fieldbus interface, galvanic isolation | yes |
| Fieldbus interface, transmission rate | 1.5 Mbit/s 12 Mbit/s 187.5 kbit/s 19.2 kbit/s 500 kbit/s 9.6 kbit/s 93.75 kbit/s |
| Internal cycle time | 1 ms per 1 byte of user data |
| Max. address capacity inputs | 16 byte |
| Max. address capacity outputs | 16 byte |
| Power supply, function | Electronics and load |
| Power supply, type of connection | Plug |
| Power supply, connection technology | M12x1, A-coded as per EN 61076-2-101 |
| Power supply, number of pins/wires | 5 |
| Power supply, connection pattern | 00995383 |
| Diagnostics | Communication error System diagnostics Undervoltage |
| Parameterization | Diagnostic behavior Fail-safe response |
| Additional functions | Emergency message System status via diagnostic test |
| Configuration support | GSD file |
| Control elements | DIL switch |
| LED display (product-specific) | PS: operating voltage for electronics and load supply X1: module system status at I-Port 1 X2: module system status at I-Port 2 |
| LED display (bus-specific) | BF: bus fault |
| DC operating voltage range | 18 V ... 30 V |
| Nominal operating voltage DC | 24 V |
| Intrinsic current consumption at nominal operating voltage | Typ. 100 mA |
| Max. power supply | 4 A |
| Certification | RCM compliance mark |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Storage temperature | -20 °C ... 70 °C |
| Degree of protection | IP65 IP67 |
| Note on degree of protection | In mounted state Unused connections sealed |
| Ambient temperature | -5 °C ... 50 °C |
| Housing material | PA |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
