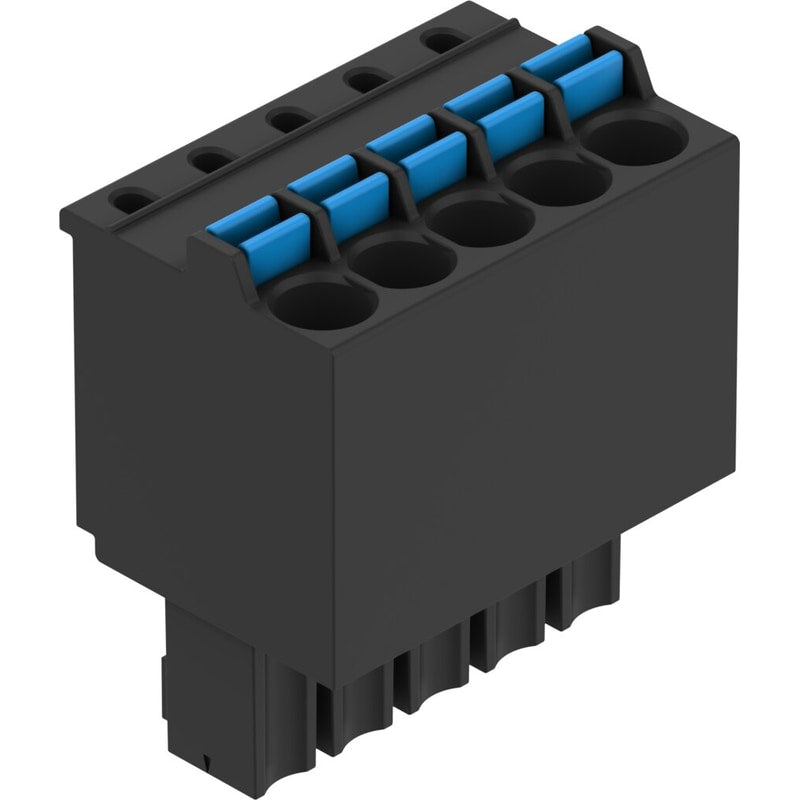

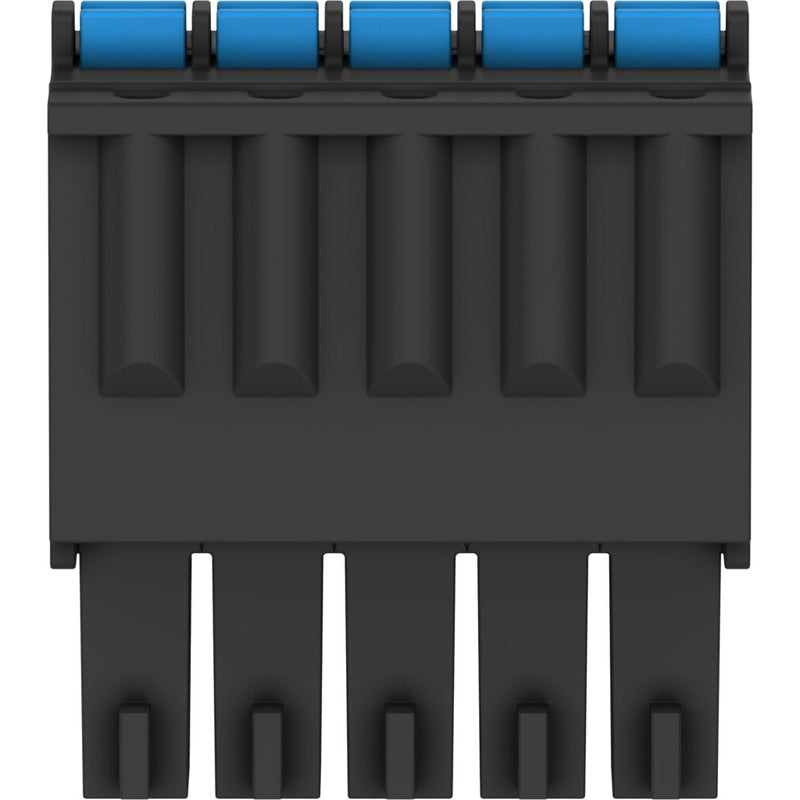

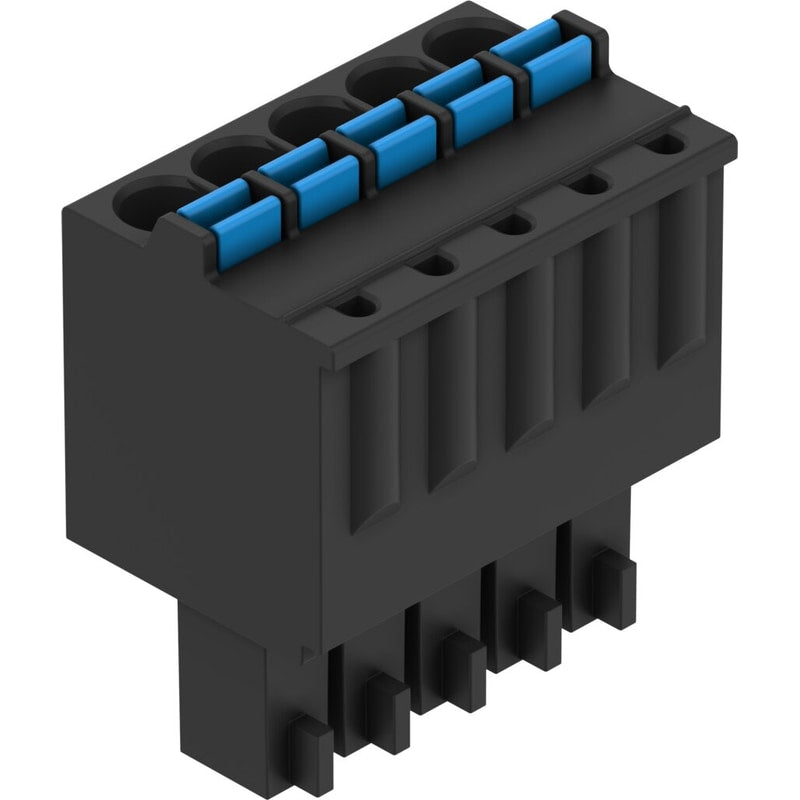

Terminal strip
NECC-L8G5-C1
8106756
GTIN 4052568458621
Vendor Festo
Regular price
$15.01
Unit price
NECC-L8G5-C1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NECC-L8G5-C1
Regular price
$15.01
Unit price
NECC-L8G5-C1 is backordered and will ship as soon as it is back in stock.
| Cable outlet | Straight |
|---|---|
| Nominal conductor cross section | AWG28 - 16 |
| Shield | no |
| Type code | NECC |
| Product weight | 3.8 g |
| Pack size | 1 |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, connection technology | Connection diagram L8 |
| Electrical connection 1, number of pins/wires | 5 |
| Electrical connection 1, type of mounting | Inserted |
| Electrical connection for input 1, connection pattern | 00997297 |
| Electrical connection 2, connection technology | Spring-loaded terminal |
| DC operating voltage range | 0 V ... 300 V |
| Current rating at 40°C | 8 A |
| Surge resistance | 1.6 kV |
| Degree of protection | IP20 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -40 °C ... 115 °C |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | PA |
| Housing colour | Black |
