Proximity sensors

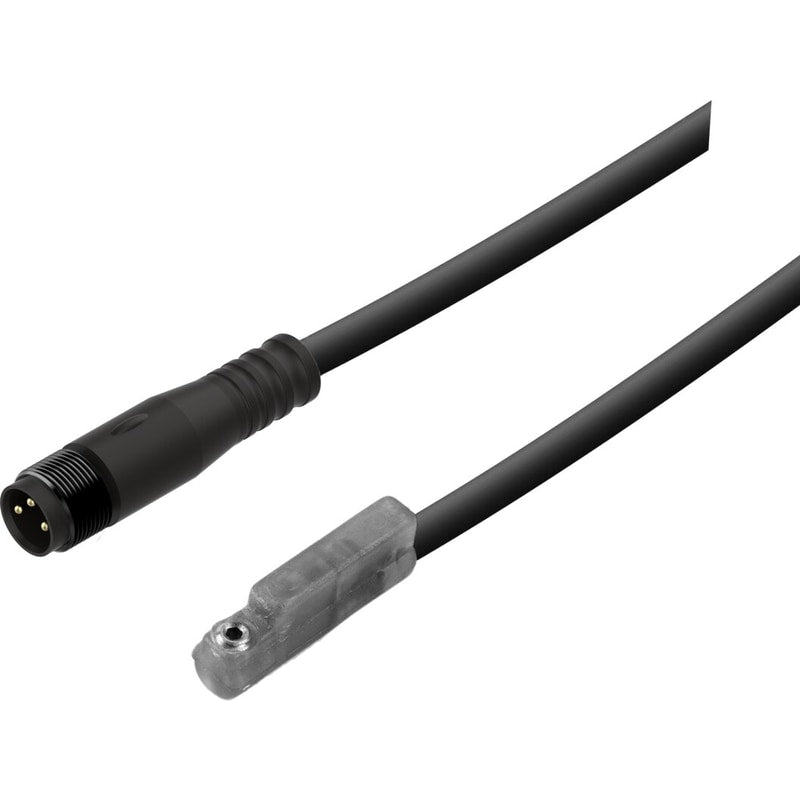

SDBF-FAS-1L-NU-K-0.5-N-M8
8106574
GTIN 4052568302238
Vendor Festo
- Design
- for round slot
- DC operating voltage range
- 6 V - 24 V
- Max. switching capacity DC
- 4.8 W
- Switching output
- NPN
Regular price
$61.97
Unit price
SDBF-FAS-1L-NU-K-0.5-N-M8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SDBF-FAS-1L-NU-K-0.5-N-M8
Regular price
$61.97
Unit price
SDBF-FAS-1L-NU-K-0.5-N-M8 is backordered and will ship as soon as it is back in stock.
| Type code | SDBF |
|---|---|
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, connection type | Cable with socket |
| Electrical connection 1, number of pins/wires | 3 |
| Design | for round slot |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Measured variable | Position |
| Measuring principle | Magneto-resistive |
| Ambient temperature | -20 °C ... 80 °C |
| Switching output | NPN |
| Switching element function | N/O contact |
| On time | 0.004 ms |
| Max. output current | 200 mA |
| Max. switching capacity DC | 4.8 W |
| Voltage drop | 1 V |
| Short-circuit protection | yes |
| DC operating voltage range | 6 V ... 24 V |
| Reverse polarity protection | yes |
| Connection outlet orientation | Longitudinal |
| Color cable sheath | Black |
| Material of cable sheath | PVC |
| Type of mounting | Screwed tightlyCan be inserted in slot lengthwise |
| Mounting position | Any |
| Housing colour | Transparent |
| Switching status indication | LED |
| Ambient temperature with flexible cable installation | -20 °C ... 80 °C |
| Degree of protection | NEMA 6 |
