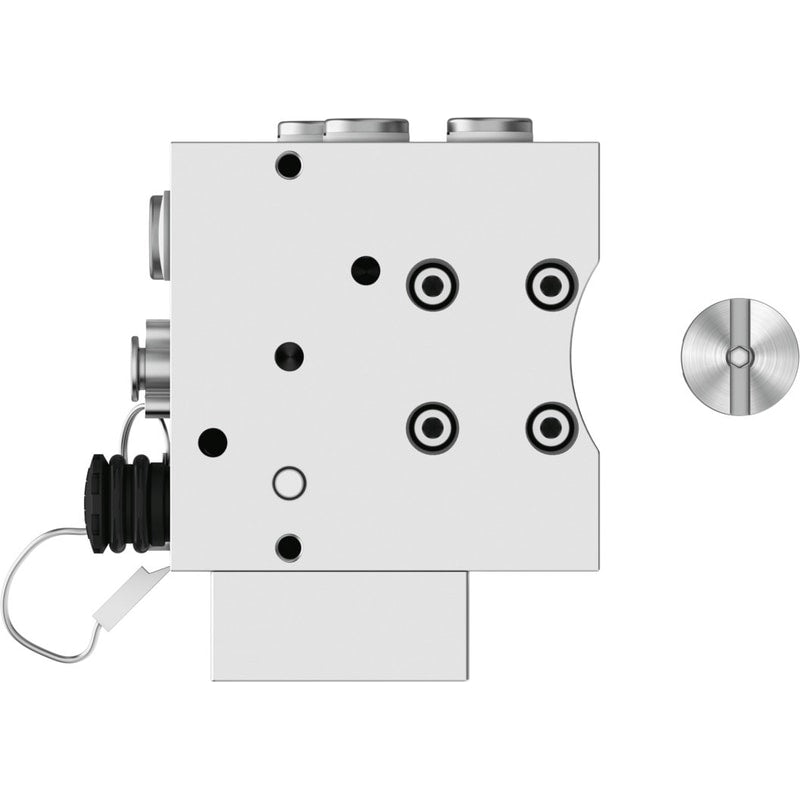

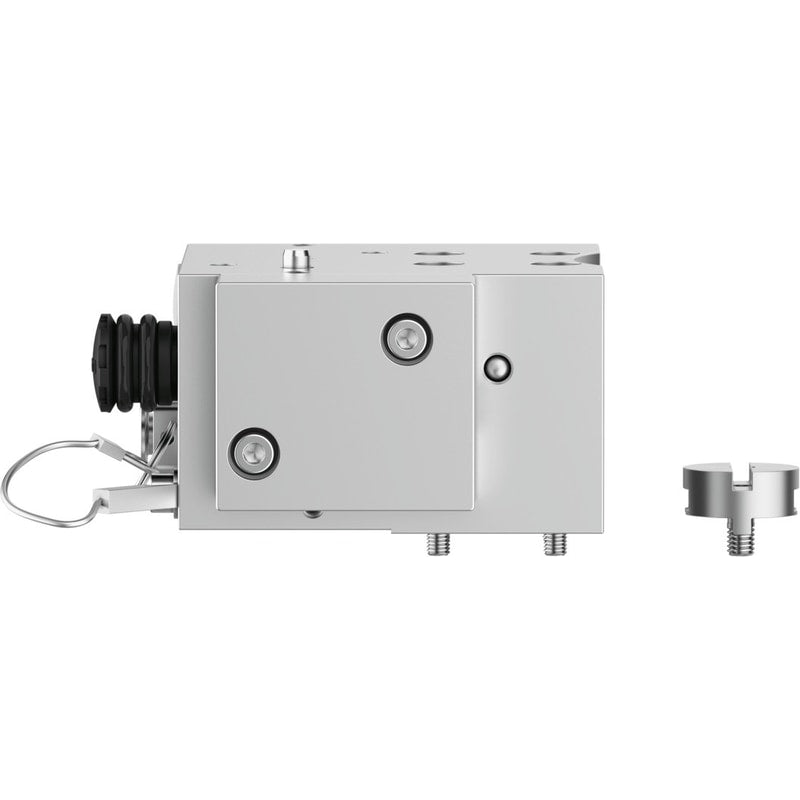

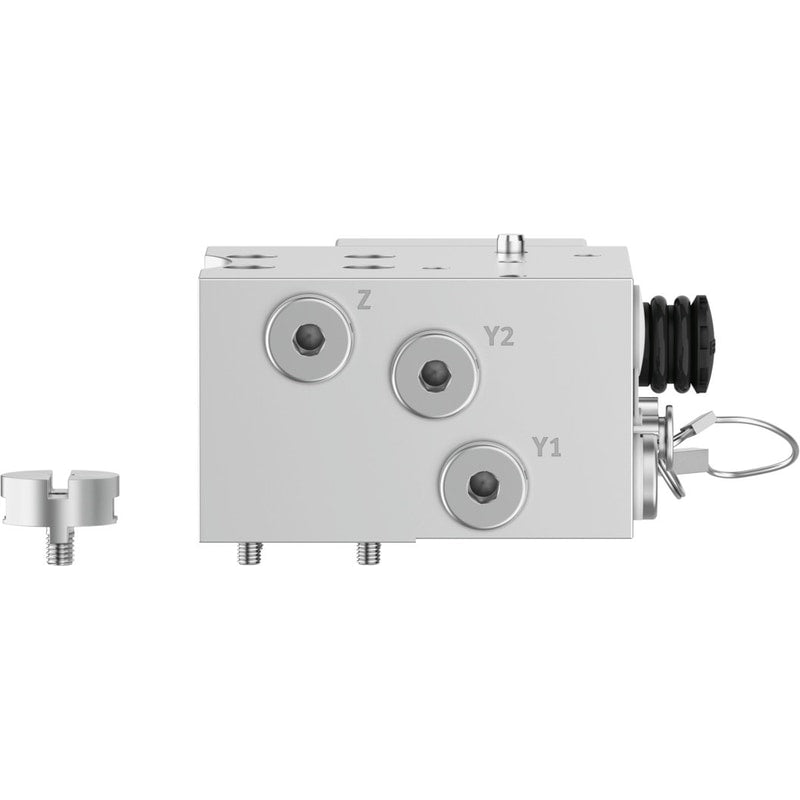

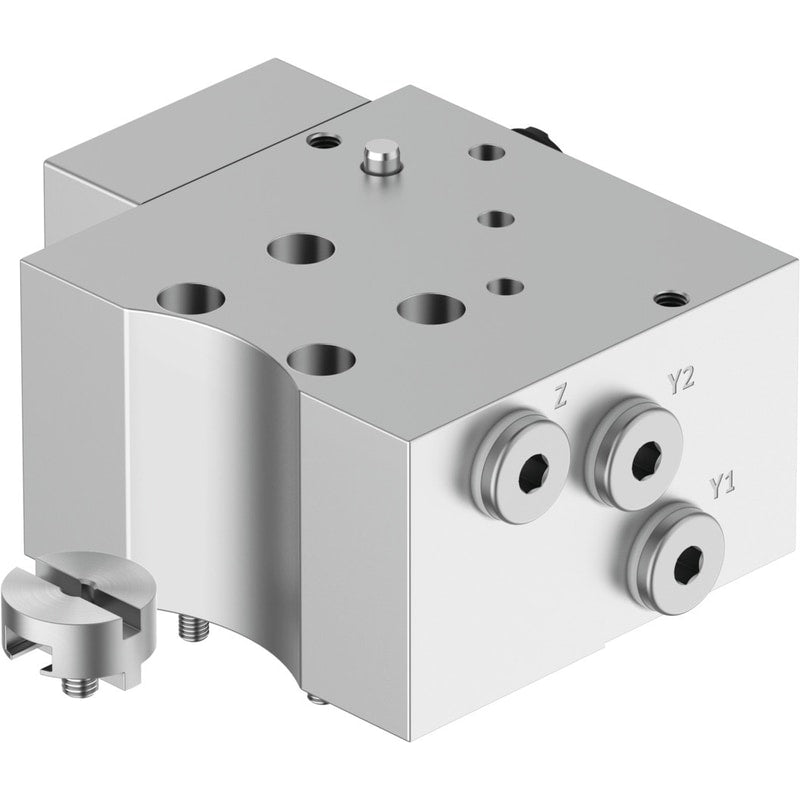

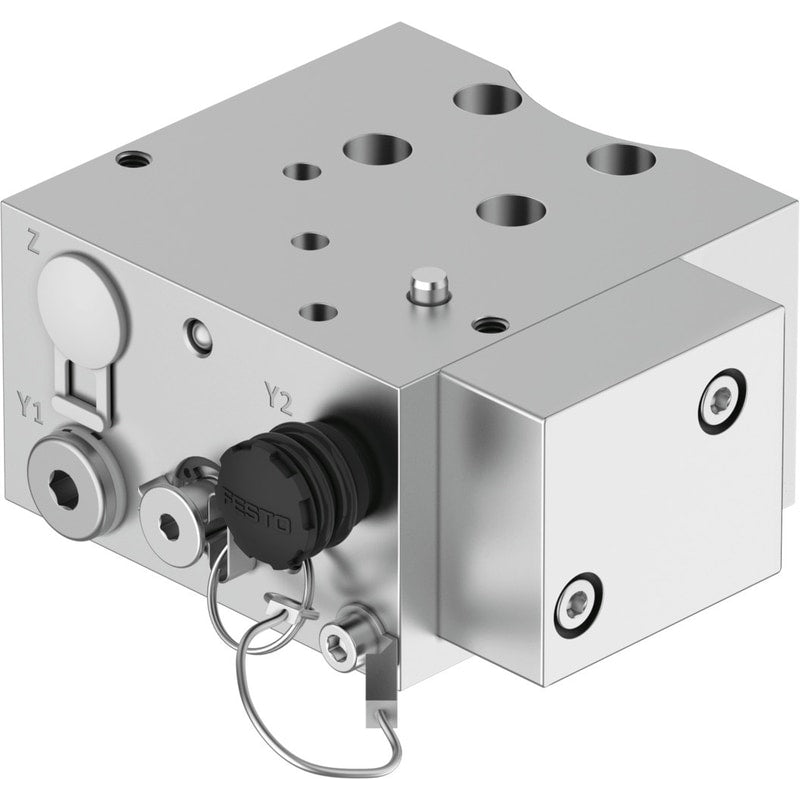

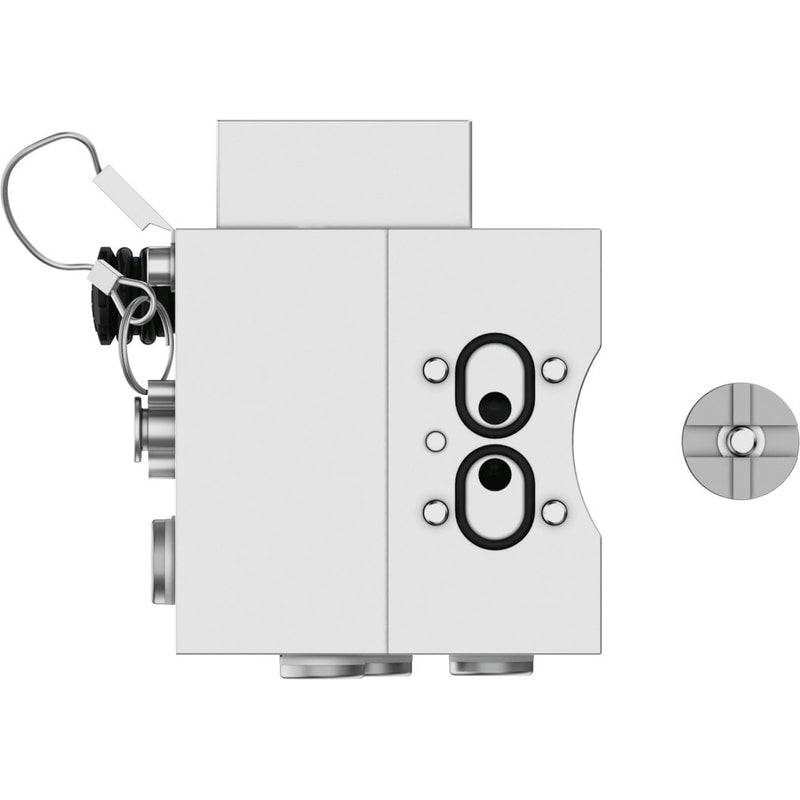

Control plate
DADG-FM-F9-VDE2
8104802
GTIN 4052568461188
Vendor Festo
Regular price
$570.02
Unit price
DADG-FM-F9-VDE2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DADG-FM-F9-VDE2
Regular price
$570.02
Unit price
DADG-FM-F9-VDE2 is backordered and will ship as soon as it is back in stock.
| Operating pressure | 0.2 MPa ... 0.8 MPa |
|---|---|
| Type code | DADG |
| Based on norm | VDI/VDE 3845 (NAMUR) |
| Mounting position | Any |
| Operating pressure | 2 bar ... 8 bar |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Dew point min. 10 °C below the ambient and medium temperatureOperation with oil lubrication possible (required for further use) |
| Ambient temperature | -20 °C ... 80 °C |
| Product weight | 1340 g |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant |
| Adapter material | High-alloy stainless steel |
| Seals material | NBR |
| Threaded pin material | High-alloy stainless steel |
| Plate material | Wrought aluminum alloy, anodized |
| Material of screws | High-alloy stainless steel |
