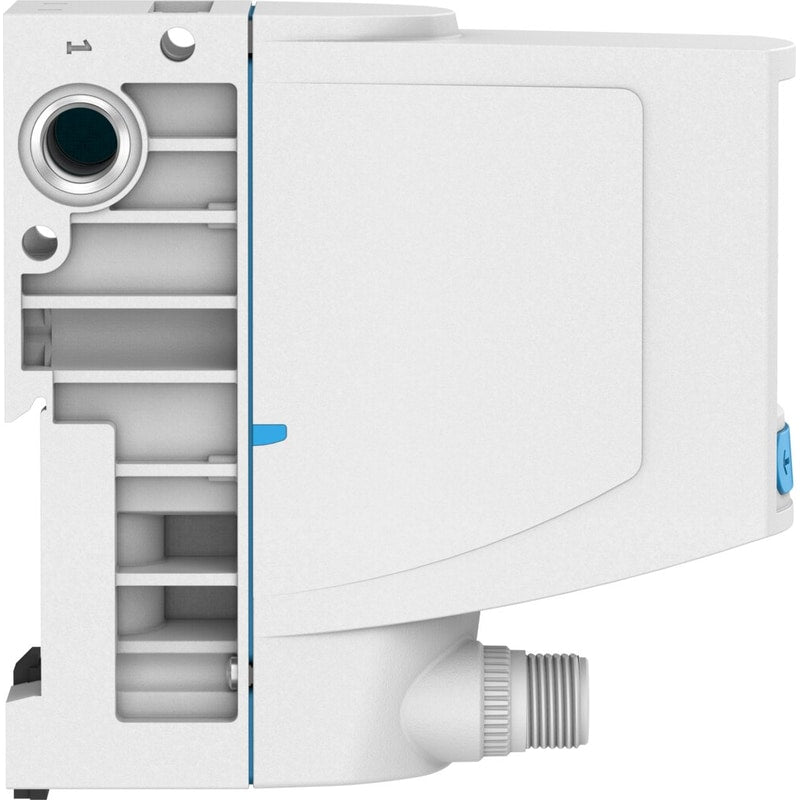

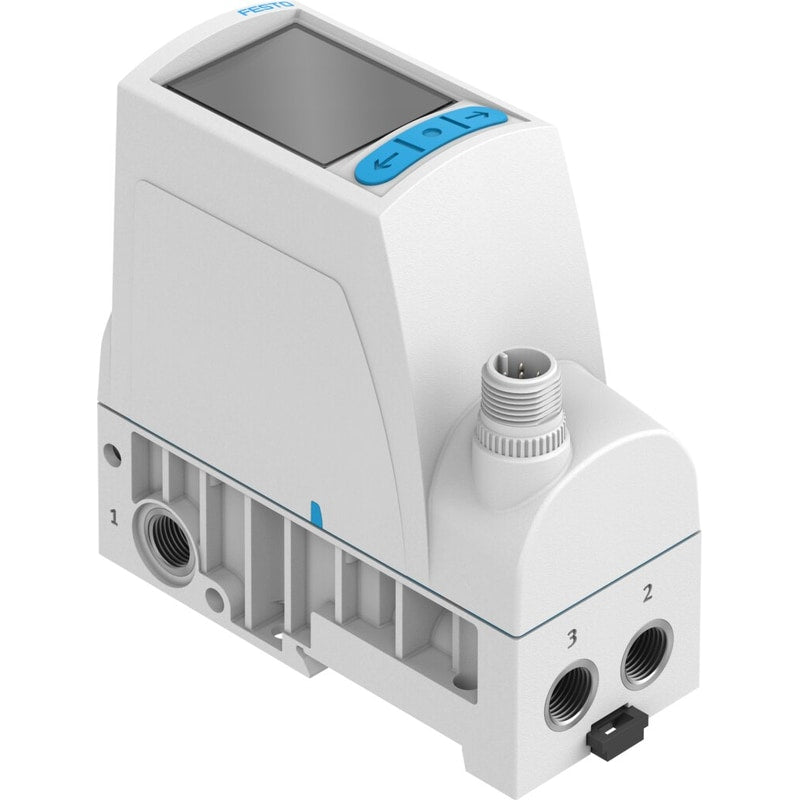

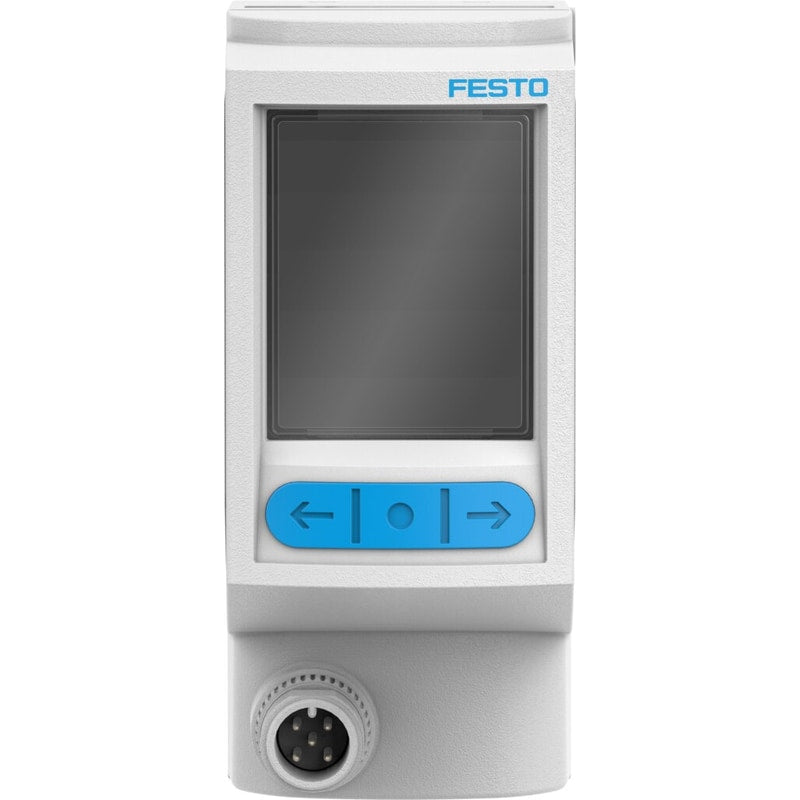

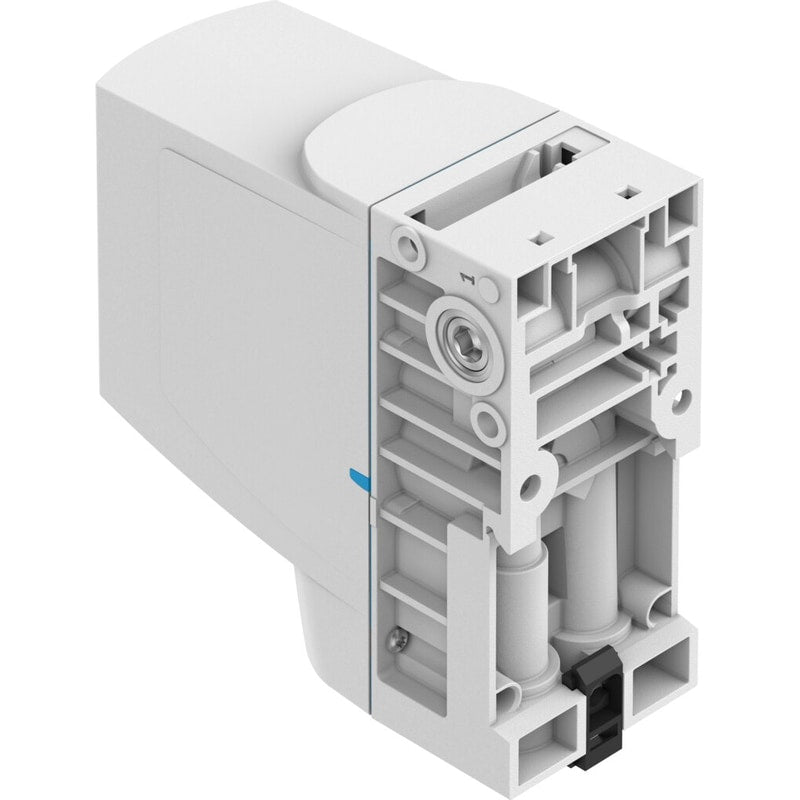

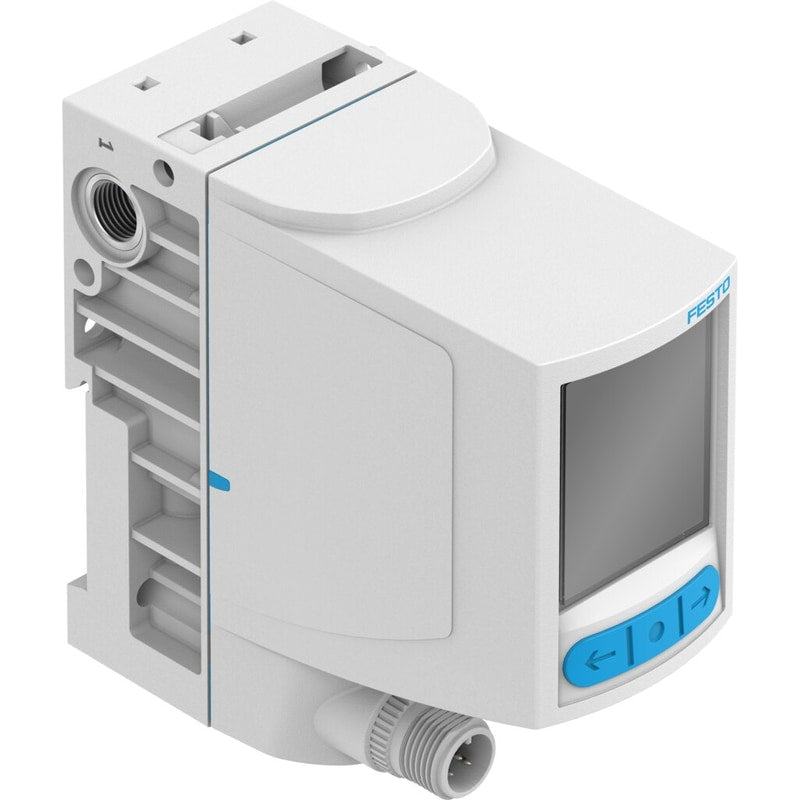

Proportional pressure control valve
VPPI-5L-3-G18-1V1H-V1-S1D
8104673
GTIN 4052568459703
Vendor Festo
- Valve function
- 3-way proportional pressure control valve
- Pneumatic connection 1
- G1/8
- Pressure regulation range
- -1 bar - 1 bar
- Operating pressure
- 1 bar - 2 bar
- DC operating voltage range
- 21.6 V - 27.6 V
Regular price
$1,124.90
Unit price
VPPI-5L-3-G18-1V1H-V1-S1D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPPI-5L-3-G18-1V1H-V1-S1D
Regular price
$1,124.90
Unit price
VPPI-5L-3-G18-1V1H-V1-S1D is backordered and will ship as soon as it is back in stock.
| KC characters | KC EMC |
|---|---|
| Nominal width pressurization | 5 mm |
| Seals material | HNBRPTFE |
| Flow direction | Non-reversible |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, function | Actual value outputSetpoint inputPower supply |
| Setpoint input | 0 - 10 VPWMDigital |
| Application note | The product is suitable for industrial purposes only. Radio interference suppression measures may be required in residential areas. |
| Display size | 1.77" |
| Electrical connection for input 1, connection pattern | 00994083 |
| Display resolution | 128x160 pixels |
| Electrical connection 1, connection type | Plug |
| Nominal altitude of use above sea level | < 3000 m NHN |
| Max. cable length | 30 m |
| Dimensions W x L x H | 42.2 mm x 95.3 mm x 94.3 mm |
| Climatic category | 3K3 as per EN 60721 |
| Precision analog output in ± %FS | 1 %FS |
| Min. load resistance of voltage output | 2 kOhm |
| Max. tightening torque of pneumatic fitting | 8.5 Nm |
| Total leakage | 5 l/h |
| Storage temperature | -20 °C ... 70 °C |
| Electrical connection 1, tightening torque | 1.5 Nm |
| Electrical connection 1, number of pins/wires | 5 |
| Input resistance | 100 kOhm |
| Max. output current | 25 mA |
| Inlet pressure 3 | -1 bar ... 0 bar |
| Overall accuracy | 1.1 %FS |
| Linearity | 0.9 %FS |
| Hysteresis | 0.4 %FS |
| Reproducibility | 0.4 %FS |
| Burst pressure | 40 bar |
| Sound power level | 62.5 dB(A) |
| Sound power level at a distance of 1 m | 51.9 dB(A) |
| Inlet pressure 1 MPa | 0 MPa ... 0.6 MPa |
| Nominal current | 0.15 A |
| Inlet pressure 3 | -0.1 MPa ... 0 MPa |
| Pressure regulation range MPa | -0.1 MPa ... 0.1 MPa |
| Standard nominal flow rate 2-3 | 20 l/min |
| Exhaust nominal width | 5 mm |
| Type code | VPPI |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Design | Poppet valve with return spring |
| Short-circuit protection | For all electrical connections |
| Safety instructions | Safety position VPPI, normally closed |
| Symbol | 00997299 |
| Reverse polarity protection | for all electrical connections |
| Reset method | Mechanical spring |
| Type of control | Direct |
| Valve function | 3-way proportional pressure control valve |
| Display type | Color TFT |
| Operating pressure | 1 bar ... 2 bar |
| Pressure regulation range | -1 bar ... 1 bar |
| Inlet pressure 1 | 0 bar ... 6 bar |
| Standard nominal flow rate | 150 l/min |
| DC operating voltage range | 20.4 V ... 27.6 V |
| Max. current consumption | 525 mA |
| Max. electrical power consumption | 14.5 W |
| Nominal operating voltage DC | 24 V |
| Switching output | Push-pull |
| Analog output signal range | 0 - 10 V |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 0 °C ... 50 °C |
| Degree of protection | IP65 |
| Ambient temperature | 0 °C ... 50 °C |
| Certification | RCM compliance mark |
| Product weight | 370 g |
| Temperature coefficient | 0.02 %/K |
| Type of mounting | With through-hole for M4 screwWith H-rail |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 |
| Note on materials | RoHS-compliant |
| Housing material | PA-reinforced |
