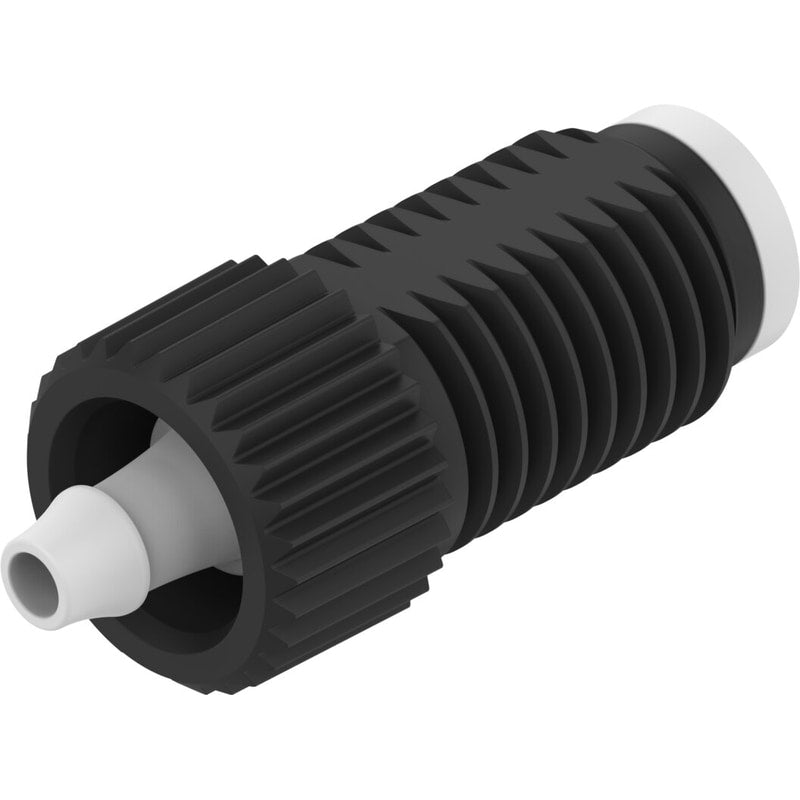

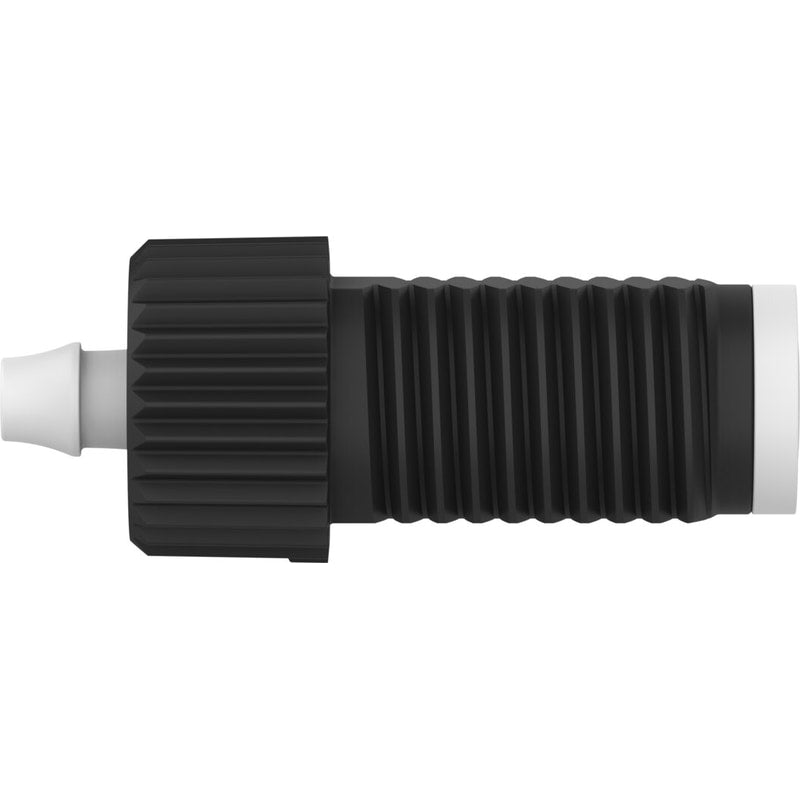

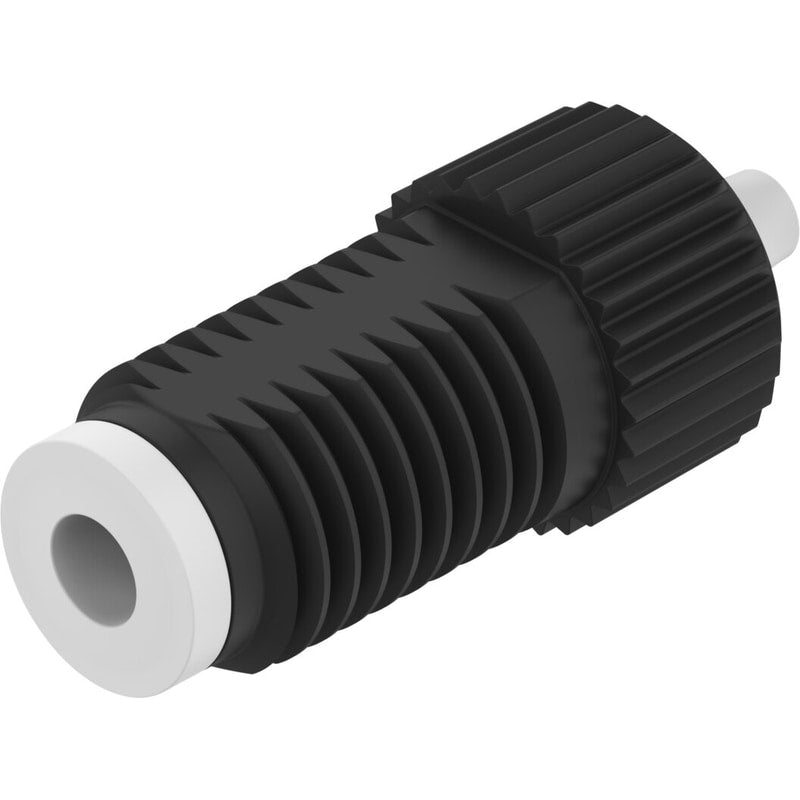

Fitting
NLFA-D-U14-B2.1-PP-P10
8104289
GTIN 4052568578640
Vendor Festo
- Fluid connector
- UNF1/4-28
- Fluid connection 2
- for tubing I.D. 2.1 mm
- Design
- Straight design
- Temperature of medium
- 0 °C - 35 °C
- Structural design
- Tubing mount via barbed connector
Regular price
$8.37
Unit price
NLFA-D-U14-B2.1-PP-P10 Fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NLFA-D-U14-B2.1-PP-P10
Regular price
$8.37
Unit price
NLFA-D-U14-B2.1-PP-P10 Fitting is backordered and will ship as soon as it is back in stock.
| Pack size | 10 |
|---|---|
| Structural design | Tubing mount via barbed connector |
| Design | Straight design |
| Size | ø 8 mm |
| Fluid connector | UNF1/4-28 |
| Fluid connection 2 | for tubing I.D. 2.1 mm |
| Medium | Liquid media Gaseous media |
| Information on medium | Observe resistance of materials that come into contact with media |
| Operating pressure for entire temperature range | -0.075 MPa ... 0.4 MPa |
| Operating pressure for entire temperature range | -0.75 bar ... 4 bar |
| Operating pressure for entire temperature range | -10.875 psi ... 58 psi |
| Temperature of medium | 0 °C ... 35 °C |
| Ambient temperature | 0 °C ... 35 °C |
| Storage temperature | -20 °C ... 70 °C |
| Sealing principle | Hard |
| Mounting position | Any |
| Nominal tightening torque | 0.15 Nm |
| Tolerance for nominal tightening torque | ± 15% |
| Product weight | 0.5 g |
| Materials in contact with the media | PP |
| Material of screwed trunnion | PA-reinforced |
| Note on materials | RoHS-compliant |
| For use in the food industry | See supplementary material information |
| LABS conformity | VDMA24364 zone III |
| Application note | See application note (available on the support portal at festo.com) |
