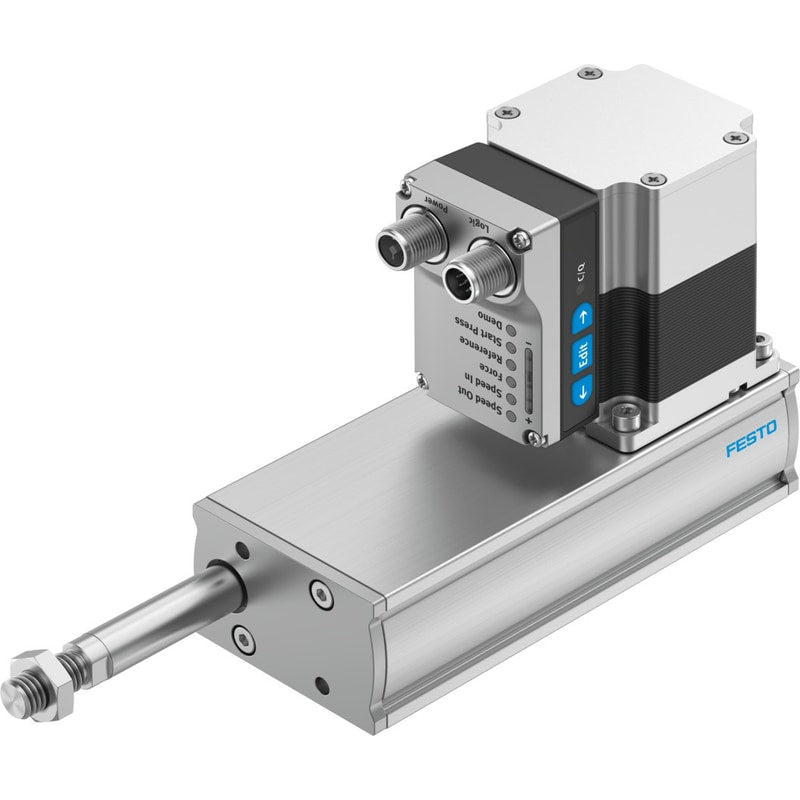

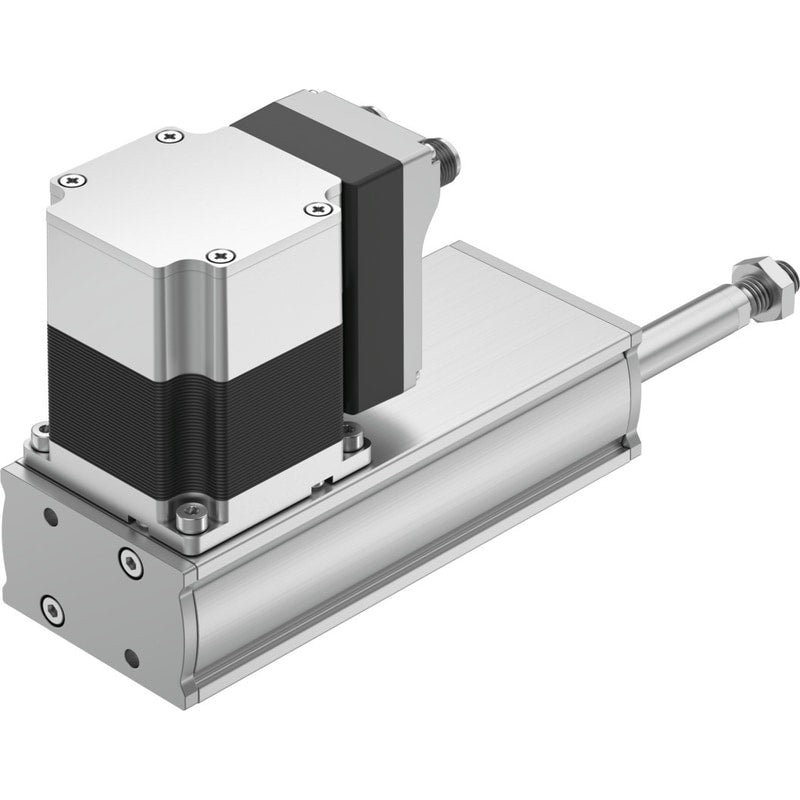

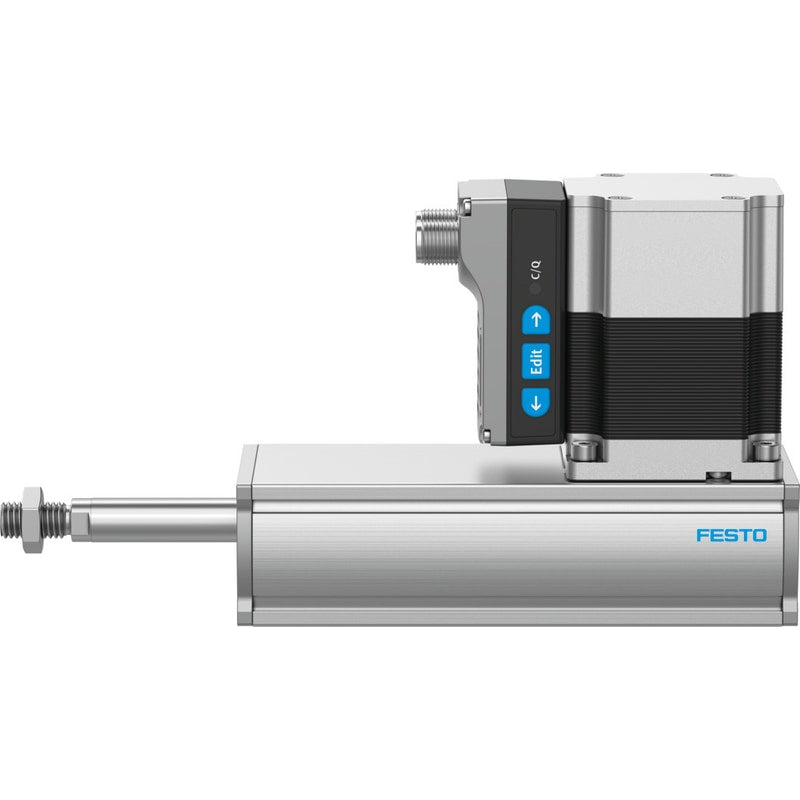

Electric cylinder unit
EPCE-TB-60-80-FL-ST-M-H1-PLK-AA
8102167
GTIN 4052568551780
Vendor Festo
- Size
- 60
- Max. feed force Fx
- 150 N
- Repetition accuracy
- ±0.05 mm
- Stroke
- 80 mm
Regular price
$970.11
Unit price
EPCE-TB-60-80-FL-ST-M-H1-PLK-AA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EPCE-TB-60-80-FL-ST-M-H1-PLK-AA
Regular price
$970.11
Unit price
EPCE-TB-60-80-FL-ST-M-H1-PLK-AA is backordered and will ship as soon as it is back in stock.
| KC characters | KC EMC |
|---|---|
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Max. cable length | 15 m outputs 15 m inputs 20 m for IO-Link® operation |
| Display | LED |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Logic input specification | Based on IEC 61131-2, type 1 |
| Input switching logic | PNP (positive switching) |
| Ready status indication | LED |
| Parameterization interface | IO-Link® User interface |
| Additional functions | User interface Integrated end-position sensing |
| Characteristics of logic input | Configurable Not galvanically isolated |
| Note on ambient temperature | Above an ambient temperature of 30°C, the power must be reduced by 2% per K. |
| Switching logic at outputs | PNP (positive switching) |
| Power supply, connection pattern | 00995989 |
| Logic interface, connection pattern | 00992264 |
| Characteristics of digital logic outputs | Configurable Not galvanically isolated |
| Power supply, connection technology | M12x1, T-coded as per EN 61076-2-111 |
| Power supply, type of connection | Plug |
| Logic interface, connection technology | M12x1, A-coded as per EN 61076-2-101 |
| Logic interface, connection type | Plug |
| Max. current of digital logic outputs | 100 mA |
| DC nominal voltage | 24 V |
| Number of digital logic outputs 24 V DC | 2 |
| Number of digital logic inputs | 2 |
| Logic interface, number of poles/wires | 8 |
| Power supply, number of pins/wires | 4 |
| Product weight | 1710 g |
| Max. current consumption | 5300 mA |
| Work range of logic input | 24 V |
| Rotor position sensor resolution | 16 bit |
| Nominal current | 5.3 A |
| IO-Link®, service data contents IN | 32 bit force 32 bit position 32 bit speed |
| IO-Link®, port class | A |
| IO-Link®, process data content IN | 1 bit (state device) 1 bit (state move) 1 bit (state in) 1 bit (state out) |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, process data width IN | 2 Byte |
| IO-Link®, minimum cycle time | 1 ms |
| IO-Link®, process data width OUT | 2 Byte |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, number of ports | 1 |
| IO-Link®, process data content OUT | 1 bit (move in) 1 bit (move out) 1 bit (quit error) |
| IO-Link®, communication mode | COM3 (230.4 kBd) |
| IO-Link®, data memory required | 500 byte |
| Protection class | III |
| IO-Link®, Connection technology | Plug |
| Maintenance interval | Life-time lubrication |
| Toothed belt material | Polychloroprene with glass fiber |
| Drive pinion effective diameter | 10.18 mm |
| Toothed belt elongation | 0.375 % |
| Toothed belt pitch | 2 mm |
| Feed constant | 32 mm/U |
| Size | 60 |
| Stroke | 80 mm |
| Stroke reserve | 0 mm |
| Piston rod thread | M10x1.25 |
| Type code | EPCE |
| Mounting position | Any |
| Piston rod end | External thread |
| Motor type | Stepper motor |
| Position sensing | Motor encoder |
| Design | Electric actuator with toothed belt With integrated drive |
| Symbol | 00997342 |
| Protection against torsion/guide | With plain-bearing guide |
| Homing | Fixed stop block positive Fixed stop block, negative |
| Rotor position sensor | Absolute encoder, single-turn |
| Rotor position sensor measuring principle | Magnetic |
| Max. acceleration | 9 m/s² |
| Max. speed | 0.6 m/s |
| Repetition accuracy | ±0.05 mm |
| Duty cycle | 100% |
| Insulation protection class | B |
| Permissible voltage fluctuations | +/- 15 % |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 60 °C |
| Relative air humidity | 0 - 90 % |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C ... 50 °C |
| Certification | RCM compliance mark |
| Impact energy in the end positions | 0.016 J |
| Max. torque Mx | 0 Nm |
| Max. torque My | 1 Nm |
| Max. torque Mz | 1 Nm |
| Max. feed force Fx | 150 N |
| Guide value for payload, horizontal | 10 kg |
| Guide value for payload, vertical | 5 kg |
| Reference value, running performance | 800 km |
| Moving mass at 0 mm stroke | 188 g |
| Additional weight per 10 mm stroke | 45 g |
| Basic weight with 0 mm stroke | 1350 g |
| Additional moving mass per 10 mm stroke | 9.75 g |
| Type of mounting | With internal thread With accessories |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Cover material | Wrought aluminum alloy, anodized |
| Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel |
