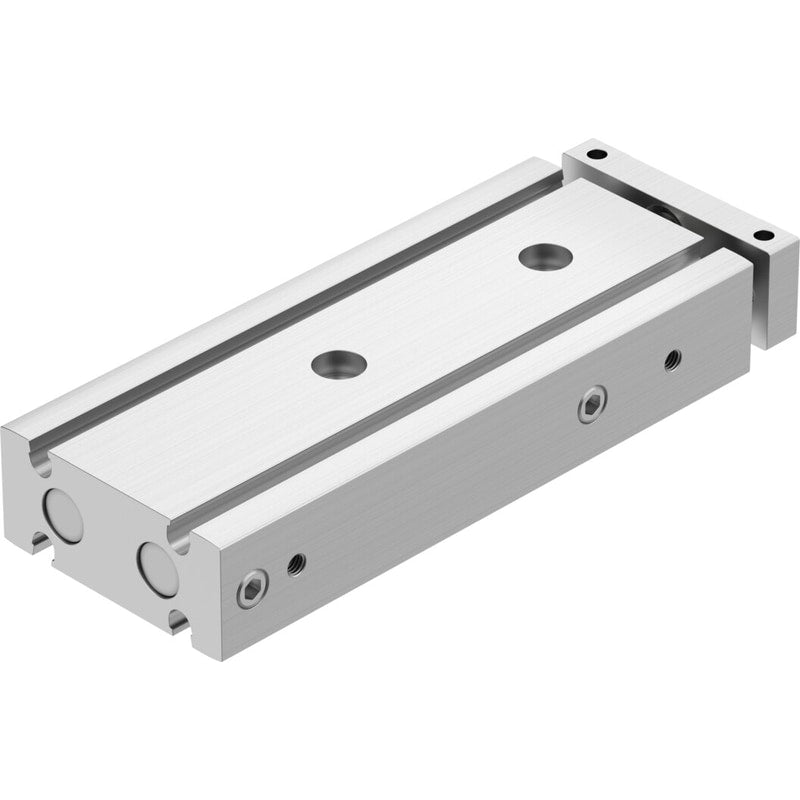

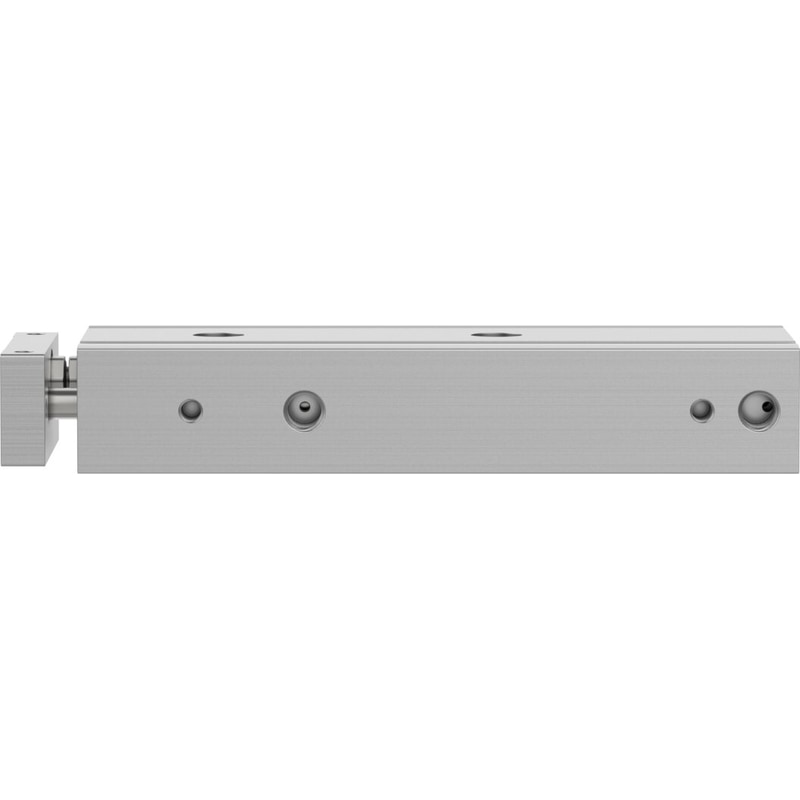

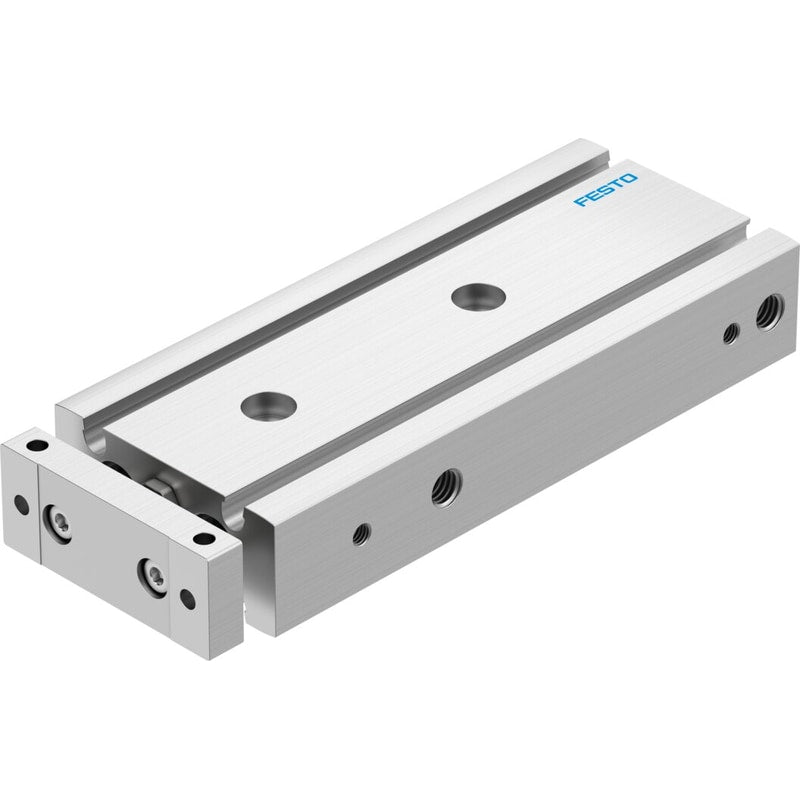

Twin cylinder
DGTZ-GF-6-50-P-A
8100546
GTIN 4052568470357
Vendor Festo
- Piston diameter
- 6 mm
- Theoretical force at 6 bar, advancing
- 34 N
- Stroke
- 50 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Position sensing
- For proximity sensor
Regular price
$81.80
Unit price
DGTZ-GF-6-50-P-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DGTZ-GF-6-50-P-A
Regular price
$81.80
Unit price
DGTZ-GF-6-50-P-A is backordered and will ship as soon as it is back in stock.
| Stroke | 50 mm |
|---|---|
| Adjustable end position range/length | 10 mm |
| Piston diameter | 6 mm |
| Drive unit operating mode | Yoke |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Guide | Sliding guide |
| Structural design | Guide |
| Position sensing | For proximity sensor |
| Symbol | 00991249 |
| Operating pressure | 0.2 MPa ... 0.8 MPa |
| Operating pressure | 2 bar ... 8 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS conformity | VDMA24364 zone III |
| Ambient temperature | -10 °C ... 80 °C |
| Impact energy in the end positions | 0.01 J |
| Max. payload as a function of the stroke at defined distance xs | 0.6 N |
| Theoretical force at 6 bar, retracting | 18.6 N |
| Theoretical force at 6 bar, advancing | 34 N |
| Moving mass | 25 g |
| Product weight | 148 g |
| Pneumatic connection | M5 |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Cover material | Wrought aluminum alloy |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel |
