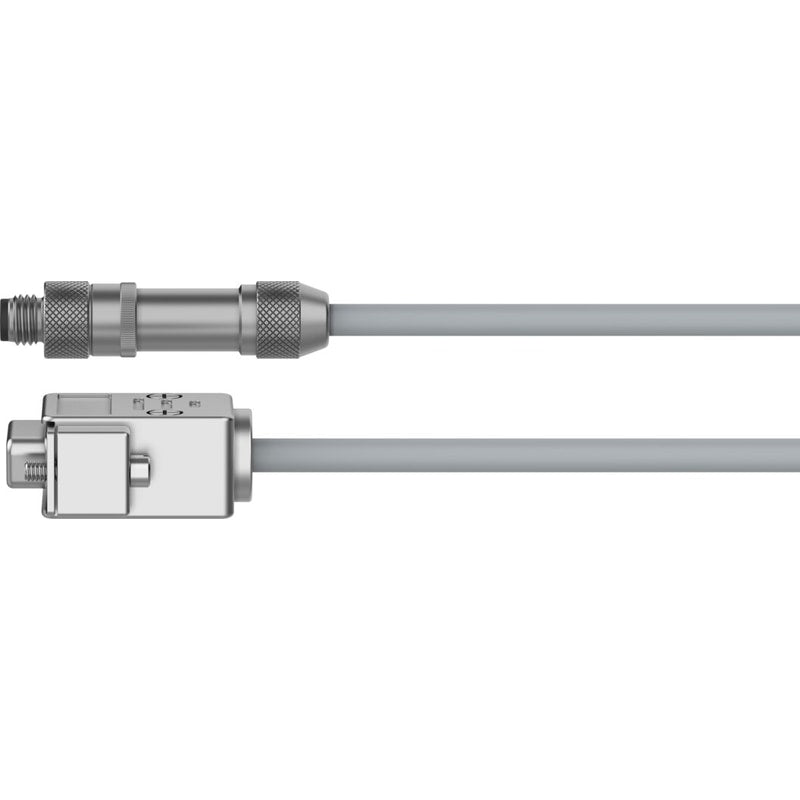

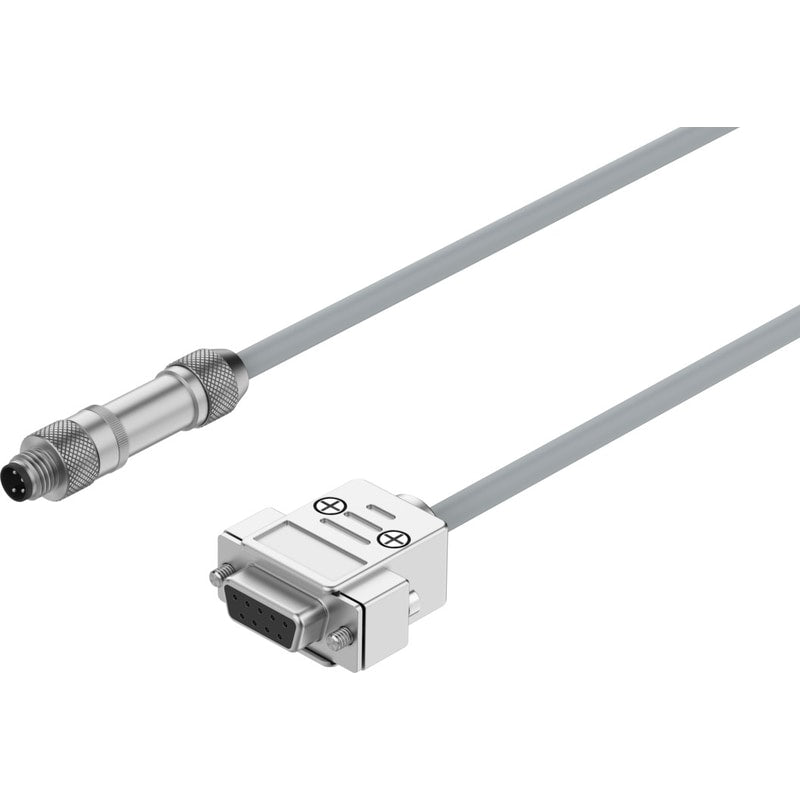

Connecting cable
NEBC-M8G4-ES-1.5-N-SB-S1G9-RS2-S7
8099218
GTIN 4052568458614
Vendor Festo
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 2, connection type
- Socket
- Electrical connection 2, connection technology
- Sub-D
- Cable length
- 1.5 m
Regular price
$105.68
Unit price
NEBC-M8G4-ES-1.5-N-SB-S1G9-RS2-S7 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBC-M8G4-ES-1.5-N-SB-S1G9-RS2-S7
Regular price
$105.68
Unit price
NEBC-M8G4-ES-1.5-N-SB-S1G9-RS2-S7 is backordered and will ship as soon as it is back in stock.
| Type code | NEBC |
|---|---|
| Shield | yes |
| Protocol | RS232 |
| Cable designation | With accessories |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 4 |
| Electrical connection 1, occupied pins/wires | 3 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00995708 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Rectangular |
| Electrical connection 2, connection type | Socket |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | Sub-D |
| Electrical connection 2, number of pins/wires | 9 |
| Electrical connection 2, occupied pins/wires | 8 |
| Electrical connection 2, type of mounting | 2x screw, 4-40 UNC |
| Electrical connection 2, connection pattern | 00995638 |
| DC operating voltage range | 0 V ... 24 V |
| Nominal operating voltage DC | 24 V |
| Current rating at 40°C | 4 A |
| Surge resistance | 1.5 kV |
| Cable length | 1.5 m |
| Cable characteristic | Suitable for energy chains |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 24 mm |
| Bending radius, flexible cable installation | ≥ 47 mm |
| Cable diameter | 4.6 mm |
| Cable diameter tolerance | ± 0.1 mm |
| Cable design | 3 x 0.34 mm² |
| Nominal conductor cross section | 0.34 mm² |
| Degree of protection | IP67 |
| Note on degree of protection | IP20 for Sub-D socketIn mounted state |
| Ambient temperature | 0 °C ... 50 °C |
| Ambient temperature with flexible cable installation | 0 °C ... 50 °C |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Contamination level | 2 |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Black |
| Mounting position | Any |
