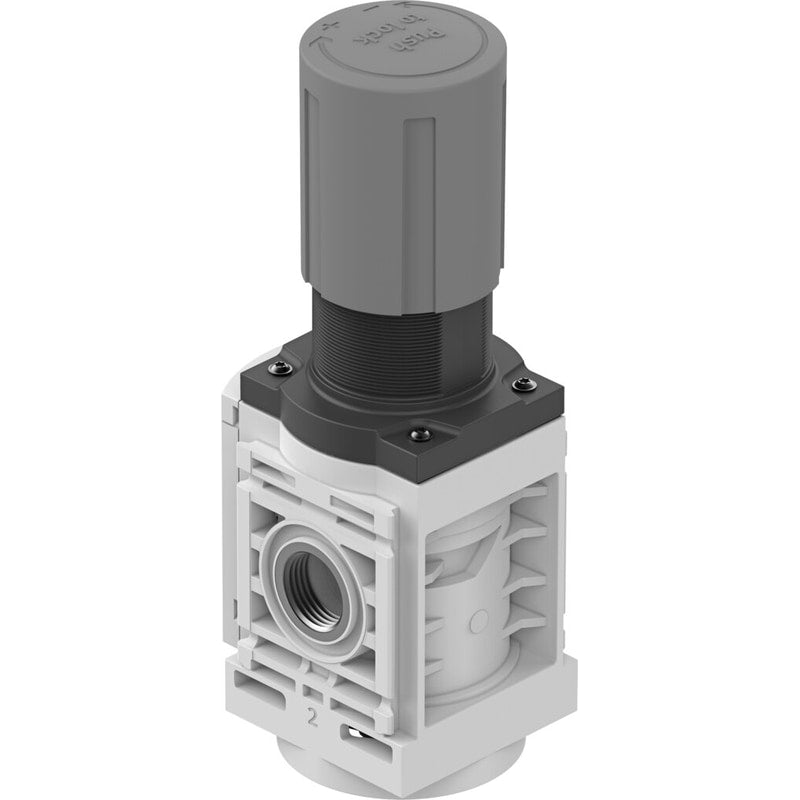

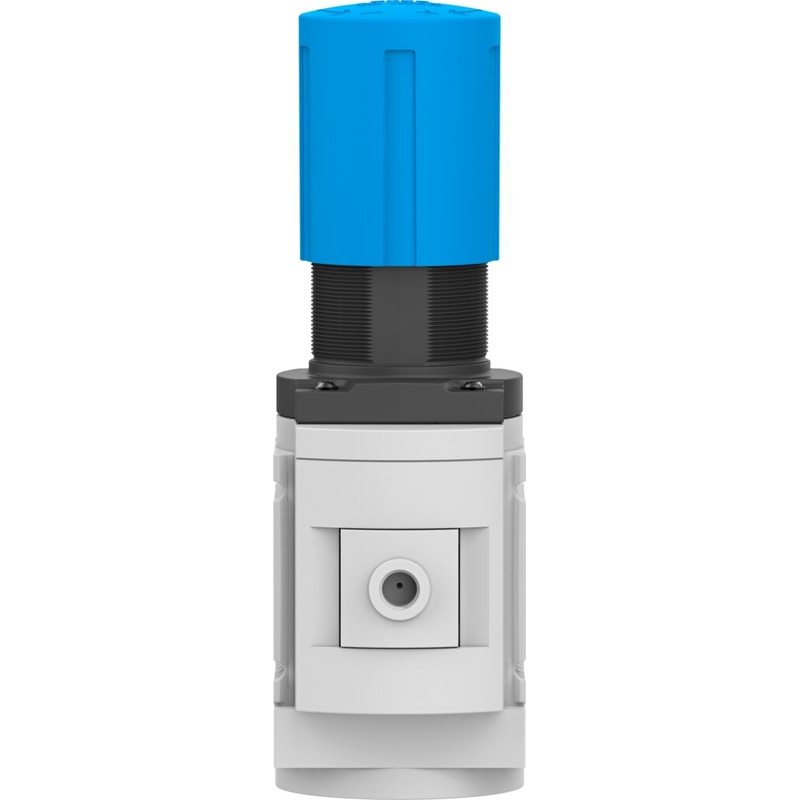

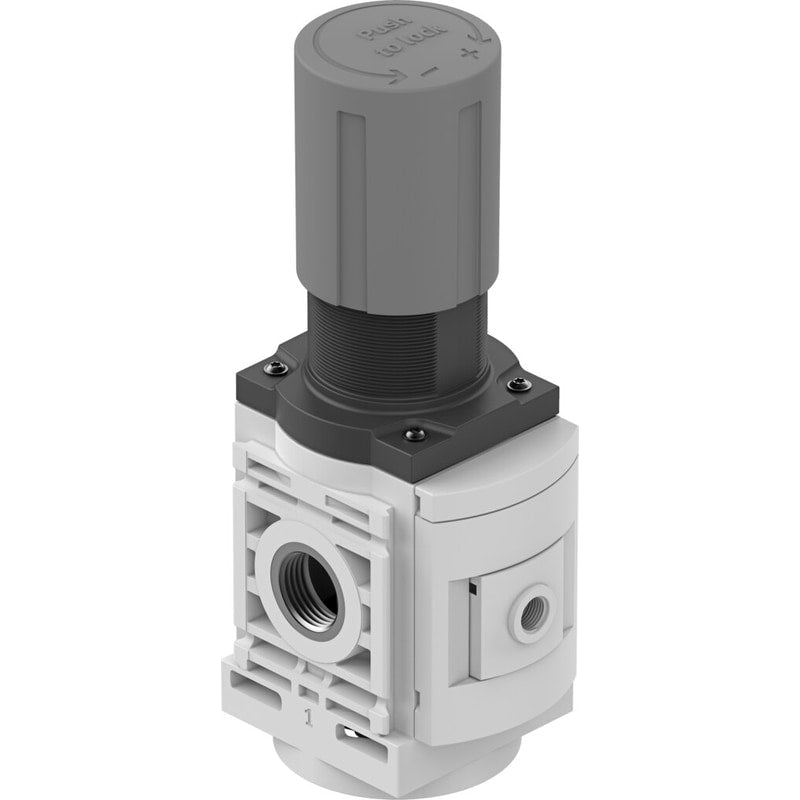

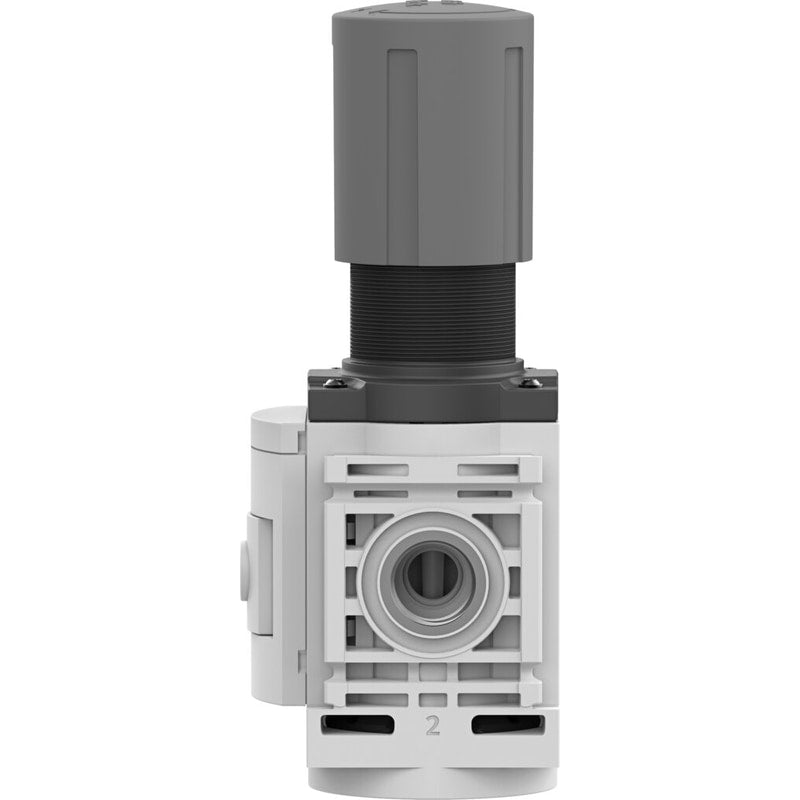

Pressure regulator
MS6-LR-1/2-D6-A8-B
8099203
GTIN 4052568557225
Vendor Festo
- Pneumatic connection 1
- G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 6000 l/min
- Pressure regulation range
- 0.3 bar - 7 bar
- Max. pressure hysteresis
- 0.35 bar
Regular price
$48.90
Unit price
Pressure regulator MS6-LR-1/2-D6-A8-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6-LR-1/2-D6-A8-B
Regular price
$48.90
Unit price
Pressure regulator MS6-LR-1/2-D6-A8-B is backordered and will ship as soon as it is back in stock.
| Size | 6 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with detent |
| Mounting position | Any |
| Structural design | Pressure regulator without pressure gauge |
| Controller function | Outlet pressure constant |
| Symbol | 00991559 |
| Pressure gauge | G1/8 prepared |
| Operating pressure | 0.1MPa |
| Operating pressure | 1bar |
| Pressure regulation range | 0.3bar |
| Max. pressure hysteresis | 0.035MPa |
| Max. pressure hysteresis | 0.35bar |
| Max. pressure hysteresis | 5.075psi |
| Standard nominal flow rate | 6000l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -5°C |
| Temperature of medium | -5°C |
| Ambient temperature | -5°C |
| Product weight | 479g |
| Type of mounting | Optionally: |
| Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 |
| Note on materials | RoHS-compliant |
| Lower cover material | PA |
| Seals material | NBR |
| Rotary knob material | POM |
| Material of spring | High-alloy steel |
| Housing material | PA-reinforced |
| Valve tappet material | POM |
