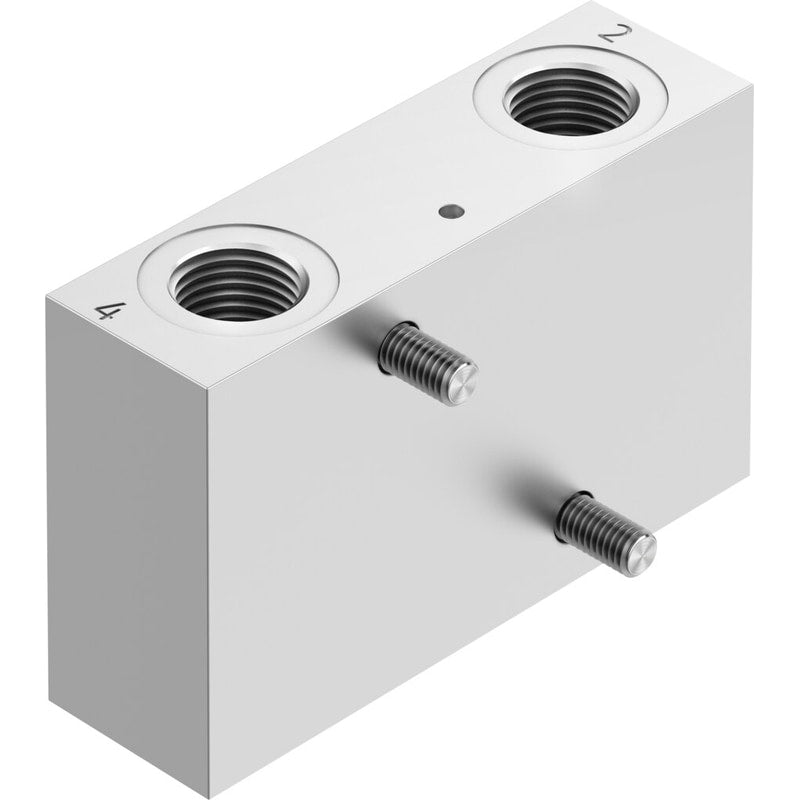

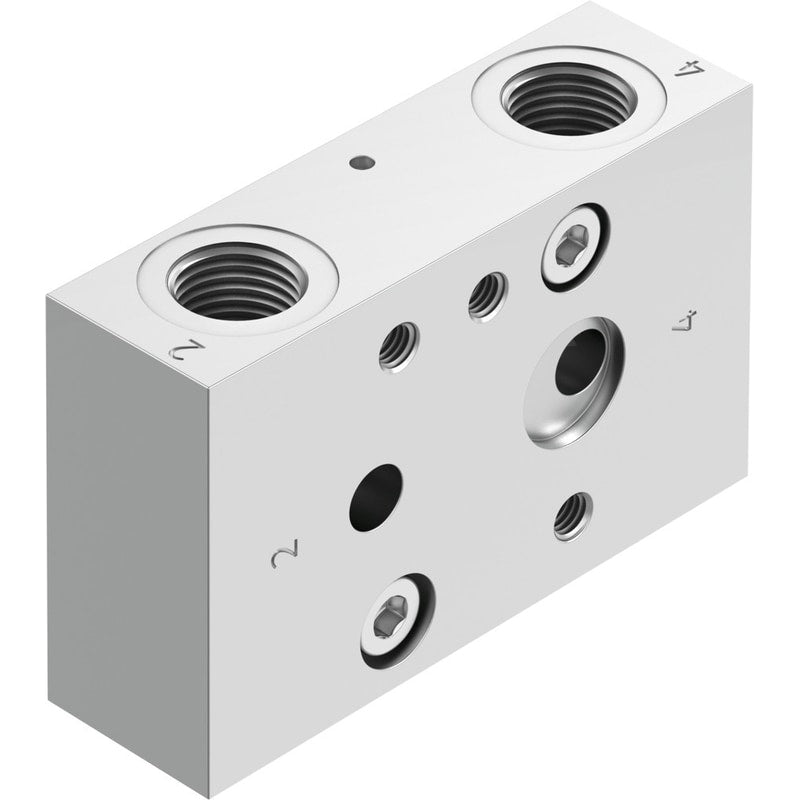

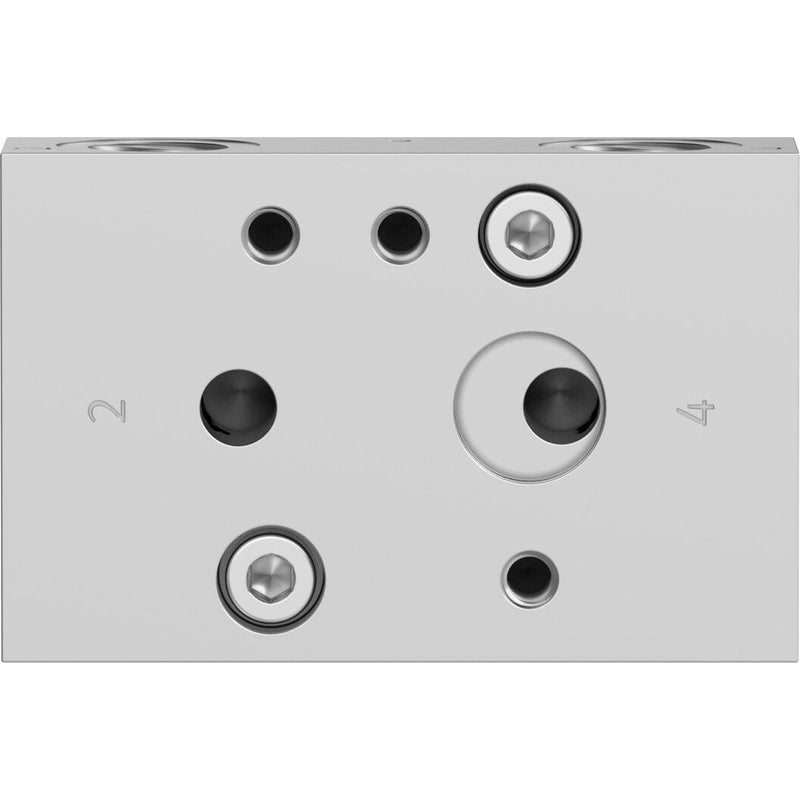

Connecting plate
VABS-B14-T-FG14
8098884
GTIN 4052568465834
Vendor Festo
Regular price
$61.99
Unit price
VABS-B14-T-FG14 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABS-B14-T-FG14
Regular price
$61.99
Unit price
VABS-B14-T-FG14 is backordered and will ship as soon as it is back in stock.
| Type code | VABS |
|---|---|
| Mounting position | Any |
| Design | Connection direction upward |
| Operating pressure | 1.5 bar ... 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Storage temperature | -20 °C ... 60 °C |
| Temperature of medium | -20 °C ... 60 °C |
| Ambient temperature | -20 °C ... 60 °C |
| Product weight | 192 g |
| Type of mounting | With through-hole |
| Pneumatic connection 2 | Flange 1/4 with NAMUR port patternG¼ |
| Pneumatic connection 4 | Flange 1/4 with NAMUR port patternG1/4 |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Material of sub-base | Wrought aluminum alloy |
