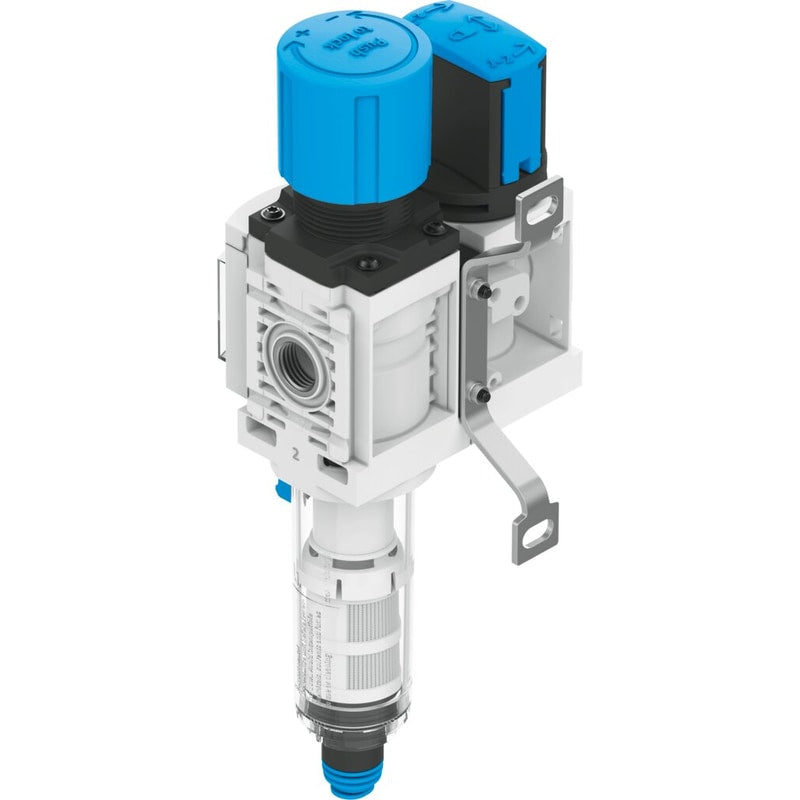

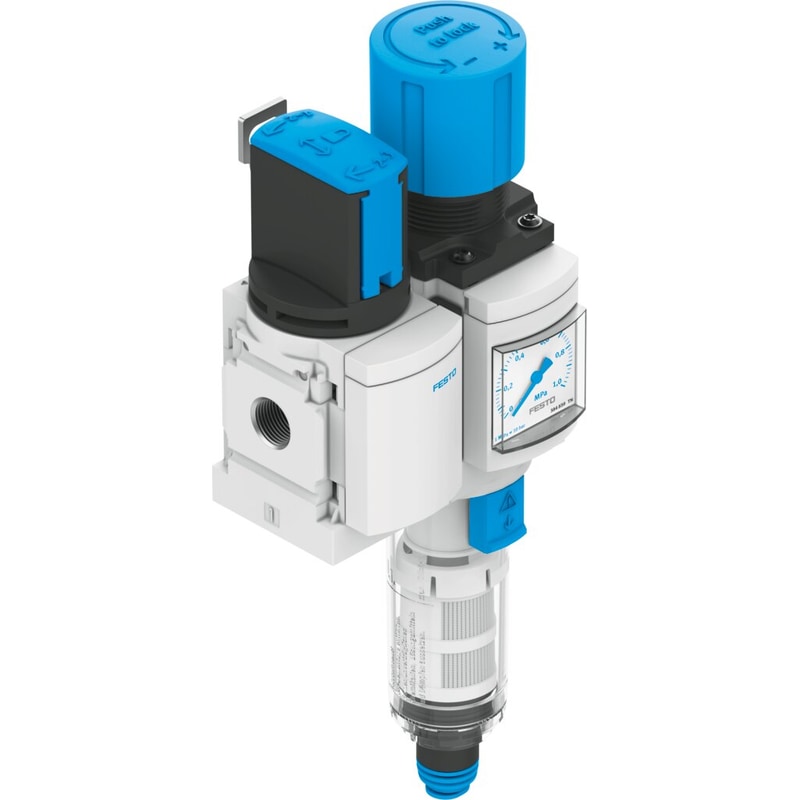

Service unit
MS4-EM1FR-1/4-D6-C-P-VC-AG-MPA-WPE-B
8098377
GTIN 4052568609153
Vendor Festo
- Normal nominal flow rate (normalized to DIN 1343)
- 1500 l/min
- Operating pressure
- 1 bar - 10 bar
Regular price
$167.52
Unit price
Service unit MS4-EM1FR-1/4-D6-C-P-VC-AG-MPA-WPE-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS4-EM1FR-1/4-D6-C-P-VC-AG-MPA-WPE-B
Regular price
$167.52
Unit price
Service unit MS4-EM1FR-1/4-D6-C-P-VC-AG-MPA-WPE-B is backordered and will ship as soon as it is back in stock.
| Size | 4 |
|---|---|
| Series | MS |
| Mounting position | Vertical +/- 5° |
| Pressure gauge | with pressure gauge |
| Operating pressure | 0.1MPa |
| Operating pressure | 1bar |
| Standard flow rate exhaust 6-> 0 bar | 1400l/min |
| Standard nominal flow rate | 1500l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Compatibility with ester oil not given |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -5°C |
| Temperature of medium | 5°C |
| Ambient temperature | 5°C |
| Product weight | 470g |
| Type of mounting | Optionally: |
| Note on materials | RoHS-compliant |
