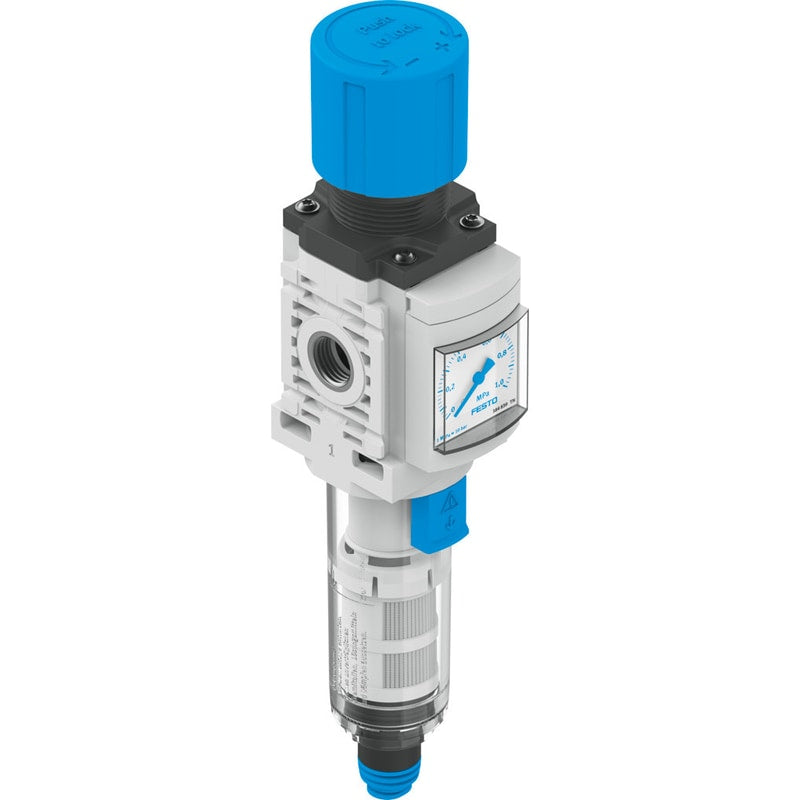

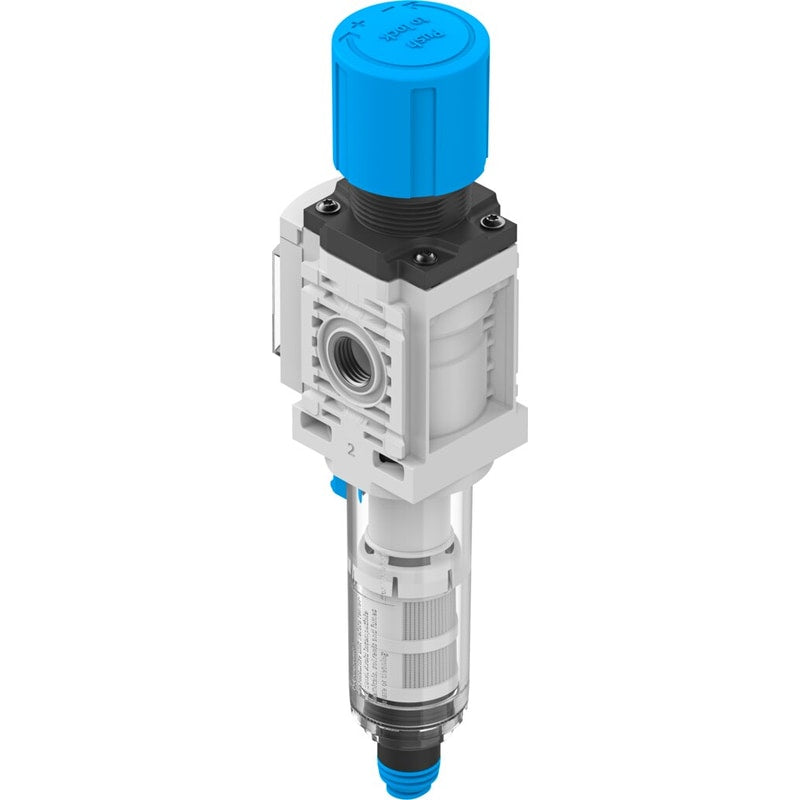

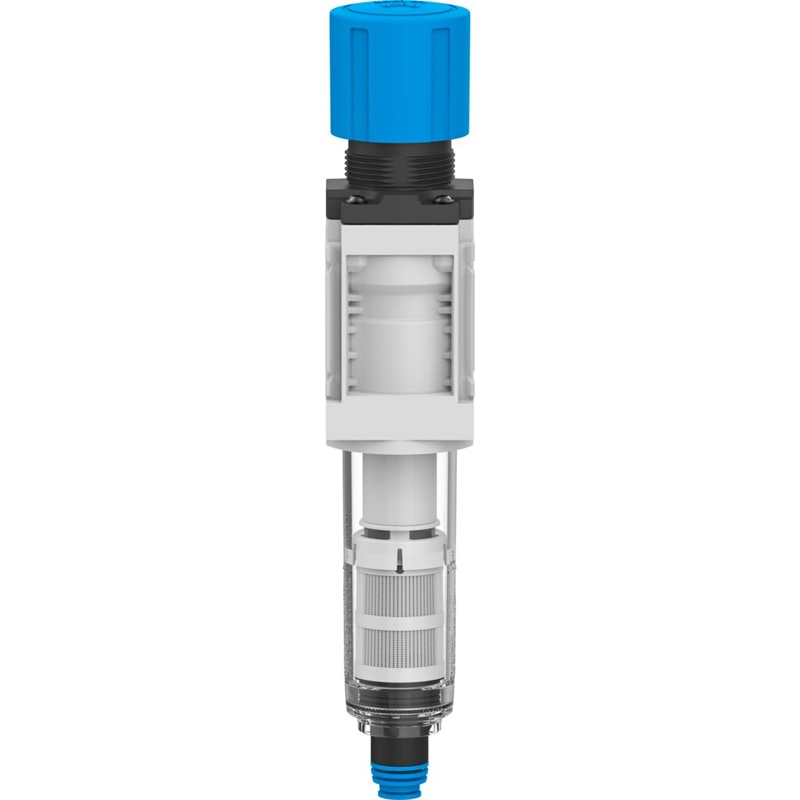

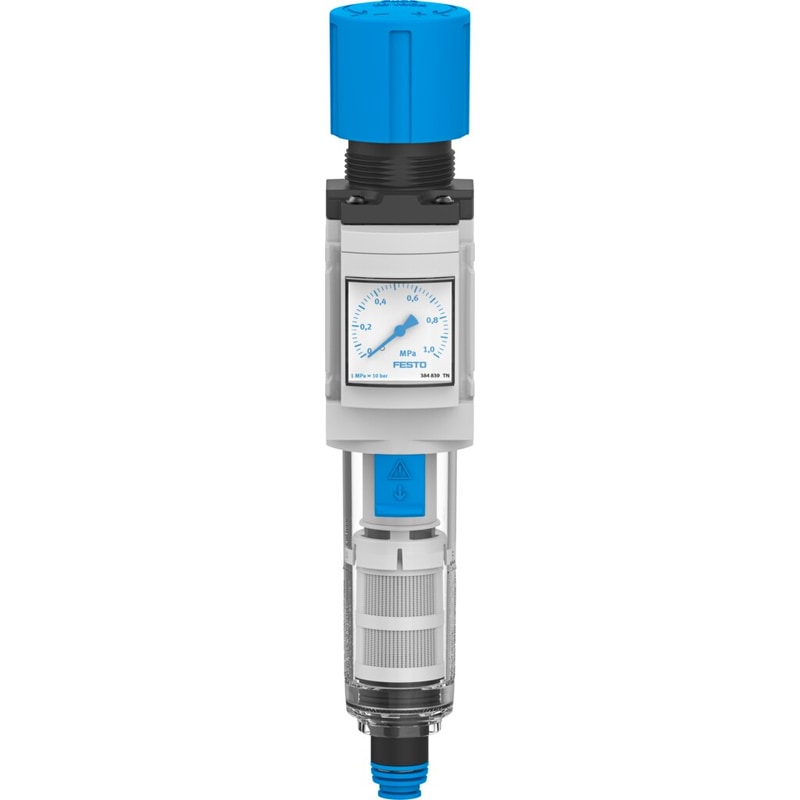

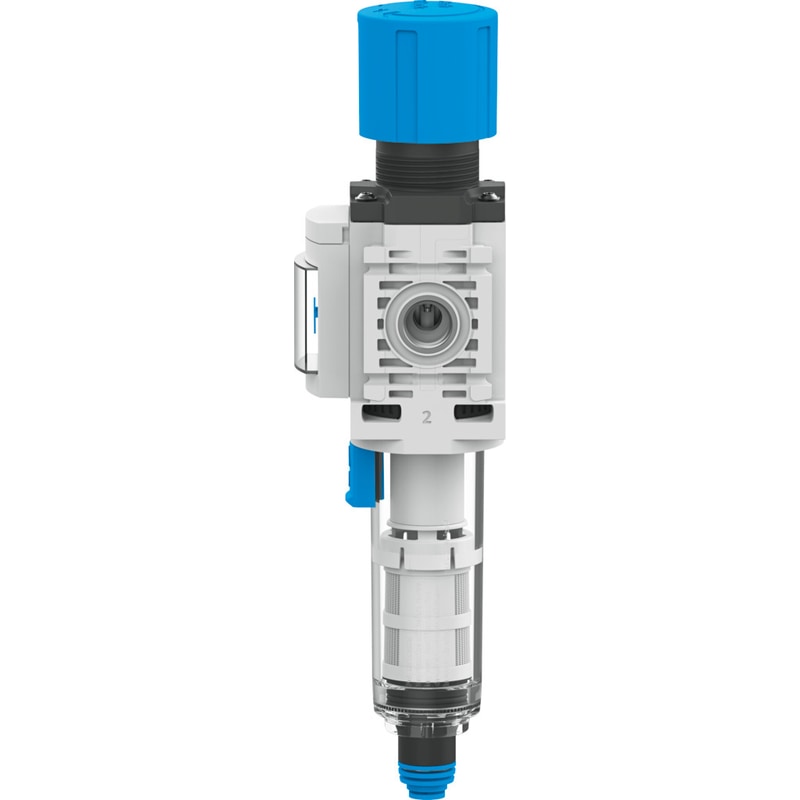

Filter regulator
MS4-LFR-1/4-D6-C-P-VC-AG-MPA-B
8098266
GTIN 4052568569952
Vendor Festo
- Pneumatic connection 1
- G1/4
- Normal nominal flow rate (normalized to DIN 1343)
- 1500 l/min
- Pressure regulation range
- 0.3 bar - 7 bar
- Max. pressure hysteresis
- 0.5 bar
Regular price
$96.09
Unit price
MS4-LFR-1/4-D6-C-P-VC-AG-MPA-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS4-LFR-1/4-D6-C-P-VC-AG-MPA-B
Regular price
$96.09
Unit price
MS4-LFR-1/4-D6-C-P-VC-AG-MPA-B is backordered and will ship as soon as it is back in stock.
| Size | 4 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 5µm |
| Condensate drain | Fully automatic |
| Structural design | Filter regulator with pressure gauge |
| Max. condensate volume | 16.5ml |
| Controller function | Outlet pressure constant |

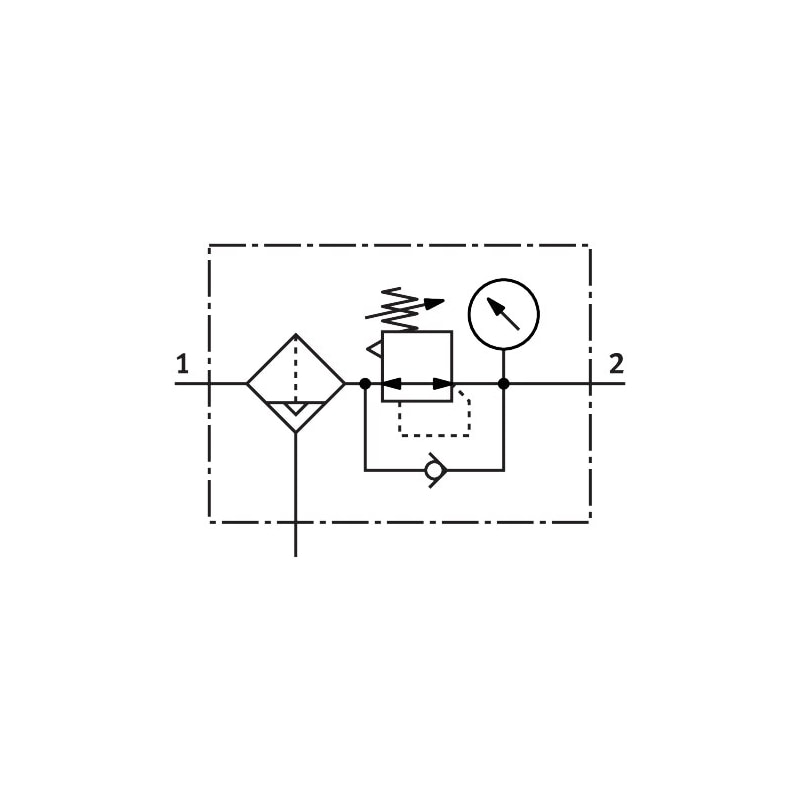

| Symbol | 00991587 |
| Displayable unit(s) | MPa |
| Pressure gauge | with pressure gauge |
| Operating pressure | 0.2MPa |
| Operating pressure | 2bar |
| Pressure regulation range | 0.3bar |
| Max. pressure hysteresis | 0.05MPa |
| Max. pressure hysteresis | 0.5bar |
| Max. pressure hysteresis | 7.25psi |
| Standard nominal flow rate | 1500l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -5°C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Temperature of medium | 5°C |
| Ambient temperature | 5°C |
| Product weight | 216g |
| Type of mounting | Optionally: |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Rotary knob material | POM |
| Material of spring | High-alloy steel |
| Compressed air filter material | PE |
| Housing material | PA-reinforced |
| Material of bowl | PC |
| Valve tappet material | POM |
