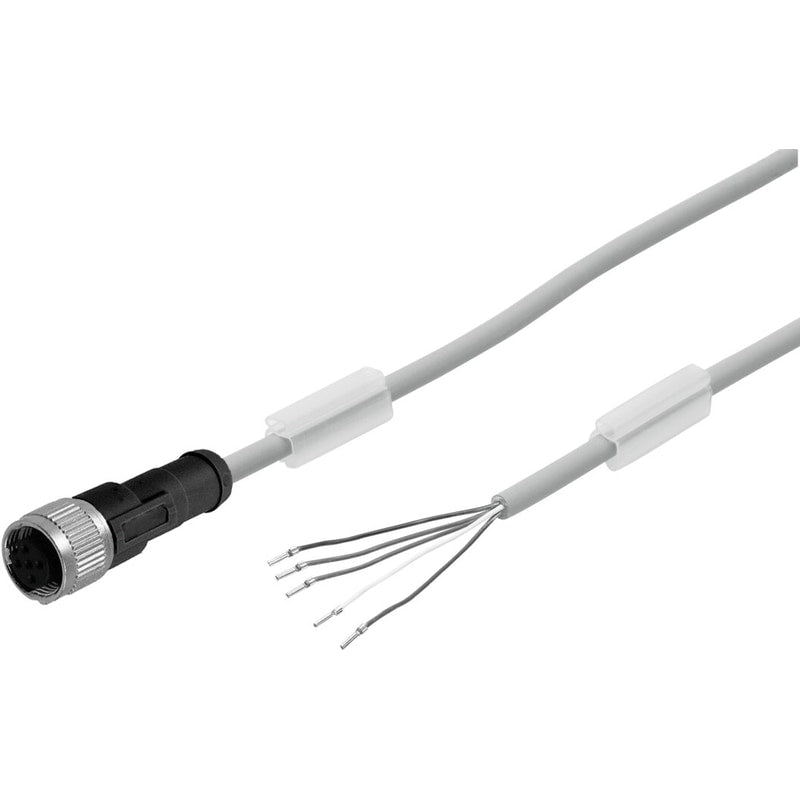

NEBS-M12G5-ES-15-LE5
8097576
Vendor Festo
Regular price
$111.17
Unit price
NEBS-M12G5-ES-15-LE5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBS-M12G5-ES-15-LE5
Regular price
$111.17
Unit price
NEBS-M12G5-ES-15-LE5 is backordered and will ship as soon as it is back in stock.
| Type code | NEBS |
|---|---|
| Shield | yes |
| Cable designation | With 2x label holders |
| Product weight | 828 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 5 |
| Electrical connection 1, occupied pins/wires | 5 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 995384 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 5 |
| Electrical connection 2, occupied pins/wires | 5 |
| DC operating voltage range | 0 V ... 60 V |
| Operating voltage range AC | 0 V ... 48 V |
| Current rating at 40°C | 0.166666666666667 |
| Surge resistance | 1.5 kV |
| Cable length | 15 m |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 26 mm |
| Bending radius, flexible cable installation | ≥ 52 mm |
| Cable diameter | 5.25 mm |
| Cable diameter tolerance | ± 0.2 mm |
| Cable design | 5 x 0.34 mm²Shielded |
| Nominal conductor cross section | 0.34 mm² |
| Wire ends | Cut off bluntly |
| Degree of protection | IP65IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -40 °C ... 80 °C |
| Ambient temperature with flexible cable installation | -25 °C ... 60 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Black |
| Seals material | NBR |
| Material of pin contacts | Bronze, nickel-plated and gold-plated |
| Insulating sheath material | PP |
