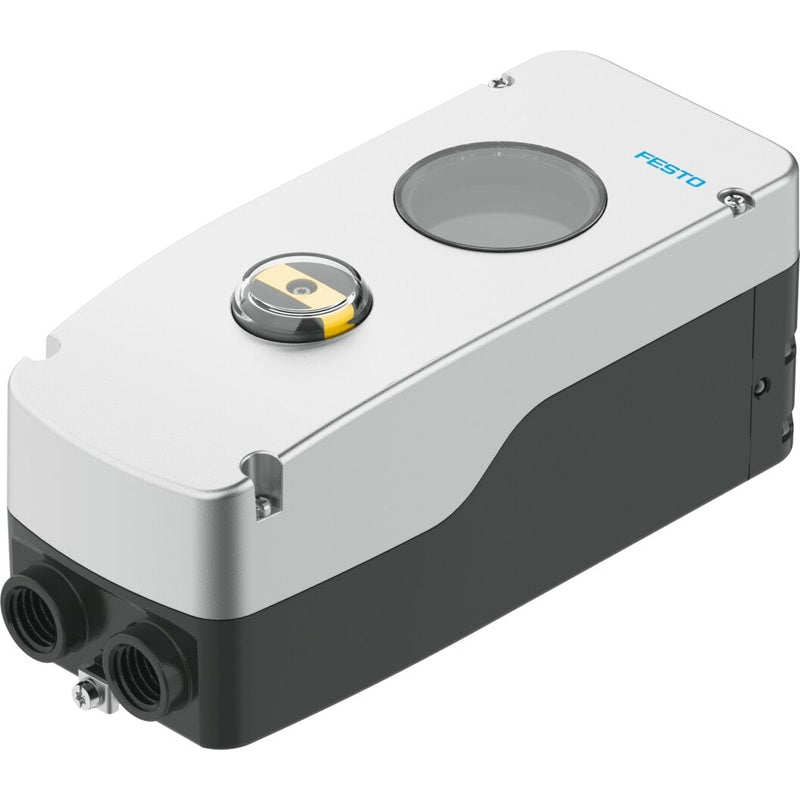

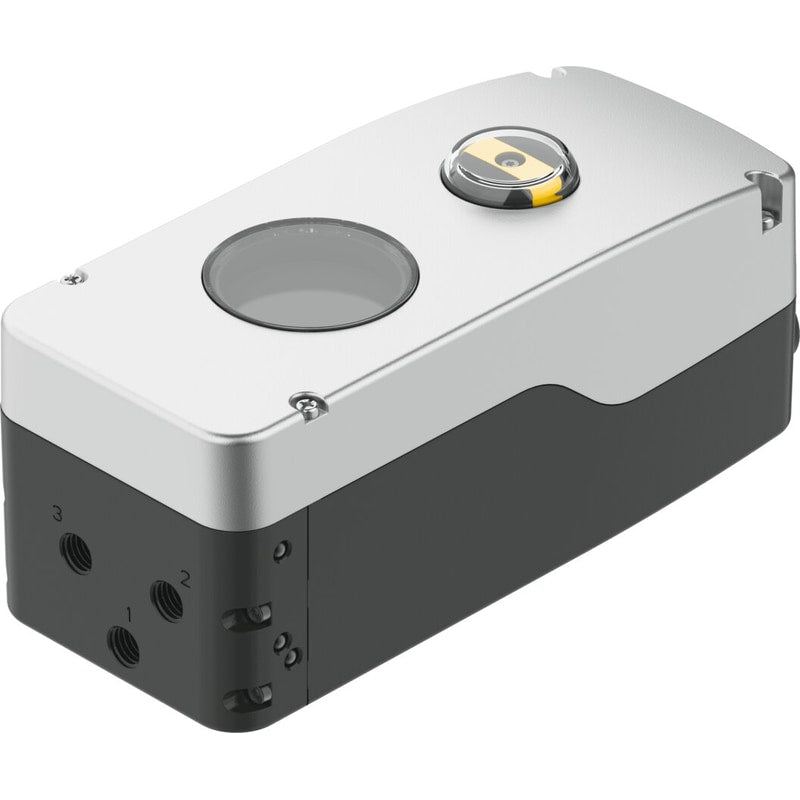

Positioner
CMSH-S-VDE1-S-A-AL-G14-C1M20-HA
8097412
GTIN 4052568580155
Vendor Festo
- Ambient temperature
- -40 °C - 80 °C
- Analog inputs, signal range
- 4 – 20 mA with HART
- Operating pressure
- 1.4 bar - 8 bar
Regular price
$2,411.56
Unit price
CMSH-S-VDE1-S-A-AL-G14-C1M20-HA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CMSH-S-VDE1-S-A-AL-G14-C1M20-HA
Regular price
$2,411.56
Unit price
CMSH-S-VDE1-S-A-AL-G14-C1M20-HA is backordered and will ship as soon as it is back in stock.
| Structural design | digital, electropneumatic positioner |
|---|---|
| Mode of operation | Single-acting |
| Design features | Safety pneumatic output 2 exhausted |
| Mounting position | Any |
| Type of mounting | With accessories as per VDI/VDE 3845 |
| Measuring principle of linear potentiometer | Potentiometer |
| Sensing range | 0 deg ... 115 deg |
| Display | LCD display, via software 90° rotatable |
| Setting options | Via display and pushbuttons |
| Cycle time | 20 ms |
| Nominal altitude of use above sea level | <= 2000 m NHN |
| Overvoltage category | II |
| Operating pressure | 0.14 MPa ... 0.8 MPa |
| Operating pressure | 1.4 bar ... 8 bar |
| Operating pressure | 20.3 psi ... 116 psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Air performance at Δp = 6 bar | 380 l/min |
| Pneumatic connection | G1/4 |
| Reverse polarity protection | yes |
| Connection resistance | 3 kOhm ... 80 kOhm |
| Analog inputs, signal range | 4 – 20 mA with HART |
| Analog inputs, input impedance | 480 ohms at 20 mA |
| Analog inputs, overload protection | <65 mA |
| Analog inputs, galvanic isolation | yes |
| Input characteristics | 1x to IEC 61131-2, type 3 |
| Digital inputs, reverse polarity protection | yes |
| Digital inputs, electrical isolation | yes |
| Digital inputs, overload protection | 33 V |
| Electrical connection 1, function | Analog input Digital input external path/angle sensor |
| Electrical connection 1, connection type | Terminal strip |
| Electrical connection 1, connection technology | Spring-loaded terminal |
| Electrical connection 1, number of pins/wires | 7 |
| Cable fitting | 2x M20x1.5 |
| Max. cable length | 30 m for external position sensor Shielded |
| Ambient temperature | -40 °C ... 80 °C |
| Note on ambient temperature | Display: -30 - 80°C |
| Storage temperature | -40 °C ... 80 °C |
| Climatic category | 1K5 as per EN 60721 for storage 4K3 as per EN 60721 for operation |
| Degree of protection | IP66 IP67 |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Contamination level | 3 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Housing material | Aluminum, powder-coated |
| Inspection window material | PC |
| Shaft material | High-alloy stainless steel |
| Quick-coupling material | High-alloy stainless steel |
| Material of screws | High-alloy stainless steel |
| Seals material | EPDM NBR VMQ |
| LABS conformity | VDMA24364 zone III |
| Note on materials | RoHS-compliant |
| Product weight | 2640 g |
