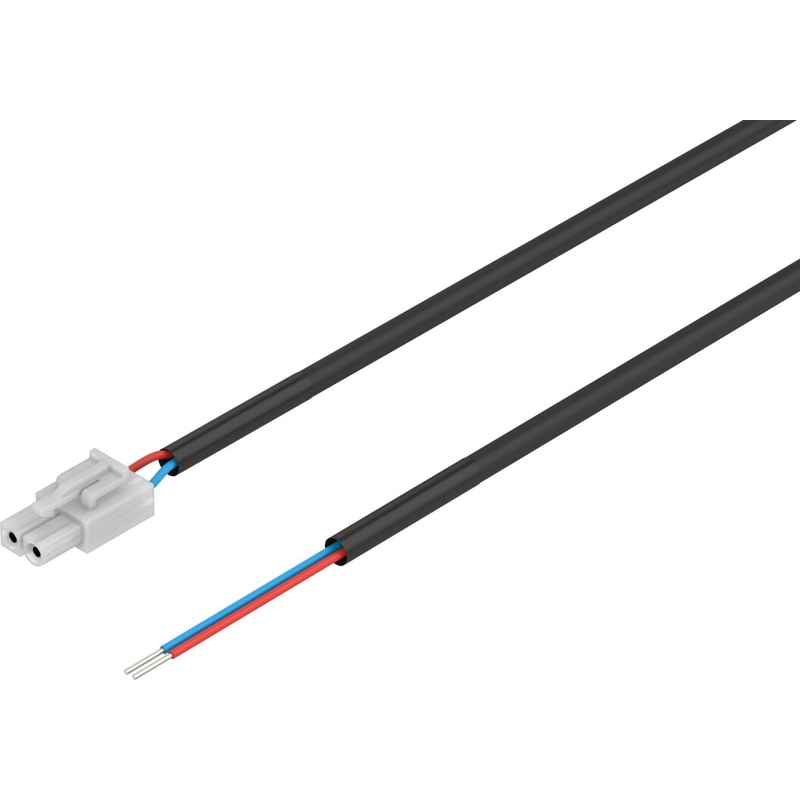

Connecting cable
NEBM-H7G2-E-25-Q14N-LE2
8097208
GTIN 4052568459345
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- Connection diagram H7, coded for motor brake
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Cable length
- 25 m
Regular price
$302.06
Unit price
NEBM-H7G2-E-25-Q14N-LE2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBM-H7G2-E-25-Q14N-LE2
Regular price
$302.06
Unit price
NEBM-H7G2-E-25-Q14N-LE2 is backordered and will ship as soon as it is back in stock.
| Type code | NEBM |
|---|---|
| Nominal conductor cross section | AWG20 |
| Cable designation | Without label holder |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | Connection diagram H7, coded for motor brake |
| Electrical connection 1, number of pins/wires | 2 |
| Electrical connection 1, occupied pins/wires | 2 |
| Electrical connection for input 1, connection pattern | 00995791 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 2 |
| Electrical connection 2, occupied pins/wires | 2 |
| DC operating voltage range | 0 V ... 30 V |
| Operating voltage range AC | 0 V ... 30 V |
| Current rating at 40°C | 5 A |
| Surge resistance | 2 kV |
| Cable length | 25 m |
| Cable characteristic | Suitable for energy chains |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 27 mm |
| Bending radius, flexible cable installation | ≥ 55 mm |
| Cable diameter | 5.1 mm |
| Cable design | 2 x 0.51 mm² |
| Nominal conductor cross section | 0.51 mm² |
| Wire ends | Cable end sleeve |
| Degree of protection | IP20 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -40 °C ... 80 °C |
| Ambient temperature with flexible cable installation | -10 °C ... 80 °C |
| CE marking (see declaration of conformity) | As per EU RoHS directive |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Material of cable sheath | PVC |
| Color cable sheath | Black |
| Housing material | PA |
| Housing colour | White |
| Insulating sheath material | PVC |
