Adapter

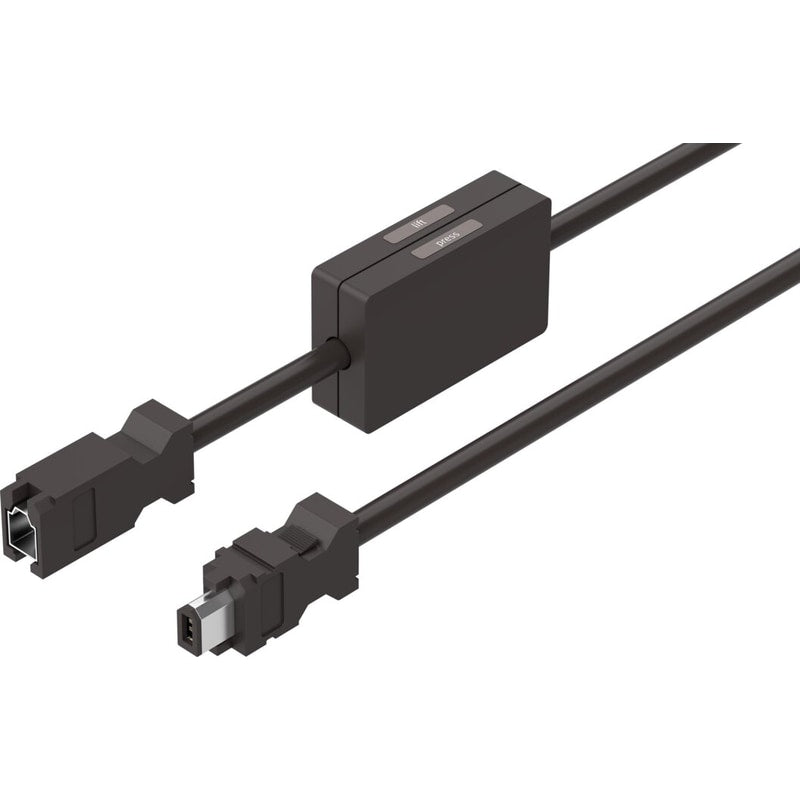

NEFM-REG6-K-0.5-B-REG6
8097196
GTIN 4052568459239
Vendor Festo
Regular price
$174.30
Unit price
NEFM-REG6-K-0.5-B-REG6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEFM-REG6-K-0.5-B-REG6
Regular price
$174.30
Unit price
NEFM-REG6-K-0.5-B-REG6 is backordered and will ship as soon as it is back in stock.
| Additional functions | for battery |
|---|---|
| Product weight | 66 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | Connection diagram RE |
| Electrical connection 1, number of pins/wires | 6 |
| Electrical connection 1, occupied pins/wires | 6 |
| Electrical connection for input 1, connection pattern | 00995793 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Rectangular |
| Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | Connection diagram RE |
| Electrical connection 2, number of pins/wires | 6 |
| Electrical connection 2, occupied pins/wires | 6 |
| Electrical connection 2, connection pattern | 00995792 |
| DC operating voltage range | 0 V ... 30 V |
| Operating voltage range AC | 0 V ... 30 V |
| Current rating at 40°C | 1.6 A |
| Surge resistance | 2 kV |
| Shield | yes |
| Cable length | 0.5 m |
| Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 68 mm |
| Cable diameter | 6.8 mm |
| Cable design | 4 x (2 x 0.081 mm²) + 1 x (2 x 0.205 mm²) |
| Nominal conductor cross section | 0.081 mm² |
| Nominal conductor cross section | AWG24 AWG28 |
| Degree of protection | IP20 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -40 °C ... 80 °C |
| CE marking (see declaration of conformity) | As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS conformity | VDMA24364 zone III |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Material of cable sheath | PVC |
| Color cable sheath | Black |
| Housing material | PVC |
| Housing colour | Gray |
| Insulating sheath material | PVC |
