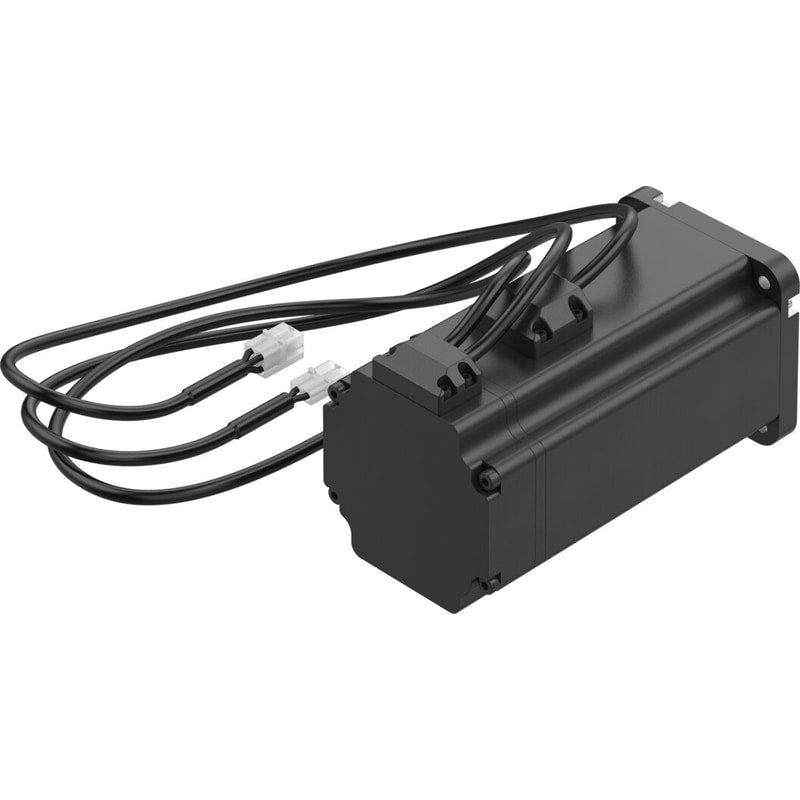

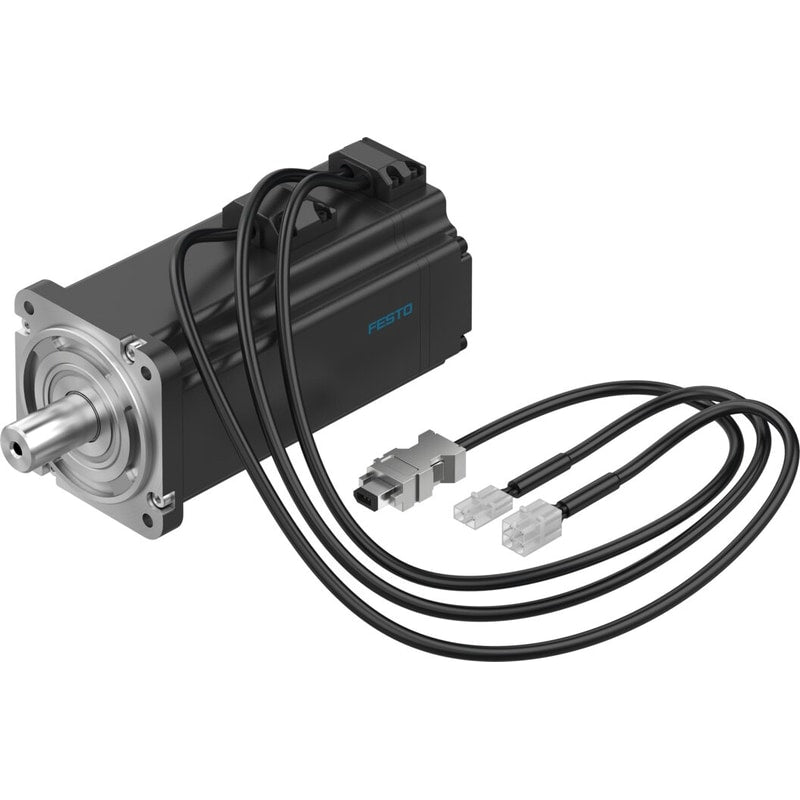

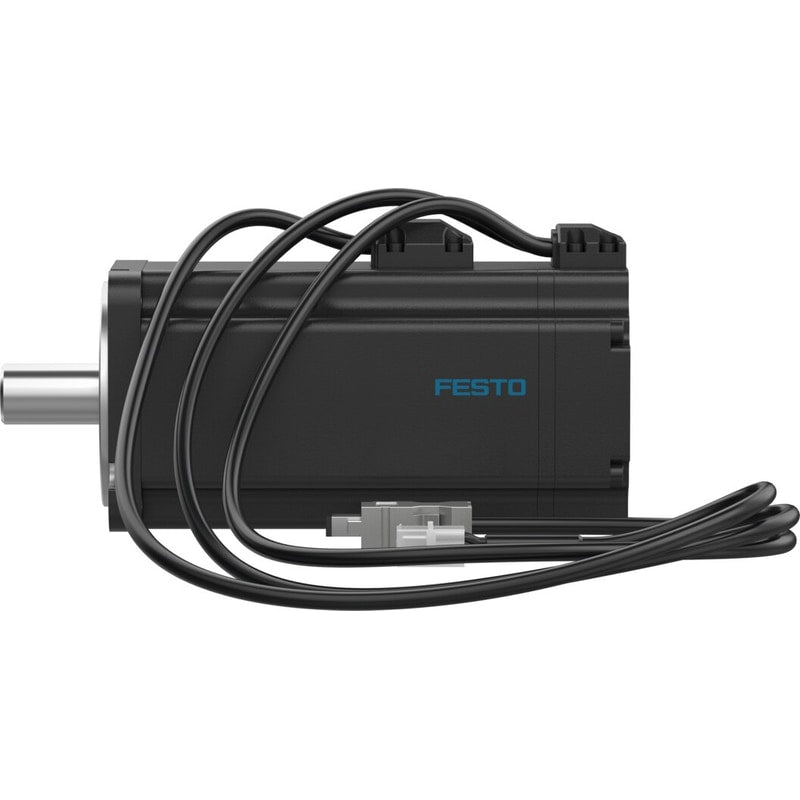

Servo motor
EMMB-AS-80-07-S30MB
8097192
GTIN 4052568459192
Vendor Festo
- Nominal operating voltage DC
- 300 V
- Motor nominal power
- 750 W
- Stall torque
- 2.63 Nm
- Max. rotational speed
- 5000 1/min
Regular price
$1,463.95
Unit price
EMMB-AS-80-07-S30MB is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EMMB-AS-80-07-S30MB
Regular price
$1,463.95
Unit price
EMMB-AS-80-07-S30MB is backordered and will ship as soon as it is back in stock.
| Ambient temperature | -15 °C ... 40 °C |
|---|---|
| Note on ambient temperature | Up to 60 °C with derating of -1.5% per degree Celsius |
| Max. installation height | 4000 m |
| Information on max. installation height | with 1,000 m and longer only with derating of -1.0% per 100 m |
| Storage temperature | -20 °C ... 55 °C |
| Relative air humidity | 0 - 90 % |
| Conforms to standard | IEC 60034 |
| Thermal class according to EN 60034-1 | F |
| Max. winding temperature | 155 °C |
| Rating class according to EN 60034-1 | S1 |
| Temperature monitoring | Digital motor temperature transmission via Nikon A format |
| Motor type as per EN 60034-7 | IM B5 IM V1 IM V3 |
| Mounting position | Any |
| Degree of protection | IP65 |
| Note on degree of protection | IP40 for motor shaft without rotary shaft seal IP54 for motor shaft with rotary shaft seal IP65 for motor housing without connection technology |
| Concentricity, coaxiality, axial runout according to DIN SPEC 42955 | N |
| Balancing quality | G 2.5 |
| Storage lifetime, under nominal conditions | 20000 h |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connection technology | Connection diagram RE |
| Electrical connection 1, number of pins/wires | 6 |
| Electrical connection for input 1, connection pattern | 00995792 |
| Contamination level | 2 |
| Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS conformity | VDMA24364 zone III |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Certification | c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for electrical equipment To UK RoHS instructions |
| Certificate issuing authority | UL E342973 |
| Nominal operating voltage DC | 300 V |
| DC nominal voltage | 300 V |
| Type of winding switch | Star inside |
| Number of pole pairs | 3 |
| Stall torque | 2.63 Nm |
| Nominal torque | 2.39 Nm |
| Peak torque | 7.17 Nm |
| Nominal rotary speed | 3000 1/min |
| Max. rotational speed | 5000 1/min |
| Max. mechanical speed | 10000 1/min |
| Motor nominal power | 750 W |
| Continuous stall current | 4.2 A |
| Motor nominal current | 3.8 A |
| Peak current | 11.4 A |
| Motor constants | 0.662 Nm/A |
| Voltage constant, phase-to-phase | 40 mVmin |
| Phase-phase winding resistance | 2.1 Ohm |
| Winding inductance phase-phase | 10.5 mH |
| Electric time constant | 5 ms |
| Measuring flange | 255 x 255 x 8 mm, aluminum |
| Total output inertia moment | 0.978 kgcm² |
| Product weight | 3400 g |
| Permissible axial shaft load | 167.5 N |
| Permissible radial shaft load | 335 N |
| Rotor position sensor | Absolute encoder, multi-turn |
| Rotor position sensor for manufacturer designation | MAR-MX50AHN00 |
| Rotor position encoder for absolutely detectable revolutions | 65536 |
| Rotor position sensor interface | Nikon A-format |
| Rotor position sensor measuring principle | Optical |
| Rotor position encoder for DC operating voltage | 5 V |
| Rotor position encoder for DC operating voltage range | 4.75 V ... 5.25 V |
| Rotor position encoder for positional values per revolution | 1048576 |
| Rotor position sensor resolution | 20 bit |
| Rotor position encoder system accuracy angle measurement | -120 arcsec ... 120 arcsec |
| Brake holding torque | 3.2 Nm |
| Brake DC operating voltage | 24 V |
| Brake power consumption | 11.5 W |
| Energy efficiency | ENEFF (CN) / Class 2 |
