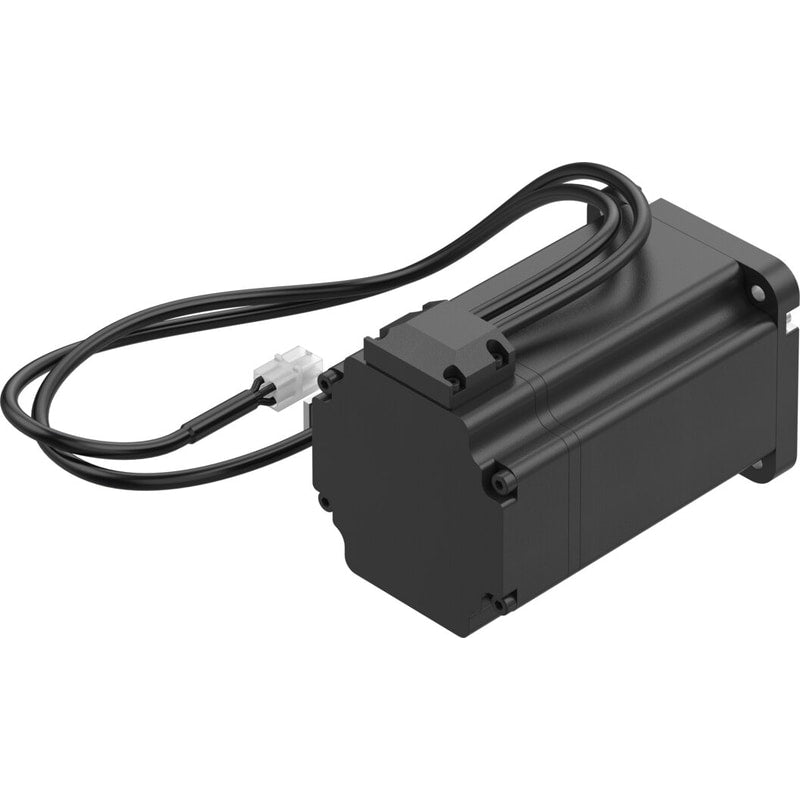

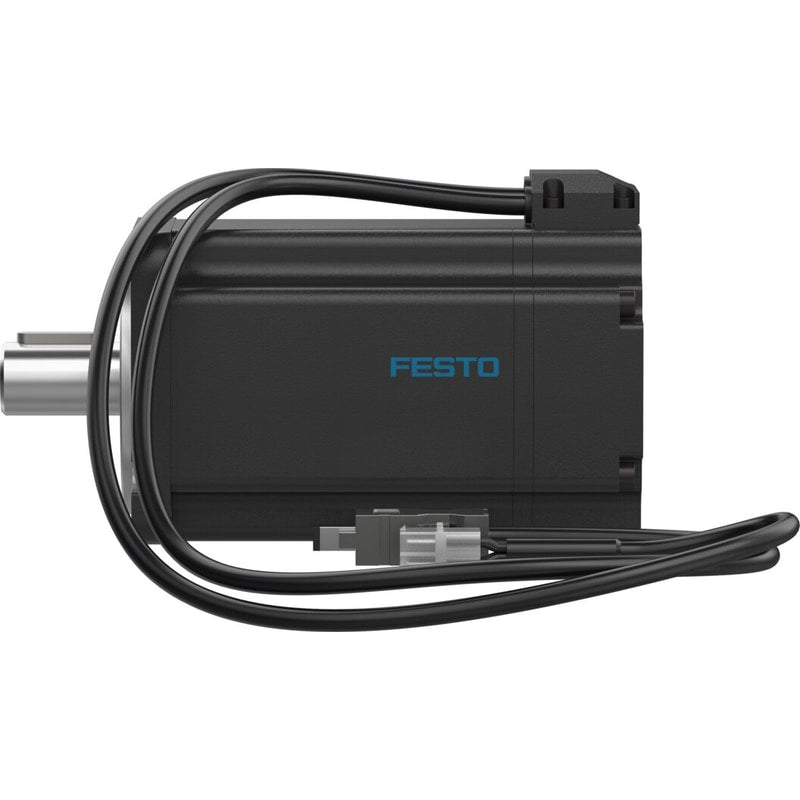

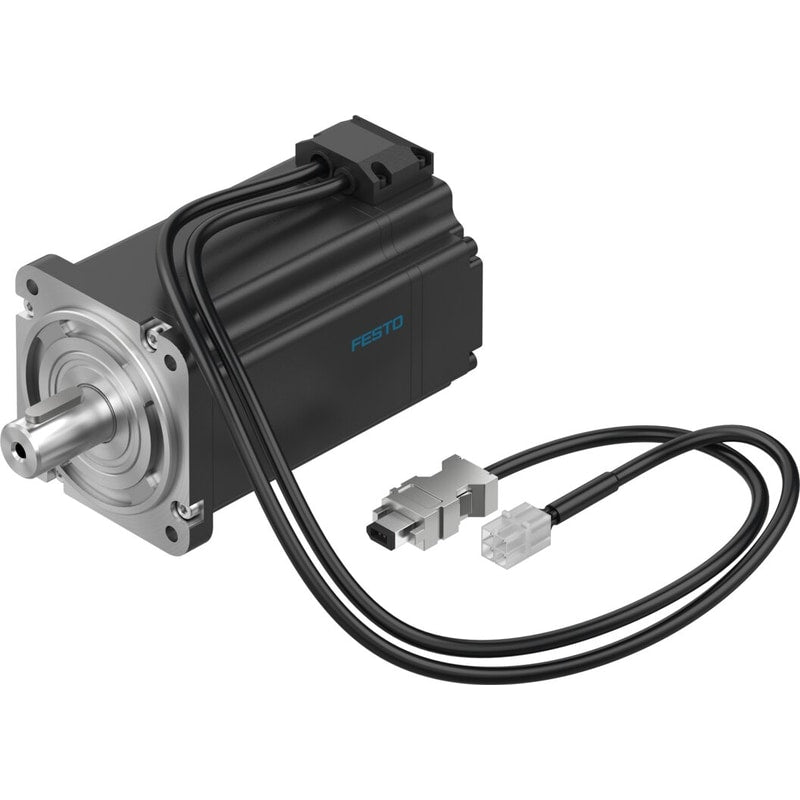

Servo motor
EMMB-AS-80-07-K-S30S
8097189
GTIN 4052568459161
Vendor Festo
- Nominal operating voltage DC
- 300 V
- Motor nominal power
- 750 W
- Stall torque
- 2.63 Nm
- Max. rotational speed
- 5000 1/min
Regular price
$766.81
Unit price
EMMB-AS-80-07-K-S30S is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EMMB-AS-80-07-K-S30S
Regular price
$766.81
Unit price
EMMB-AS-80-07-K-S30S is backordered and will ship as soon as it is back in stock.
| Electrical connection 1, connection technology | Connection diagram RE |
|---|---|
| Electrical connection 1, connection type | Plug |
| Concentricity, coaxiality, axial runout according to DIN SPEC 42955 | N |
| Electrical connection for input 1, connection pattern | 00995792 |
| Mounting position | Any |
| Rotor position sensor for manufacturer designation | SAR-ML50AJC00 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Information on max. installation height | with 1,000 m and longer only with derating of -1.0% per 100 m |
| Note on degree of protection | IP40 for motor shaft without rotary shaft sealIP54 for motor shaft with rotary shaft sealIP65 for motor housing without connection technology |
| Contamination level | 2 |
| Note on ambient temperature | Up to 60 °C with derating of -1.5% per degree Celsius |
| Measuring flange | 255 x 255 x 8 mm, aluminum |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Balancing quality | G 2.5 |
| Motor type as per EN 60034-7 | IM B5IM V1IM V3 |
| Certificate issuing authority | UL E342973 |
| Electrical connection 1, number of pins/wires | 6 |
| Max. winding temperature | 155 °C |
| Max. installation height | 4000 m |
| Rotor position encoder for DC operating voltage | 5 V |
| Max. mechanical speed | 10000 1/min |
| Number of pole pairs | 3 |
| Storage lifetime, under nominal conditions | 20000 h |
| Electric time constant | 5 ms |
| Rotor position encoder for DC operating voltage range | 4.75 V ... 5.25 V |
| Rotor position encoder for absolutely detectable revolutions | 1 |
| Rotor position encoder system accuracy angle measurement | -120 arcsec ... 120 arcsec |
| Rotor position encoder for positional values per revolution | 1048576 |
| Type code | EMMB-AS |
| Rotor position sensor | Absolute encoder, single-turn |
| Rotor position sensor interface | Nikon A-format |
| Rotor position sensor measuring principle | Optical |
| Temperature monitoring | Digital motor temperature transmission via Nikon A format |
| Max. rotational speed | 5000 1/min |
| Nominal rotary speed | 3000 1/min |
| Continuous stall current | 4.2 A |
| Motor constants | 0.662 Nm/A |
| Nominal operating voltage DC | 300 V |
| Motor nominal power | 750 W |
| DC nominal voltage | 300 V |
| Motor nominal current | 3.8 A |
| Rotor position sensor resolution | 20 bit |
| Phase-phase winding resistance | 2.1 Ohm |
| Winding inductance phase-phase | 10.5 mH |
| Type of winding switch | Star inside |
| Peak current | 11.4 A |
| Voltage constant, phase-to-phase | 40 mVmin |
| Rating class according to EN 60034-1 | S1 |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU low voltage directiveAs per EU RoHS directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 55 °C |
| Relative air humidity | 0 - 90 % |
| Degree of protection | IP65 |
| Ambient temperature | -15 °C ... 40 °C |
| Thermal class according to EN 60034-1 | F |
| Certification | c UL us - Recognized (OL) |
| Total output inertia moment | 0.942 kgcm² |
| Nominal torque | 2.39 Nm |
| Peak torque | 7.17 Nm |
| Stall torque | 2.63 Nm |
| Permissible axial shaft load | 167.5 N |
| Permissible radial shaft load | 335 N |
| Product weight | 2800 g |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Conforms to standard | IEC 60034 |
| Featherkey shaft design | DIN 6885A 6 x 6 x 22 |
