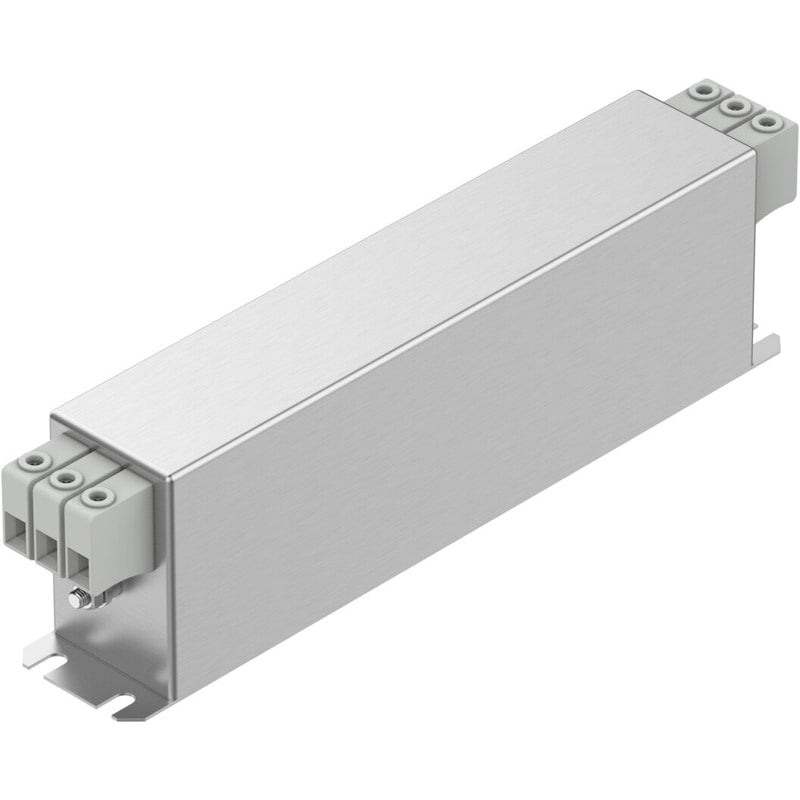

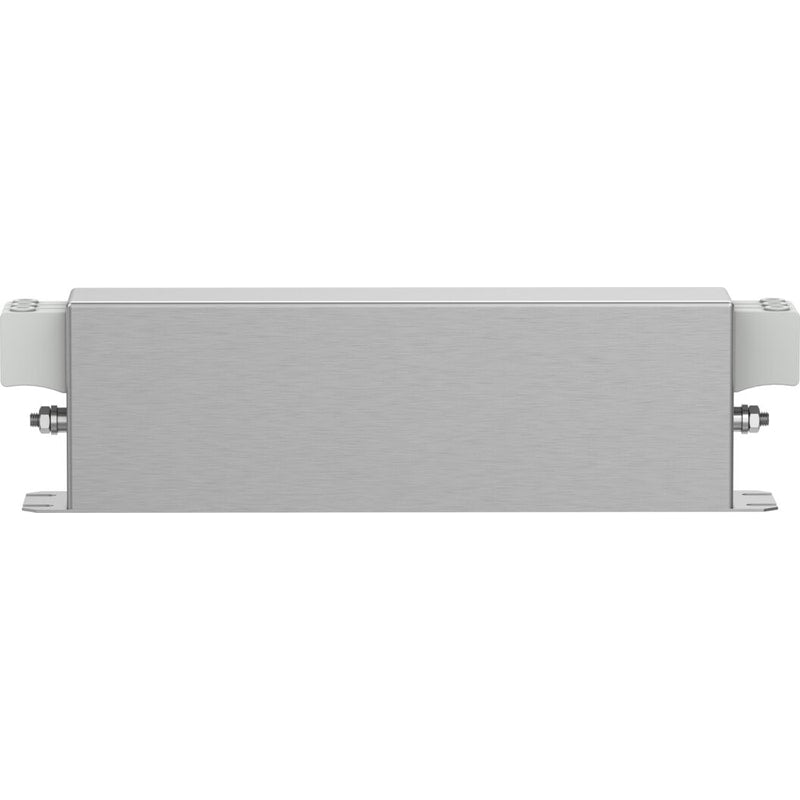

Line filter
CAMF-C6-F-C16-11A
8096868
GTIN 4052568298791
Vendor Festo
Regular price
$498.69
Unit price
CAMF-C6-F-C16-11A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CAMF-C6-F-C16-11A
Regular price
$498.69
Unit price
CAMF-C6-F-C16-11A is backordered and will ship as soon as it is back in stock.
| Electrical connection 1, connection type | Terminal strip |
|---|---|
| Electrical connection 2, connection type | Terminal strip |
| Electrical connection 1, connection technology | Screw terminal |
| Electrical connection 2, function | Power supply |
| Electrical connection 1, function | Power supply |
| Electrical connection 2, connection technology | Screw terminal |
| Electrical connection 1, occupied pins/wires | 3 |
| Electrical connection 2, occupied pins/wires | 3 |
| Electrical connection 1, number of pins/wires | 3 |
| Insulation voltage | 2650 V |
| Electrical connection 2, number of pins/wires | 3 |
| Mains frequency | 0 Hz ... 60 Hz |
| Electrical connection 1, conductor cross section | 6 mm² ... 10 mm² |
| Electrical connection 2, conductor cross section | 6 mm² ... 10 mm² |
| Short-circuit protection | no |
| Current rating at 40°C | 16 A |
| Operating voltage range AC | 0 V ... 520 V |
| Dimensions W x L x H | 45 mm x 235 mm x 70 mm |
| Certification | UL - Recognized (OL)ENECc UL - Recognized (OL) |
| CE marking (see declaration of conformity) | As per EU RoHS directive |
| Storage temperature | -25 °C ... 100 °C |
| Degree of protection | IP20 |
| Ambient temperature | -25 °C ... 100 °C |
| Type of mounting | Mounting plate, screwed on |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Mounting position | Horizontal |
| Type code | CAMF |
