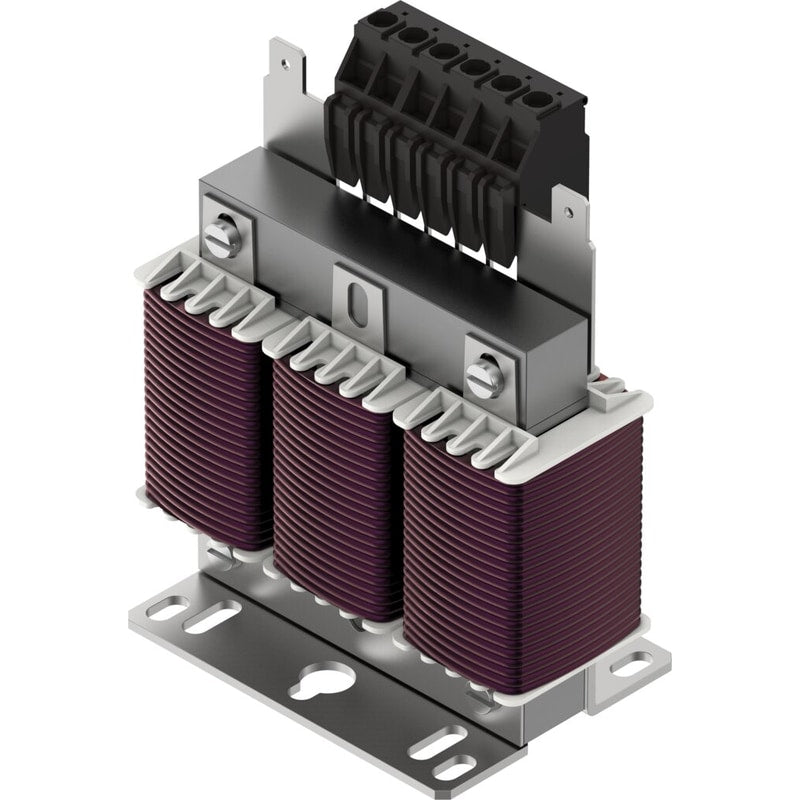

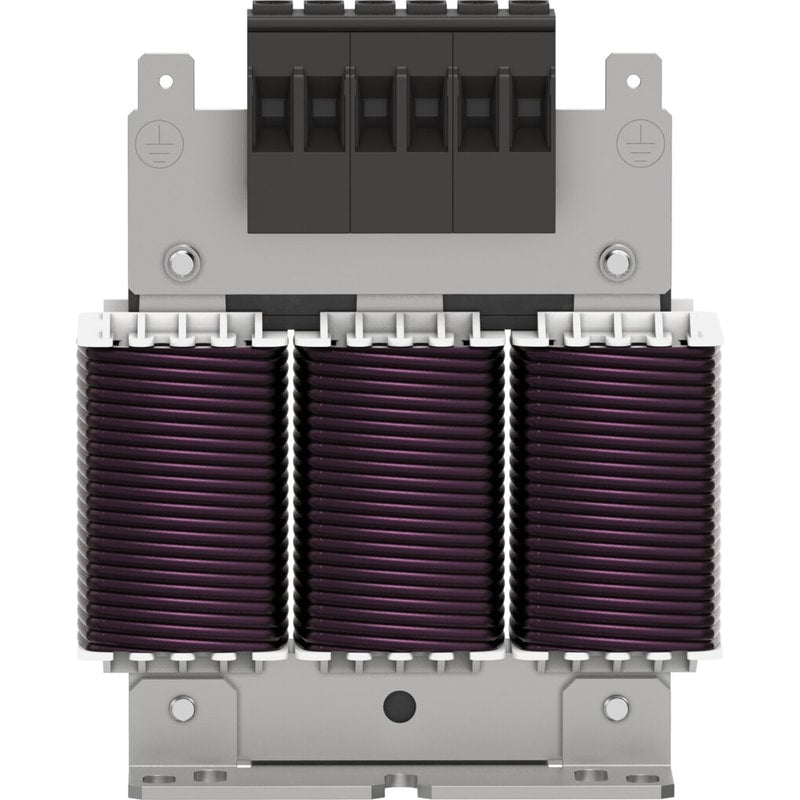

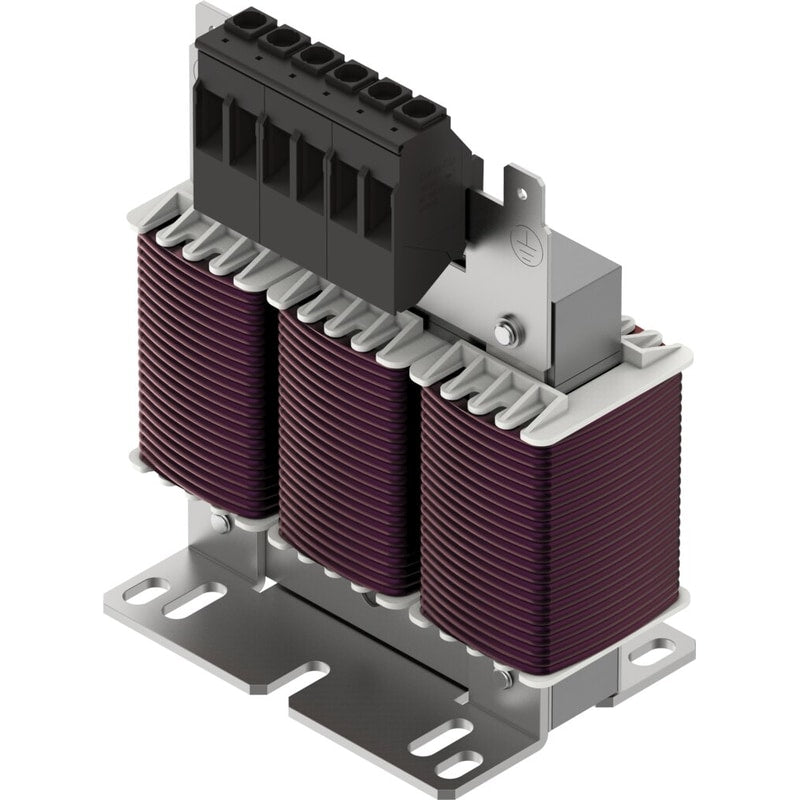

Filter flow control
CAMF-C6-FD-C6-11A
8096867
GTIN 4052568298784
Vendor Festo
Regular price
$111.42
Unit price
CAMF-C6-FD-C6-11A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CAMF-C6-FD-C6-11A
Regular price
$111.42
Unit price
CAMF-C6-FD-C6-11A is backordered and will ship as soon as it is back in stock.
| Electrical connection 1, connection type | Terminal strip |
|---|---|
| Electrical connection 1, connection technology | Screw terminal |
| Electrical connection 1, function | Power supply |
| Electrical connection 1, occupied pins/wires | 6 |
| Electrical connection 1, number of pins/wires | 6 |
| Nominal inductance tolerance | 0.1 |
| Insulation voltage | 4000 V |
| Nominal inductance | 3.7 mH |
| Mains frequency | 50 Hz ... 60 Hz |
| Electrical connection 1, conductor cross section | 4 mm² |
| Short-circuit protection | no |
| Current rating at 40°C | 0.25 |
| Operating voltage range AC | 0 V ... 600 V |
| Dimensions W x L x H | 60 mm x 80 mm x 116 mm |
| Certification | c UL - Recognized (OL)ENEC |
| CE marking (see declaration of conformity) | As per EU RoHS directive |
| Storage temperature | -10 °C ... 40 °C |
| Degree of protection | IP00 |
| Ambient temperature | -10 °C ... 40 °C |
| Product weight | 940 g |
| Type of mounting | Mounting plate, screwed on |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Mounting position | Horizontal |
