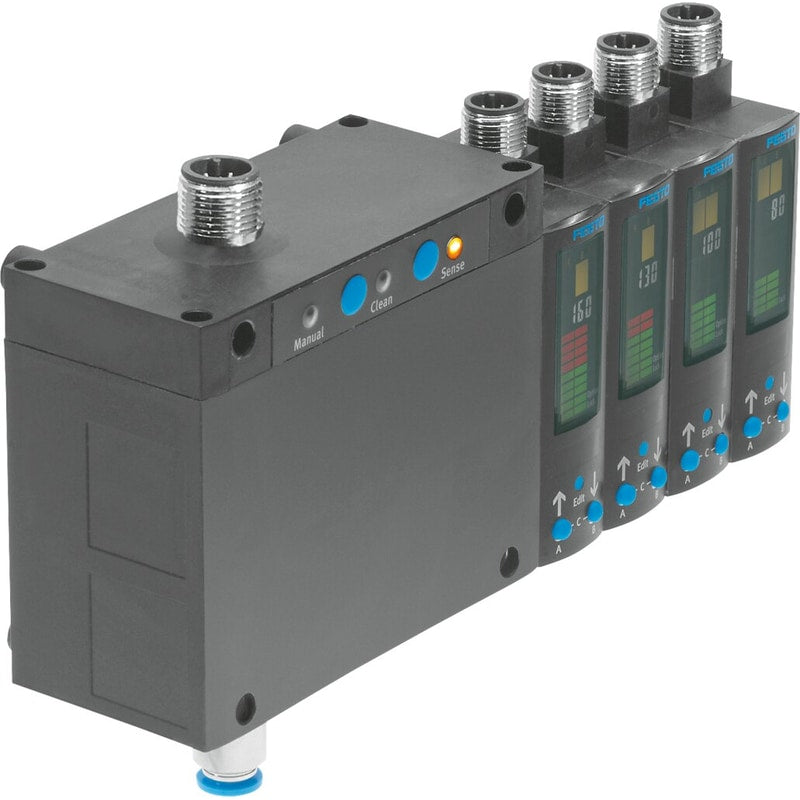

Air gap sensor
SOPA-CM4H-R1-HQ6-PNLK-A-M12
8093825
GTIN 4052568462314
Vendor Festo
- Sensing range
- 20 µm - 200 µm
- Operating pressure
- 4 bar - 7 bar
- Display type
- Illuminated LCD, multi-color
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
Regular price
$2,345.53
Unit price
SOPA-CM4H-R1-HQ6-PNLK-A-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SOPA-CM4H-R1-HQ6-PNLK-A-M12
Regular price
$2,345.53
Unit price
SOPA-CM4H-R1-HQ6-PNLK-A-M12 is backordered and will ship as soon as it is back in stock.
| Type code | SOPA |
|---|---|
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| KC characters | KC EMC |
| Electrical connection for input 1, connection pattern | 00991172 |
| Electrical connection 1, number of pins/wires | 5 |
| Detected variable | Gap |
| Analog output | 4 - 20 mA |
| Distance characteristic curve start value | 0 µm |
| Distance characteristic curve end value | 300 µm |
| Max. load resistance of current output | 500 Ohm |
| Rise time | 22 ms |
| Repetition accuracy in ± µm | 2.5 µm |
| Symbol | 00997316 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Measuring principle | Pneumatic |
| Sensing range | 20 µm ... 200 µm |
| Operating pressure | 4 bar ... 7 bar |
| Supply pressure | 0.8 bar ... 1.6 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Ambient temperature | 0 °C ... 50 °C |
| Switching output | PNP/NPN switchable |
| Switching function | Window comparatorThreshold value with variable hysteresis |
| Switching element function | N/C contact/N/O contact switchable |
| Max. output current | 100 mA |
| Short-circuit protection | yes |
| Protocol | IO-Link® |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, profile | Smart sensor profile |
| IO-Link®, function classes | Process data variable (PDV)IdentificationDiagnosticsTeach channelSwitching signal channel (SSC) |
| IO-Link®, communication mode | COM2 (38,4 kBd) |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, port class | A |
| IO-Link®, process data width OUT | 0 Byte |
| IO-Link®, process data width IN | 2 Byte |
| IO-Link®, process data content IN | 2-bit SSC (distance monitoring)1-bit SSC (supply pressure monitoring)10-bit PDV (distance) |
| IO-Link®, service data contents IN | 14-bit supply pressure |
| IO-Link®, minimum cycle time | 3 ms |
| IO-Link®, data memory required | < 500 byte |
| DC operating voltage range | 22.8 V ... 26.4 V |
| Reverse polarity protection | for all electrical connections |
| Type of mounting | With through-holeWith H-railOptionally: |
| Pneumatic connection | QS-6 |
| Product weight | 690 g |
| Housing material | PA-reinforced |
| Display type | Illuminated LCD, multi-color |
| Setting options | IO-Link®Teach-inVia display and pushbuttons |
| Protection against tampering | Electronic interlock |
| Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
