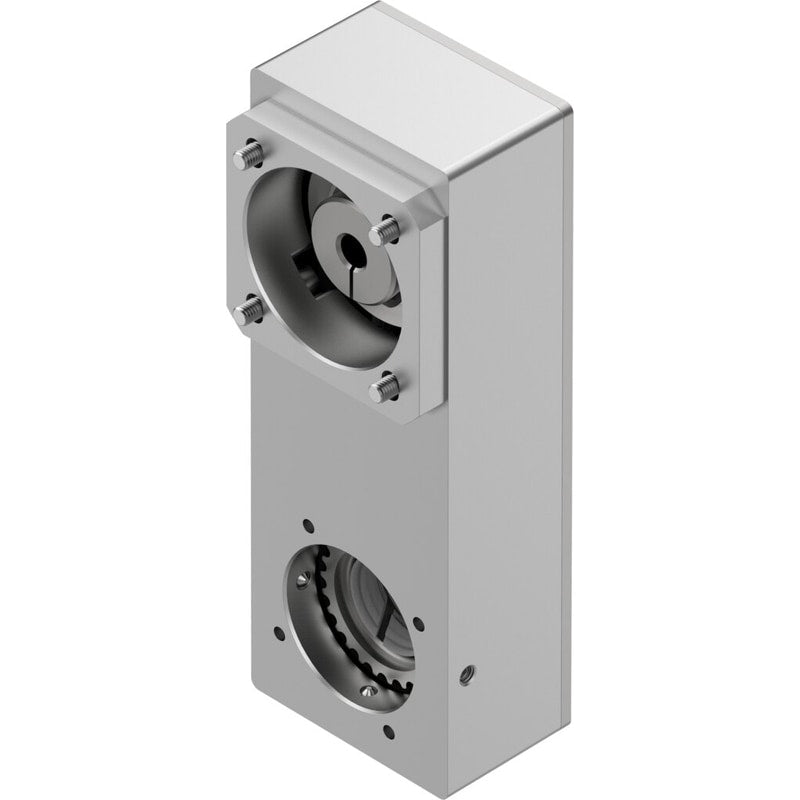

Parallel kit
EAMM-U-38-V25-35A-63
8093286
GTIN 4052568299125
Vendor Festo
Regular price
$275.86
Unit price
EAMM-U-38-V25-35A-63 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EAMM-U-38-V25-35A-63
Regular price
$275.86
Unit price
EAMM-U-38-V25-35A-63 is backordered and will ship as soon as it is back in stock.
| Gear ratio | 0.0423611111111111 |
|---|---|
| Size | 38 |
| Center-to-center distance | 63 mm |
| Type code | EAMM-U |
| Mounting position | Any |
| Max. rotational speed | 3600 1/min |
| Storage temperature | -20 °C ... 60 °C |
| Relative air humidity | 0 - 95 % |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C ... 50 °C |
| Mass moment of inertia | 4.35 kgmm² |
| No-load driving torque | 0.05 Nm |
| Transferable torque | 0.5 Nm |
| Product weight | 218 g |
| Interface code, actuator | V25 |
| Interface code, motor in | 35A |
| Note on materials | RoHS-compliant |
