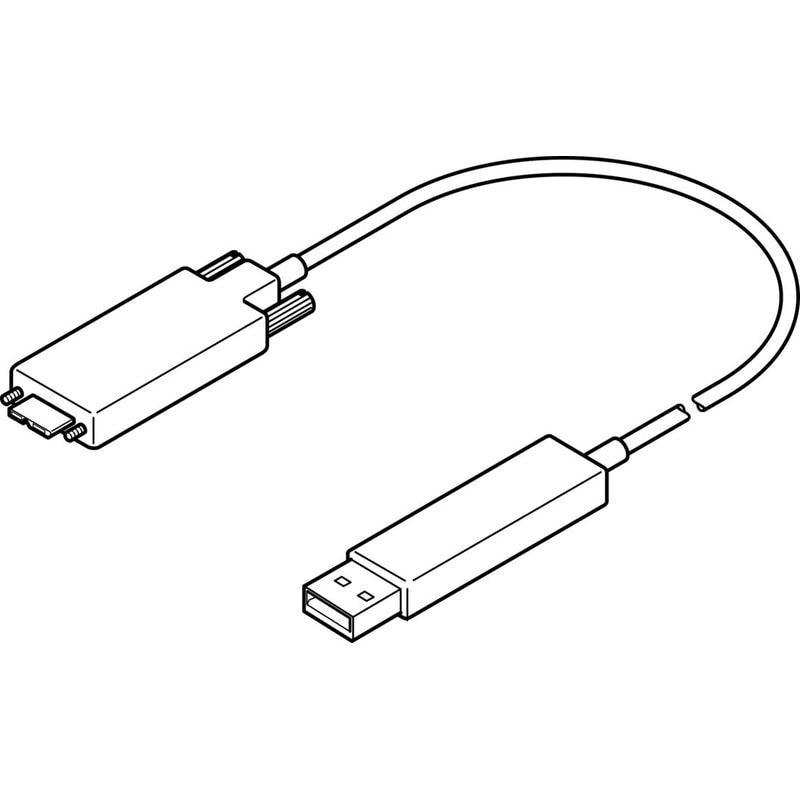

Connecting cable
NEBC-U7G10-EH-30-N-S-U5G9
8093272
GTIN 4052568299347
Vendor Festo
Regular price
$1,060.62
Unit price
NEBC-U7G10-EH-30-N-S-U5G9 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBC-U7G10-EH-30-N-S-U5G9
Regular price
$1,060.62
Unit price
NEBC-U7G10-EH-30-N-S-U5G9 is backordered and will ship as soon as it is back in stock.
| Type code | NEBC |
|---|---|
| Additional functions | Hybrid cable |
| Cable designation | Without label holder |
| Product weight | 530 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | USB 3.0 type B micro |
| Electrical connection 1, number of pins/wires | 10 |
| Electrical connection 1, occupied pins/wires | 9 |
| Electrical connection 1, type of mounting | 2x screw, M2x0.4 |
| Electrical connection for input 1, connection pattern | 995732 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Rectangular |
| Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | USB 3.0 type A |
| Electrical connection 2, number of pins/wires | 9 |
| Electrical connection 2, occupied pins/wires | 9 |
| Electrical connection 2, type of mounting | Inserted |
| Electrical connection 2, connection pattern | 995730 |
| DC operating voltage range | 4.75 V ... 5.25 V |
| Current rating at 40°C | 0.9 A |
| Cable length | 30 m |
| Cable characteristic | Suitable for energy chains |
| Bending radius, fixed cable installation | ≥ 20 mm |
| Bending radius, flexible cable installation | ≥ 10 mm |
| Cable diameter | 3.1 mm |
| Cable diameter tolerance | ± 0.2 mm |
| Degree of protection | IP20 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -5 °C ... 50 °C |
| Ambient temperature with flexible cable installation | -5 °C ... 50 °C |
| Storage temperature | -40 °C ... 90 °C |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Contamination level | 1 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Material of cable sheath | PVC |
| Color cable sheath | Black |
| Housing material | Wrought aluminum alloy, anodized |
| Housing colour | Silver |
