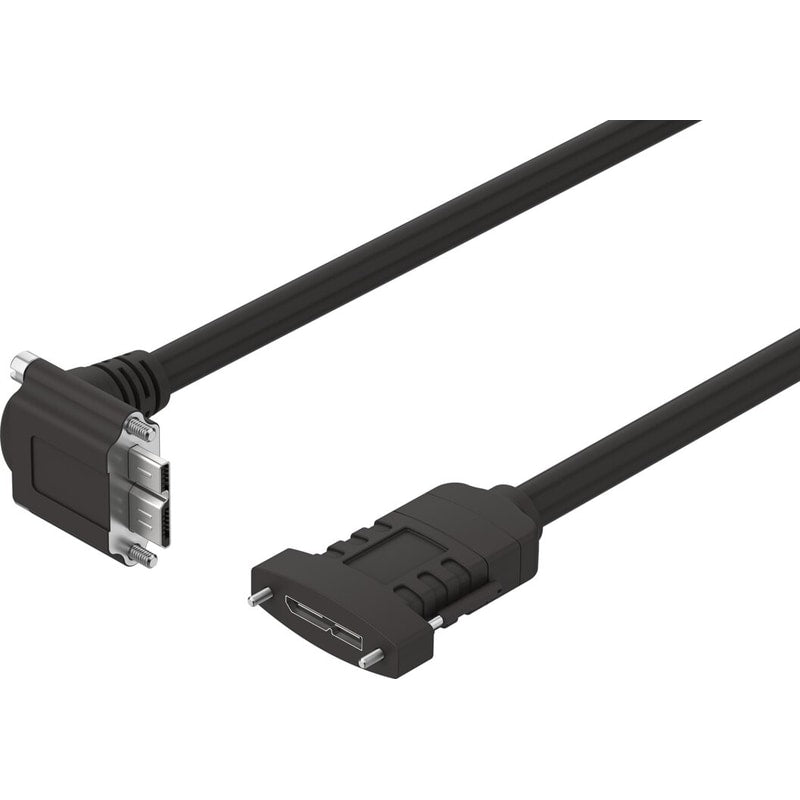

Connecting cable
NEBC-U7W10-KS-0.5-N-SB-U7G10
8093270
GTIN 4052568557577
Vendor Festo
Regular price
$155.71
Unit price
NEBC-U7W10-KS-0.5-N-SB-U7G10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBC-U7W10-KS-0.5-N-SB-U7G10
Regular price
$155.71
Unit price
NEBC-U7W10-KS-0.5-N-SB-U7G10 is backordered and will ship as soon as it is back in stock.
| Cable designation | Without label holder |
|---|---|
| Product weight | 35 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connection technology | USB 3.0 type B micro |
| Electrical connection 1, number of pins/wires | 10 |
| Electrical connection 1, occupied pins/wires | 9 |
| Electrical connection 1, type of mounting | 2x screw, M2x0.4 |
| Electrical connection for input 1, connection pattern | 00995732 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Rectangular |
| Electrical connection 2, connection type | Socket |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | USB 3.0 type B micro |
| Electrical connection 2, number of pins/wires | 10 |
| Electrical connection 2, occupied pins/wires | 9 |
| Electrical connection 2, type of mounting | 2x threaded bushes M2x0.4 |
| Electrical connection 2, connection pattern | 00995872 |
| DC operating voltage range | 0 V ... 30 V |
| Operating voltage range AC | 0 V ... 30 V |
| Current rating at 40°C | 1.4 A |
| Surge resistance | 1 kV |
| Shield | yes |
| Transmission characteristics | as per system communication AP |
| Cable length | 0.45 m |
| Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 62 mm |
| Bending radius, flexible cable installation | ≥ 62 mm |
| Cable diameter | 6.2 mm |
| Cable design | 2 x AWG22 + 2 x (2 x AWG26)C + 1 x (2 x AWG28) |
| Nominal conductor cross section | 0.32 mm² |
| Degree of protection | IP20 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -10 °C ... 80 °C |
| Ambient temperature with flexible cable installation | -10 °C ... 80 °C |
| Storage temperature | -10 °C ... 80 °C |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Contamination level | 1 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Material of cable sheath | PVC |
| Color cable sheath | Black |
| Housing material | PVC |
| Housing colour | Black |
| Insulating sheath material | PVC |
