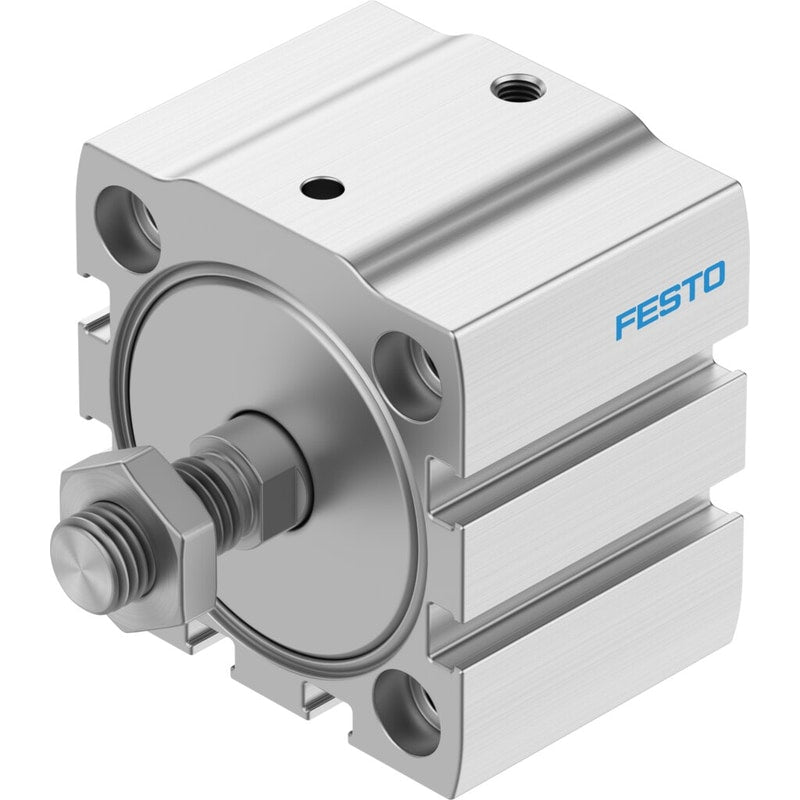

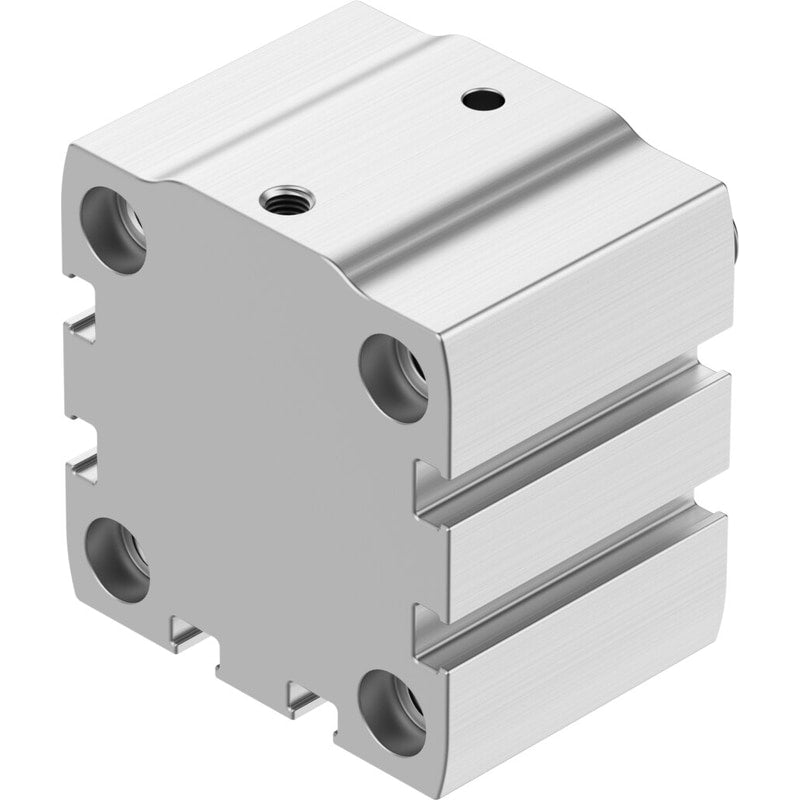

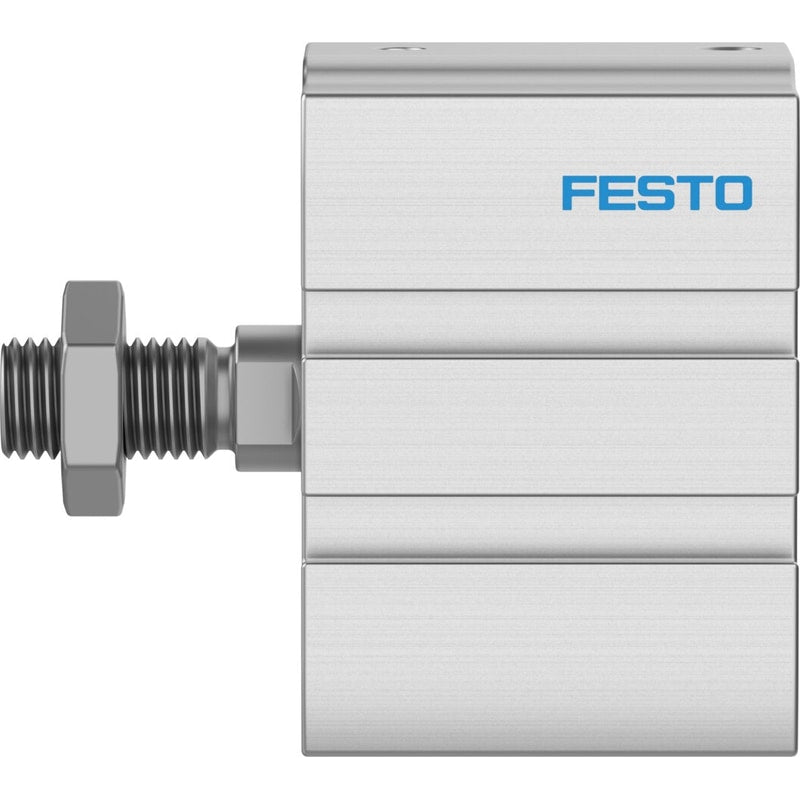

Compact cylinder
AEN-S-40-5-A-P-A
8092162
GTIN 4052568302108
Vendor Festo
- Mode of operation
- Pushing
- Piston diameter
- 40 mm
- Theoretical force at 6 bar, advancing
- 700 N
- Stroke
- 5 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
Regular price
$74.56
Unit price
AEN-S-40-5-A-P-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
AEN-S-40-5-A-P-A
Regular price
$74.56
Unit price
AEN-S-40-5-A-P-A is backordered and will ship as soon as it is back in stock.
| Stroke | 5mm |
|---|---|
| Piston diameter | 40 mm |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Mode of operation | Pushing |
| Piston rod end | External thread |
| Structural design | Piston |
| Position sensing | For proximity sensor |
| Symbol | 00991729 |
| Variants | Piston rod at one end |
| Operating pressure | 0.06MPa |
| Operating pressure | 0.6bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 0°C |
| Impact energy in the end positions | 0.7J |
| Theoretical force at 6 bar, retracting | 38N |
| Theoretical force at 6 bar, advancing | 700N |
| Moving mass at 0 mm stroke | 62g |
| Additional moving mass per 10 mm stroke | 9g |
| Basic weight with 0 mm stroke | 304g |
| Additional weight per 10 mm stroke | 45g |
| Type of mounting | Optionally: |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy, anodized |
| Material of dynamic seals | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel |
