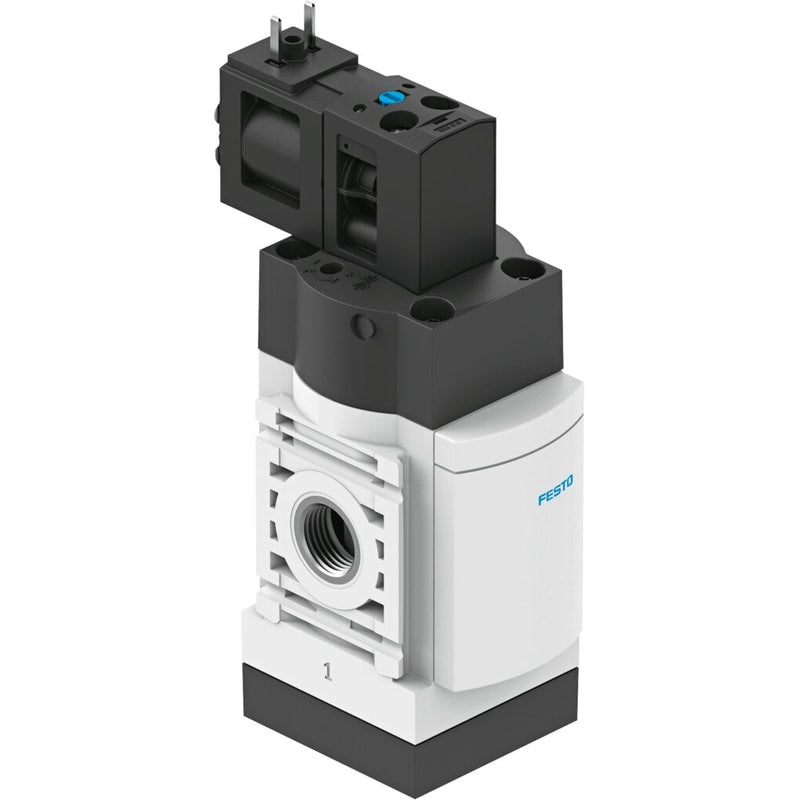

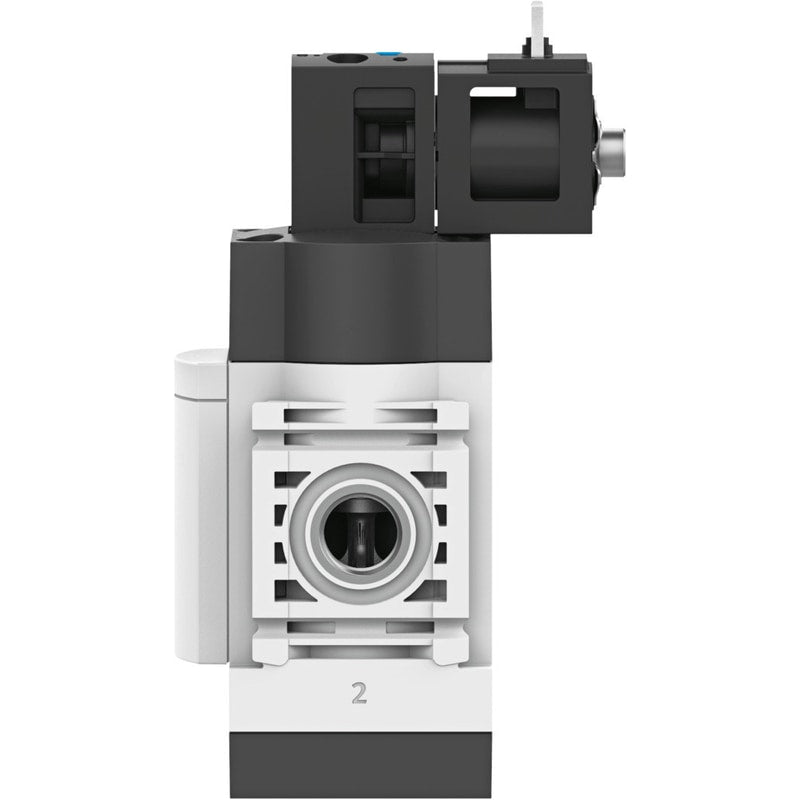

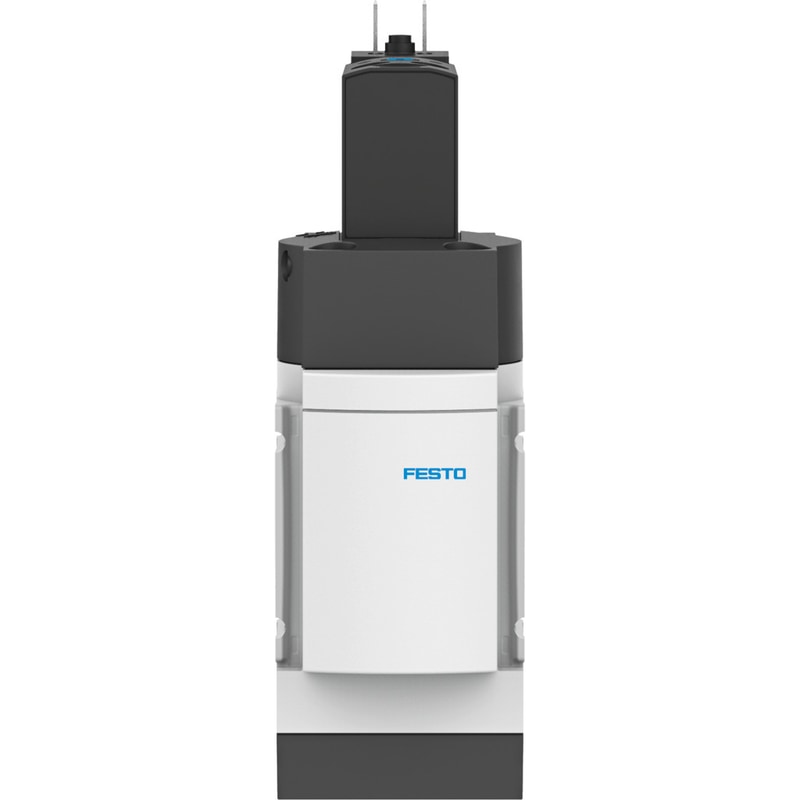

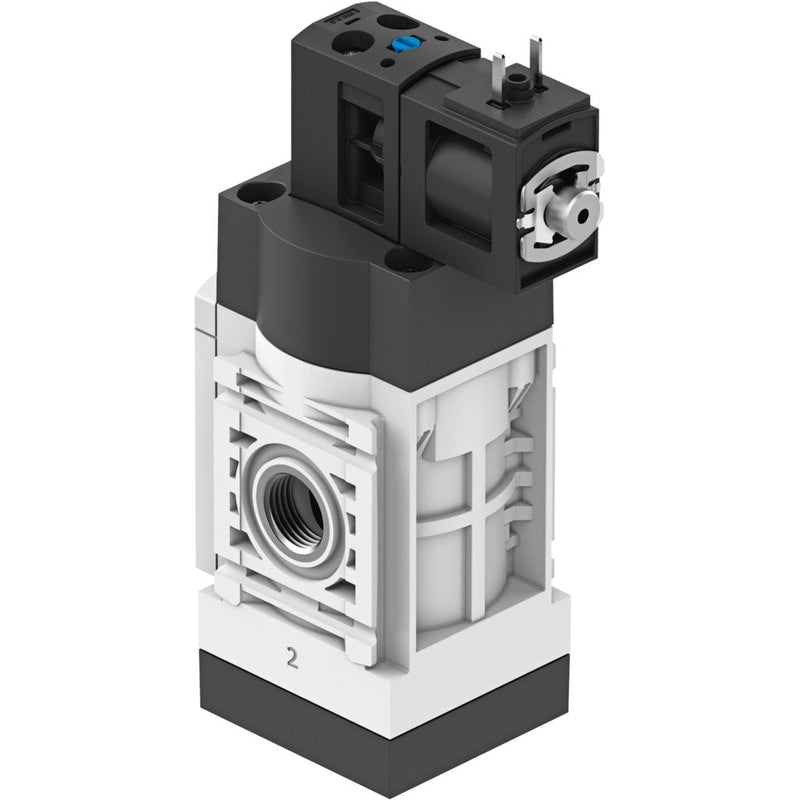

On/off valve
MS4-EE-1/4-V24-B
8091771
GTIN 4052568477950
Vendor Festo
- Pneumatic connection 1
- G1/4
- Normal nominal flow rate (normalized to DIN 1343)
- 2000 l/min
Regular price
$97.74
Unit price
On/off valve MS4-EE-1/4-V24-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS4-EE-1/4-V24-B
Regular price
$97.74
Unit price
On/off valve MS4-EE-1/4-V24-B is backordered and will ship as soon as it is back in stock.
| Series | MS |
|---|---|
| Size | 4 |
| Width dimension | 40 mm |
| Structural design | Poppet valve, electrically actuated |
| Manual override | Detenting Non-detenting |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Symbol | 00991008 |
| Valve function | 3/2, closed, monostable |
| Operating pressure | 0.3 MPa ... 0.7 MPa |
| Operating pressure | 3 bar ... 7 bar |
| C value | 8.36 l/sbar |
| b-value | 0.49 |
| Standard nominal flow rate | 2000 l/min |
| Standard flow rate exhaust 6-> 0 bar | 1600 l/min |
| Coil characteristics | 24 V DC: 2.3 W |
| Permissible voltage fluctuations | +/- 10 % |
| On time | 29 ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Note on materials | RoHS-compliant |
| LABS conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5 °C ... 50 °C |
| Degree of protection | IP65 |
| Ambient temperature | -5 °C ... 50 °C |
| Type of mounting | With wall/surface bracket |
| Mounting position | Vertical +/- 5° |
| Product weight | 194 g |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Pneumatic connection 3 | G1/4 |
| Pilot air supply port | Internal |
| Electrical connection | Form C as per EN 175301-803 |
| Signal status display | With accessories |
| Seals material | HNBR NBR |
| Housing material | PA-reinforced |
