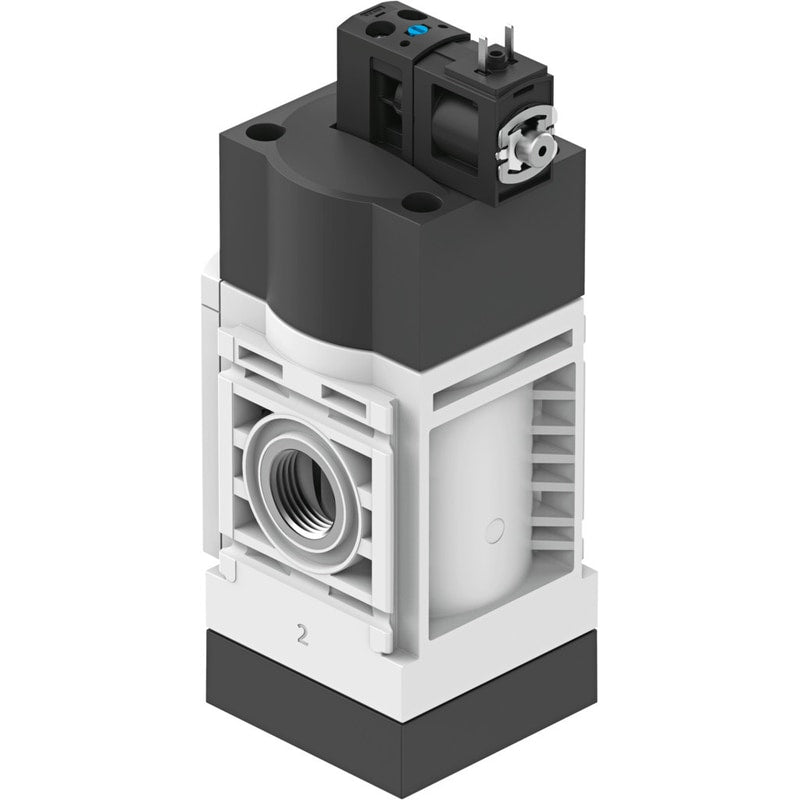

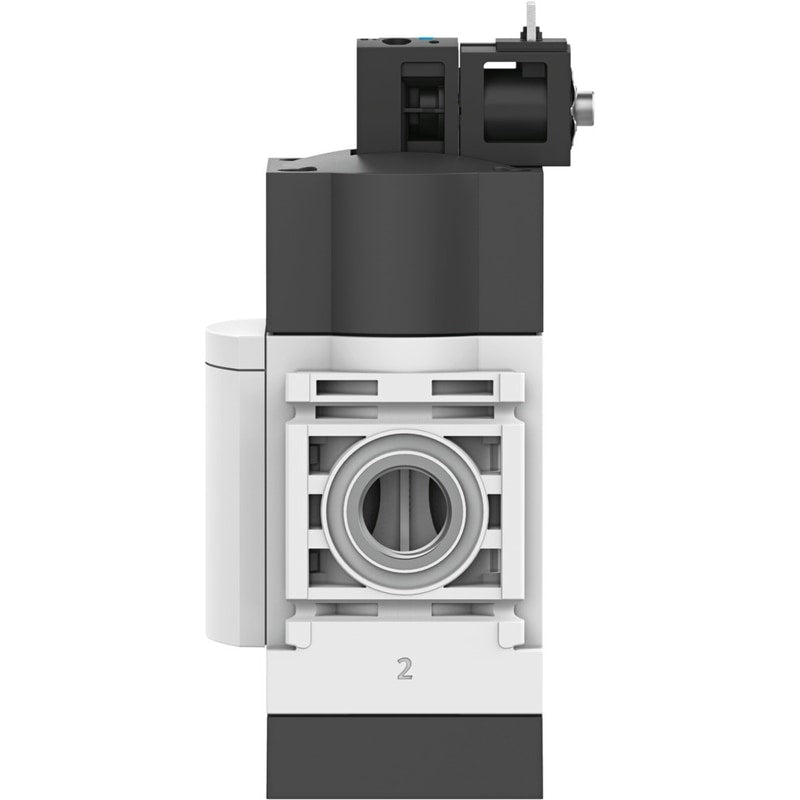

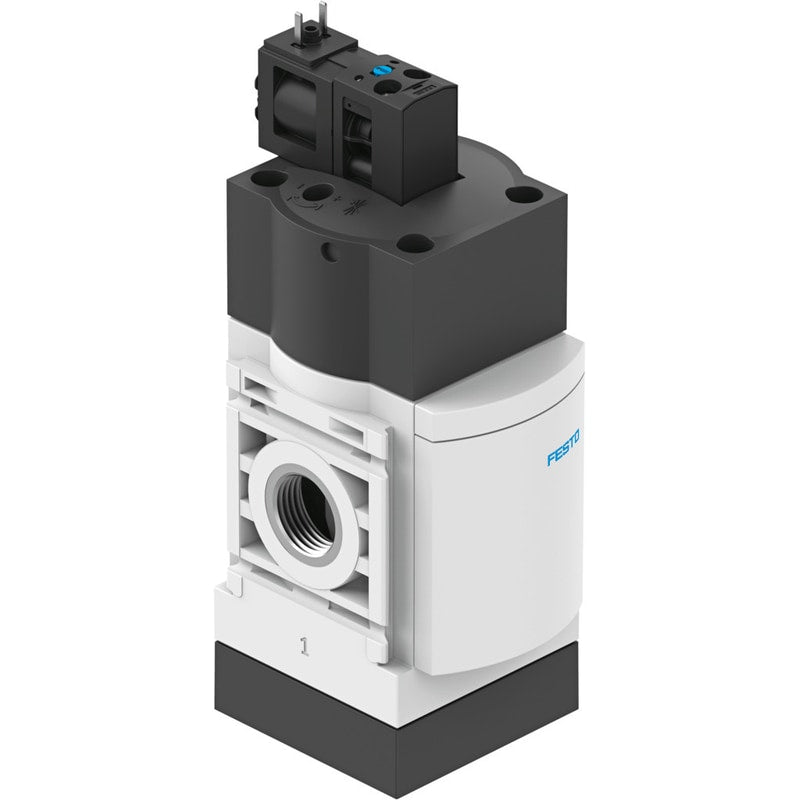

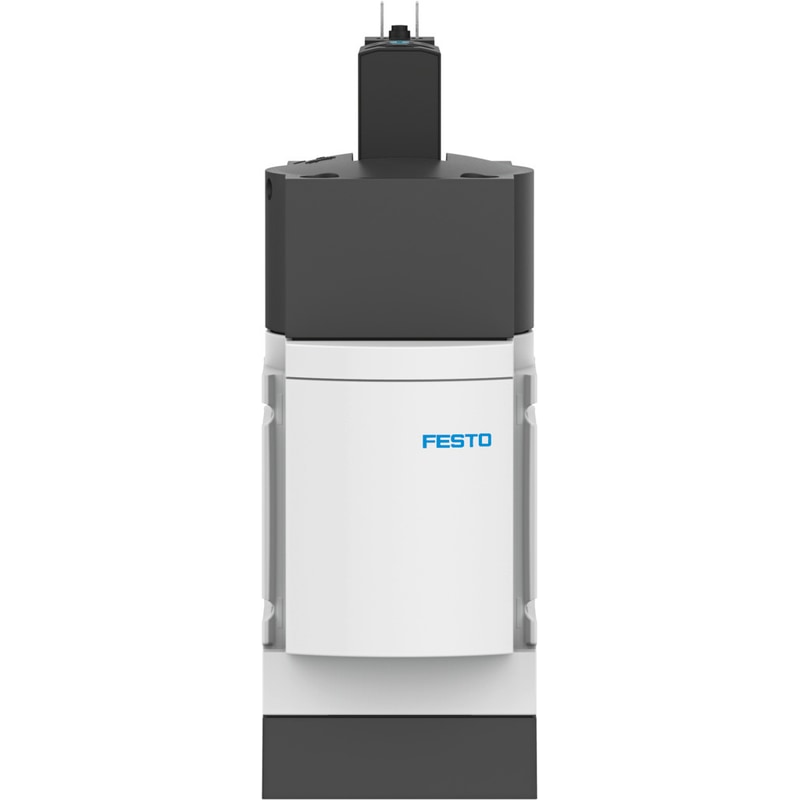

On/off valve
MS6-EE-1/2-V24-B
8091578
GTIN 4052568588625
Vendor Festo
- Pneumatic connection 1
- G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 5000 l/min
Regular price
$115.72
Unit price
On/off valve MS6-EE-1/2-V24-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6-EE-1/2-V24-B
Regular price
$115.72
Unit price
On/off valve MS6-EE-1/2-V24-B is backordered and will ship as soon as it is back in stock.
| Series | MS |
|---|---|
| Size | 6 |
| Width dimension | 62mm |
| Structural design | Poppet valve, electrically actuated |
| Manual override | Detenting |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Symbol | 00991008 |
| Valve function | 3/2, closed, monostable |
| Operating pressure | 0.3MPa |
| Operating pressure | 3bar |
| Standard nominal flow rate | 5000l/min |
| Coil characteristics | 24 V DC: 2.3 W |
| Permissible voltage fluctuations | +/- 10 % |
| On time | 29ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C |
| Degree of protection | IP65 |
| Ambient temperature | -5°C |
| Type of mounting | With wall/surface bracket |
| Mounting position | Vertical +/- 5° |
| Product weight | 517g |
| Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 |
| Pneumatic connection 3 | G1/2 |
| Pilot air supply port | Internal |
| Electrical connection | Form C |
| Signal status display | With accessories |
| Seals material | HNBR |
| Housing material | PA-reinforced |
