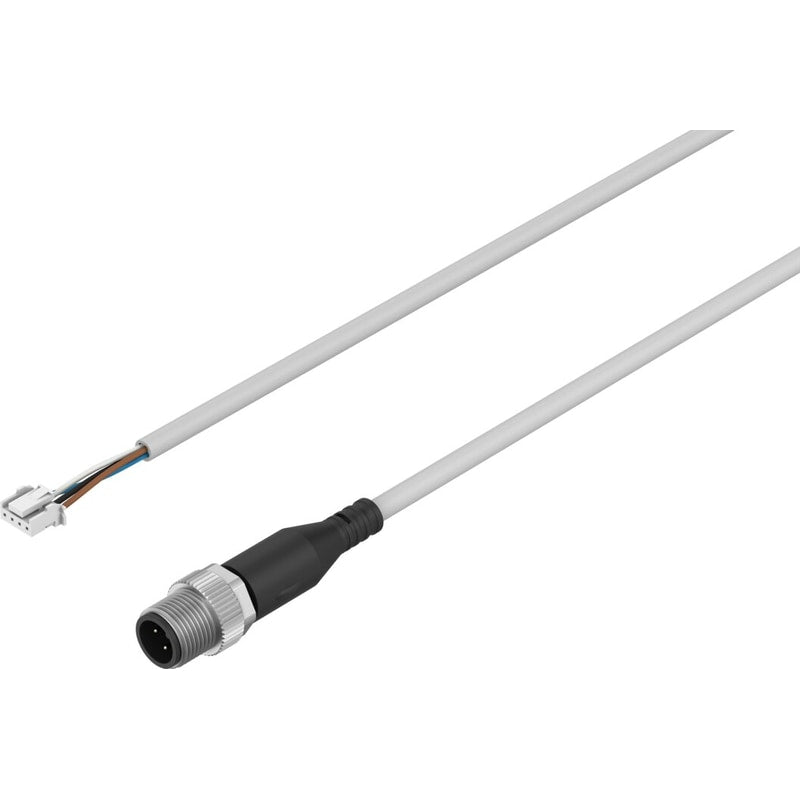

Connecting cable
NEBS-L1G4-K-1-N-M12G4
8091514
GTIN 4052568451837
Vendor Festo
- Cable length
- 1 m
Regular price
$27.60
Unit price
NEBS-L1G4-K-1-N-M12G4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBS-L1G4-K-1-N-M12G4
Regular price
$27.60
Unit price
NEBS-L1G4-K-1-N-M12G4 is backordered and will ship as soon as it is back in stock.
| Type code | NEBS |
|---|---|
| Cable designation | Without label holder |
| Contact durability | 100 |
| Product weight | 40 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | Connection diagram L1J |
| Electrical connection 1, number of pins/wires | 4 |
| Electrical connection 1, occupied pins/wires | 4 |
| Electrical connection 1, type of mounting | Snap-locking |
| Electrical connection for input 1, connection pattern | 995720 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Round |
| Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 2, number of pins/wires | 4 |
| Electrical connection 2, occupied pins/wires | 4 |
| Electrical connection 2, type of mounting | Screw-type lock with hexagon AF 13 and longitudinal knurl |
| Electrical connection 2, connection pattern | 995386 |
| DC operating voltage range | 0 V ... 30 V |
| Surge resistance | 0.8 kV |
| Cable length | 1 m |
| Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 14 mm |
| Bending radius, flexible cable installation | ≥ 46 mm |
| Cable diameter | 4.5 mm |
| Cable diameter tolerance | ± 0.1 mm |
| Cable design | 4 x 0.25 mm² |
| Nominal conductor cross section | 0.25 mm² |
| Degree of protection | IP65IP67IP69K |
| Note on degree of protection | IP40 for plug connection pattern L1JIn mounted state |
| Ambient temperature | -20 °C ... 60 °C |
| Ambient temperature with flexible cable installation | -5 °C ... 60 °C |
| Storage temperature | -20 °C ... 60 °C |
| Note on materials | RoHS-compliantHalogen-free |
| Contamination level | 2 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray |
| Housing material | PATPE-U(PUR) |
| Housing colour | BlackWhite |
| Material of screw-type lock | Brass, nickel-plated |
| Material of pin contacts | Tin-plated bronzeBrass, gold-plated |
| Insulating sheath material | PP |
