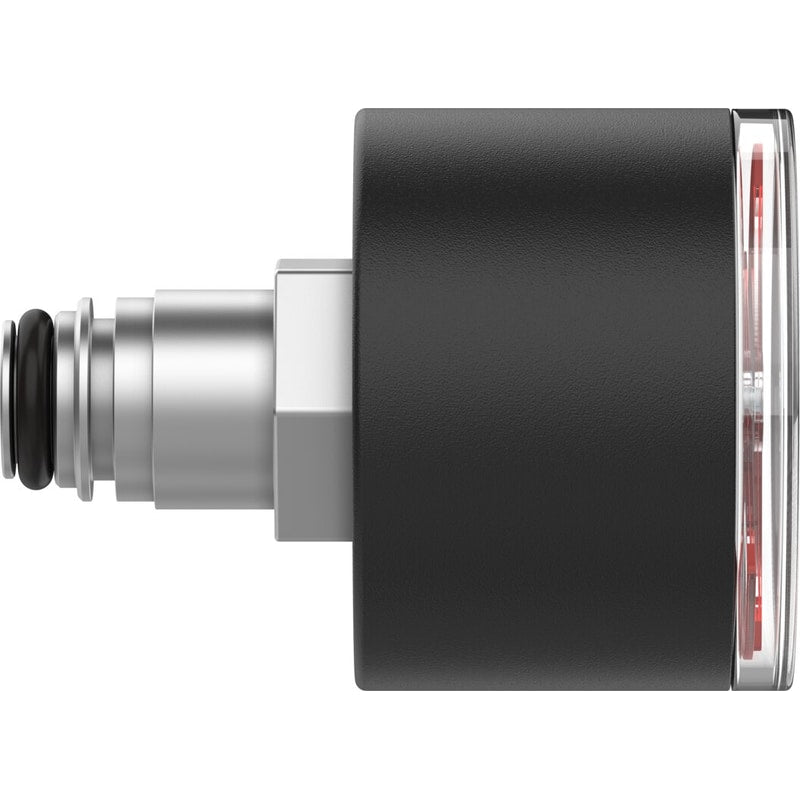

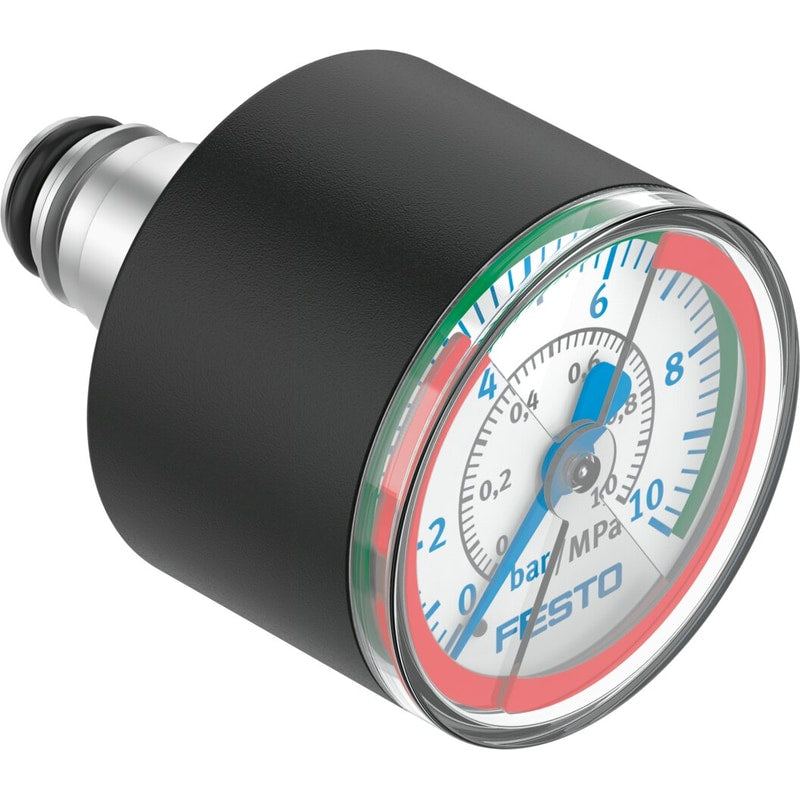

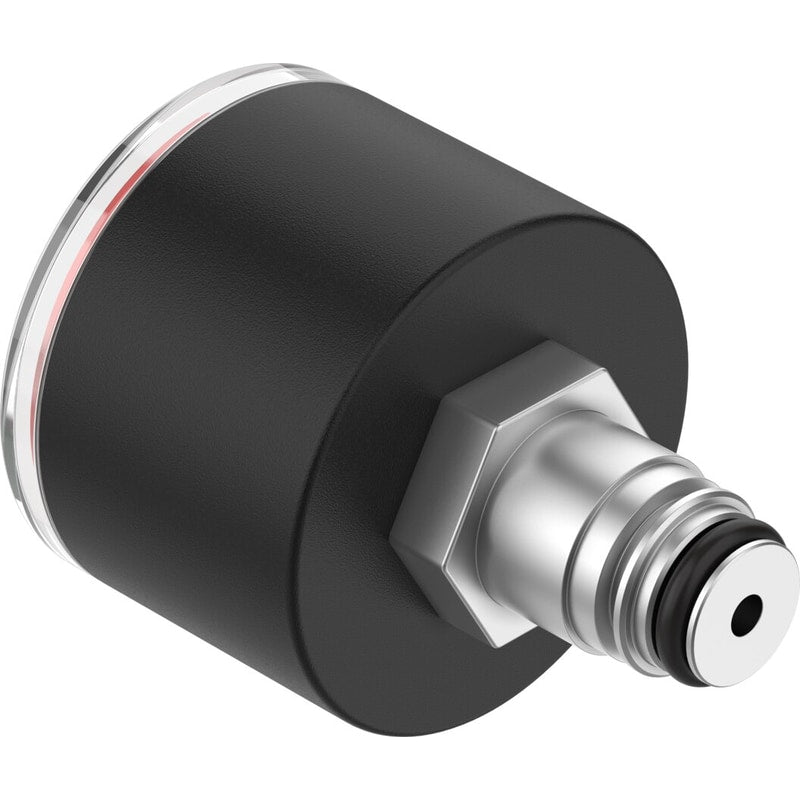

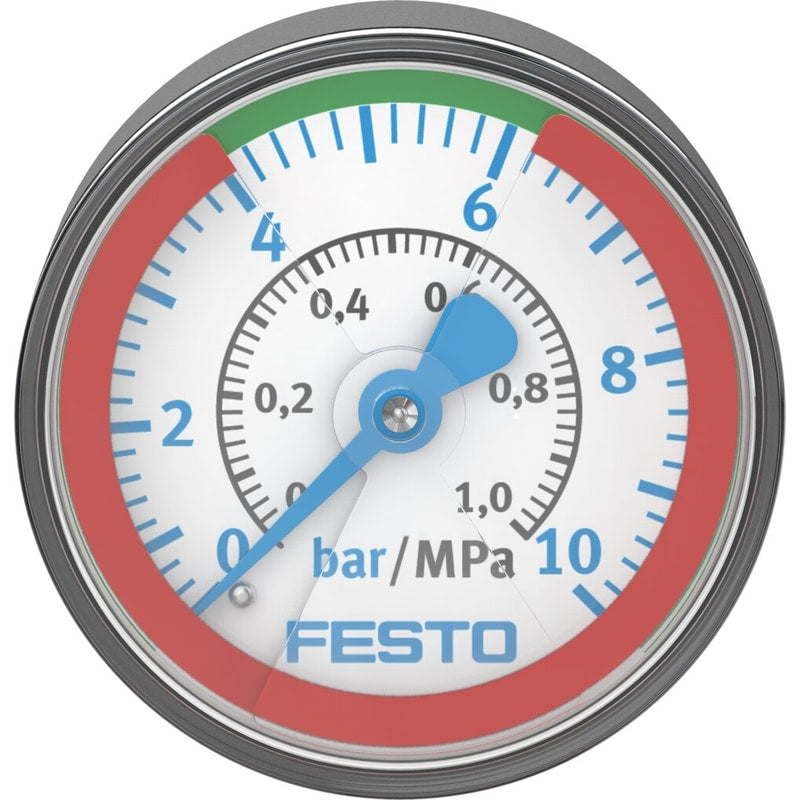

Pressure gauge
PAGN-26-10-P10-RG
8090378
GTIN 4052568462178
Vendor Festo
- Type of mounting
- Line installation
- Display range
- 0 bar - 10 bar
- Pneumatic connection
- Cartridge 10 mm
- Measurement accuracy class
- 4
- Display range
- 0 MPa - 1 MPa
Regular price
$28.29
Unit price
Pressure gauge PAGN-26-10-P10-RG is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PAGN-26-10-P10-RG
Regular price
$28.29
Unit price
Pressure gauge PAGN-26-10-P10-RG is backordered and will ship as soon as it is back in stock.
| Display range | 0 bar ... 10 bar |
|---|---|
| Type code | PAGN |
| Symbol | 00991463 |
| Pressure gauge nominal size | 26 |
| Design | Bourdon tube pressure gauge without measuring mechanism |
| Type of mounting | Line installation |
| Operating medium | Inert gasNeutral liquids |
| Operating pressure | 0 bar ... 10 bar |
| Intermittent load factor | 0.66 |
| Measurement accuracy class | 4 |
| Degree of protection | IP43 |
| Temperature of medium | -20 °C ... 60 °C |
| Ambient temperature | -20 °C ... 60 °C |
| Note on materials | RoHS-compliant |
| Connection position | Centered on rear side |
| Pneumatic connection | Cartridge 10 mm |
| Materials in contact with the media | Brass |
| Material of screwed trunnion | Brass |
| Housing material | PA |
| Inspection window material | PS |
| Housing colour | Black |
| Product weight | 15 g |
| Information on operating and pilot media | No acetyleneNo oxygen |
