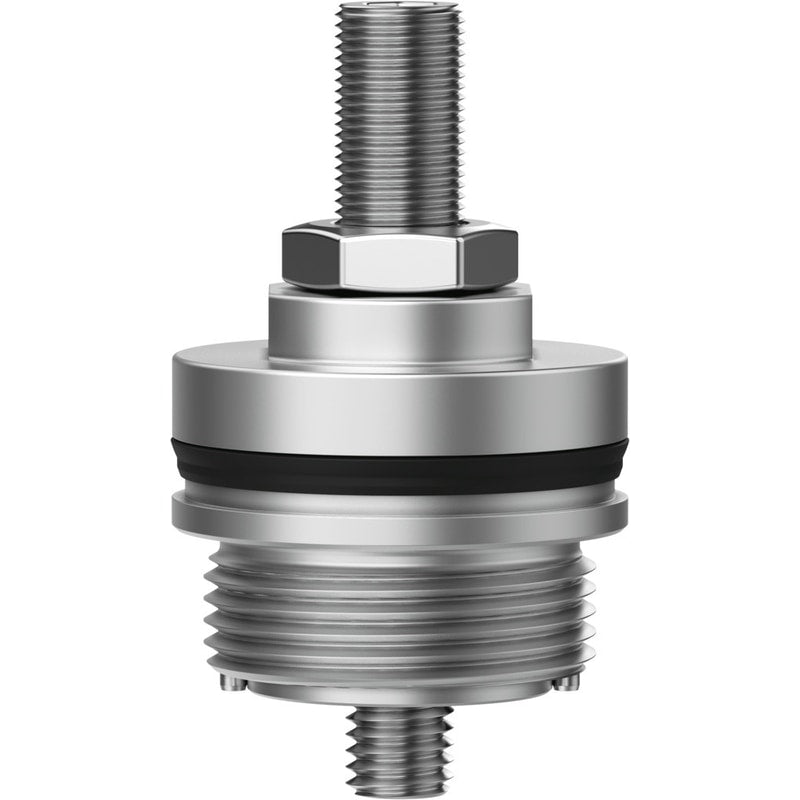

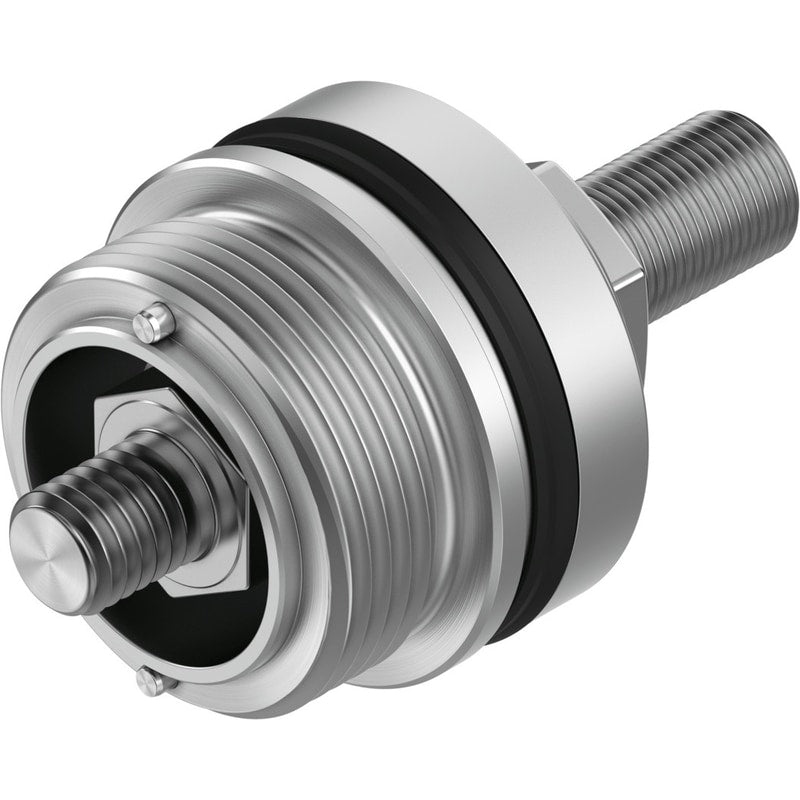

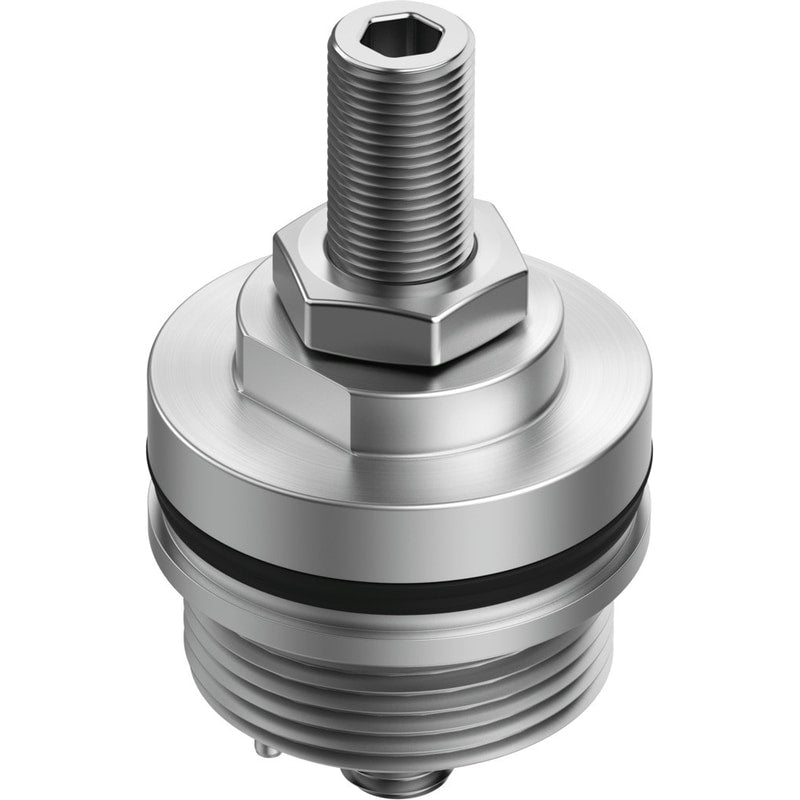

Stroke reduction
VAVA-F12-H-H1
8089993
GTIN 4052568550417
Vendor Festo
Regular price
$71.80
Unit price
VAVA-F12-H-H1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAVA-F12-H-H1
Regular price
$71.80
Unit price
VAVA-F12-H-H1 is backordered and will ship as soon as it is back in stock.
| Shock absorber material | High-alloy steel |
|---|---|
| Material of screws | High-alloy stainless steel |
| Connector material | High-alloy stainless steel |
| Seals material | EPDM |
| Design | Opening stroke limitation |
| Nut material | High-alloy stainless steel |
| Application note | In case of use with angle seat valve VZXA, the SIL license on the overall product is invalidated. |
| Type code | VAVA |
| Mounting position | Any |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Storage temperature | -10 °C ... 60 °C |
| Degree of protection | IP6X |
| Ambient temperature | -50 °C ... 100 °C |
| Product weight | 253 g |
| Note on materials | RoHS-compliant |
