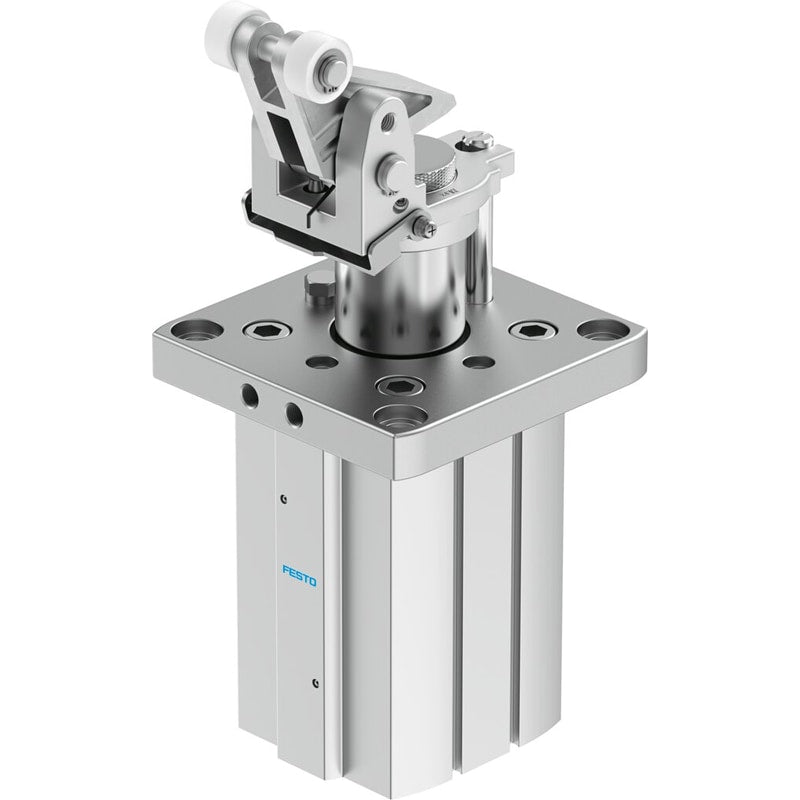

Stopper cylinder
DFST-80-40-L-Y4-A-S-G2
8089690
GTIN 4052568456450
Vendor Festo
- Piston diameter
- 80 mm
- Permissible impact force on the advanced piston rod
- 6000 N
- Stroke
- 40 mm
- Position sensing
- For proximity sensor
Regular price
$1,314.96
Unit price
DFST-80-40-L-Y4-A-S-G2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DFST-80-40-L-Y4-A-S-G2
Regular price
$1,314.96
Unit price
DFST-80-40-L-Y4-A-S-G2 is backordered and will ship as soon as it is back in stock.
| Stroke | 40 mm |
|---|---|
| Piston diameter | 80 mm |
| Type code | DFST |
| Cushioning | Elastic cushioning rings/pads at both endsPneumatic shock absorber, adjustable, at front |
| Mounting position | Vertical |
| Mode of operation | Double-actingPulling |
| Design | Piston rod with toggle lever |
| Position sensing | For proximity sensor |
| Toggle lever position query | For inductive proximity sensors |
| Symbol | 991204 |
| Protection against torsion/guide | Guide rod |
| Operating pressure | 2 bar ... 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Ambient temperature | 5 °C ... 60 °C |
| Cushioning length | 20 mm |
| Permissible impact force on the advanced piston rod | 6000 N |
| Product weight | 6350 g |
| Type of mounting | With through-hole |
| Pneumatic connection | G1/8 |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Cover material | Die-cast aluminum |
| Seals material | NBR |
| Piston rod material | High-alloy stainless steel |
| Roller material | Steel |
