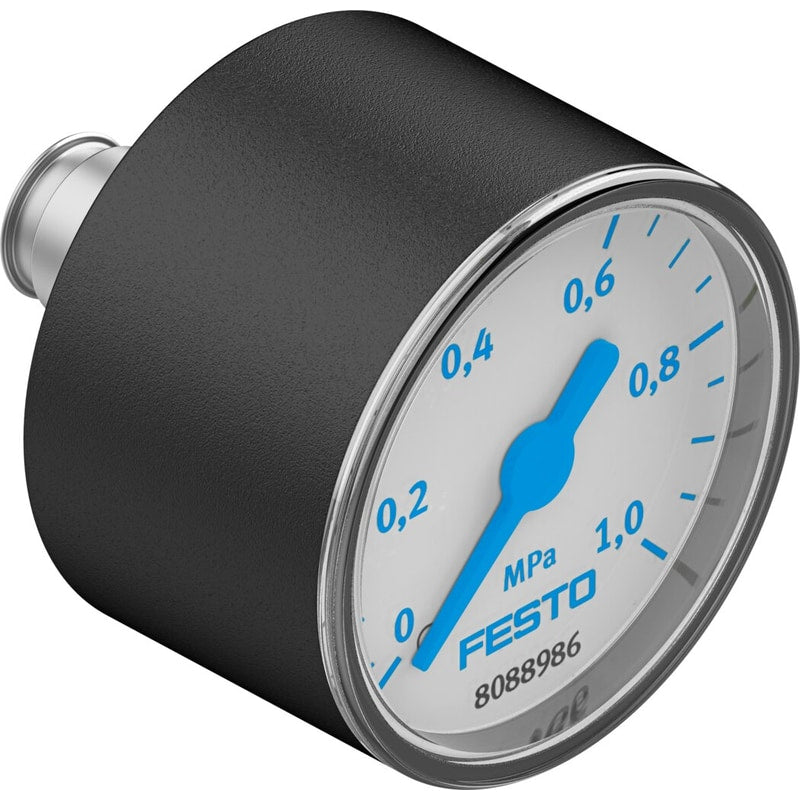

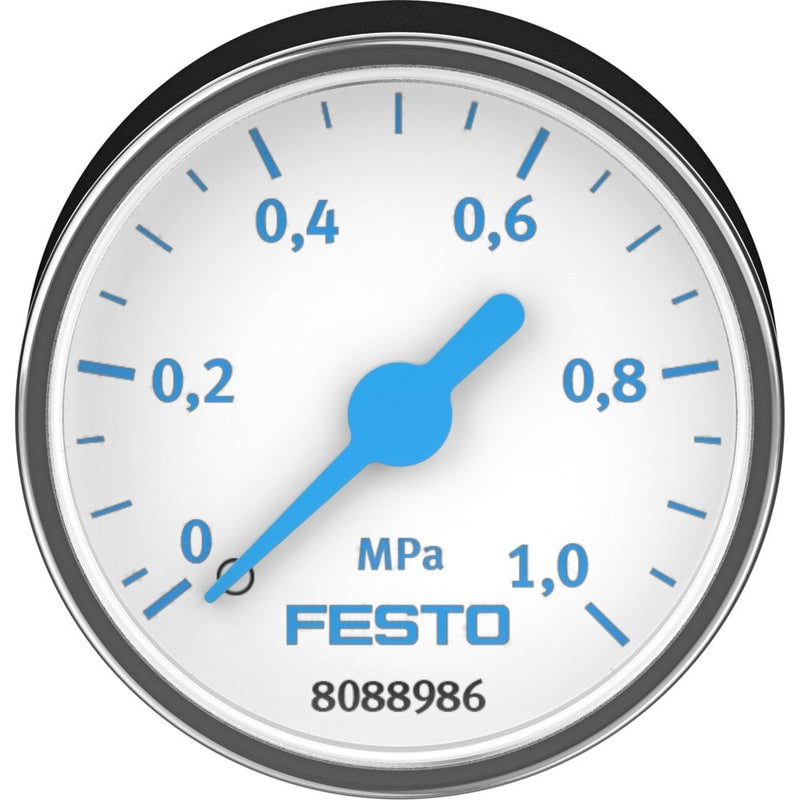

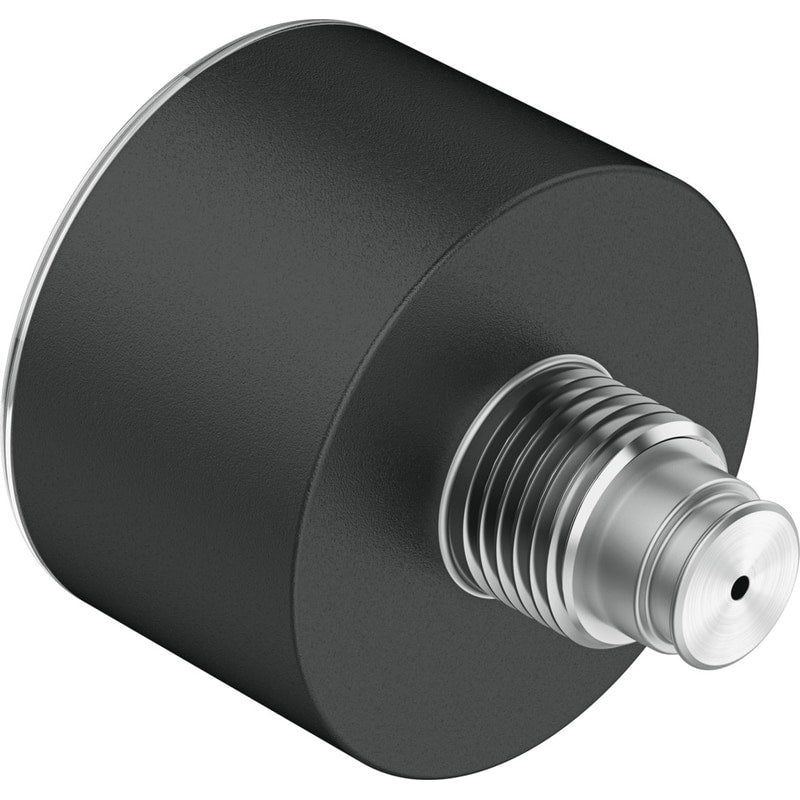

Pressure gauge
PAGN-26-1M-G18S
8088986
GTIN 4052568572921
Vendor Festo
- Type of mounting
- Line installation
- Display range
- 0 bar - 10 bar
- Pneumatic connection
- G1/8 with sealing ring
- Measurement accuracy class
- 4
- Display range
- 0 MPa - 1 MPa
Regular price
$8.78
Unit price
Pressure gauge PAGN-26-1M-G18S is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PAGN-26-1M-G18S
Regular price
$8.78
Unit price
Pressure gauge PAGN-26-1M-G18S is backordered and will ship as soon as it is back in stock.
| Display range | 0 bar ... 10 bar |
|---|---|
| Display range | 0 MPa ... 1 MPa |
| Display range | 0 psi ... 145 psi |
| Symbol | 00991463 |
| Pressure gauge nominal size | 26 |
| Structural design | Bourdon tube pressure gauge |
| Type of mounting | Line installation |
| Operating medium | Inert gas Neutral liquids |
| Operating pressure | 0 MPa ... 1 MPa |
| Operating pressure | 0 bar ... 10 bar |
| Operating pressure | 0 psi ... 145 psi |
| Intermittent load factor | 0.66 |
| Measurement accuracy class | 4 |
| Degree of protection | IP43 |
| Storage temperature | -5 °C ... 50 °C |
| Temperature of medium | -5 °C ... 50 °C |
| Ambient temperature | -5 °C ... 50 °C |
| Note on materials | RoHS-compliant |
| Connection position | Centered on rear side |
| Pneumatic connection | G1/8 with sealing ring |
| Materials in contact with the media | ABS Brass |
| Material of screwed trunnion | ABS |
| Housing material | ABS |
| Inspection window material | PS |
| Housing colour | Black |
| Product weight | 8 g |
| Information on operating and pilot media | No acetylene No oxygen |
