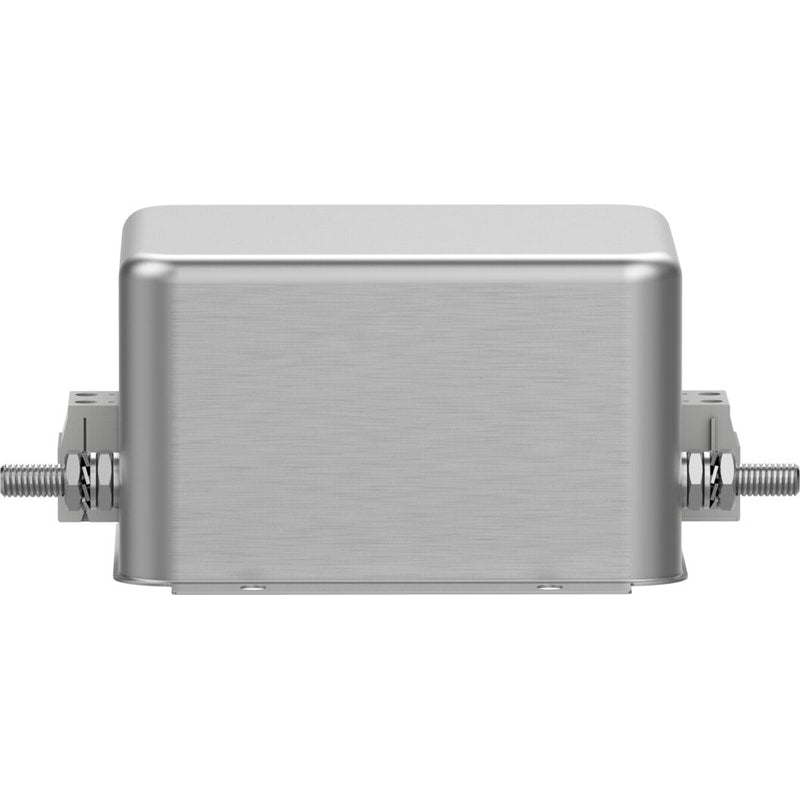

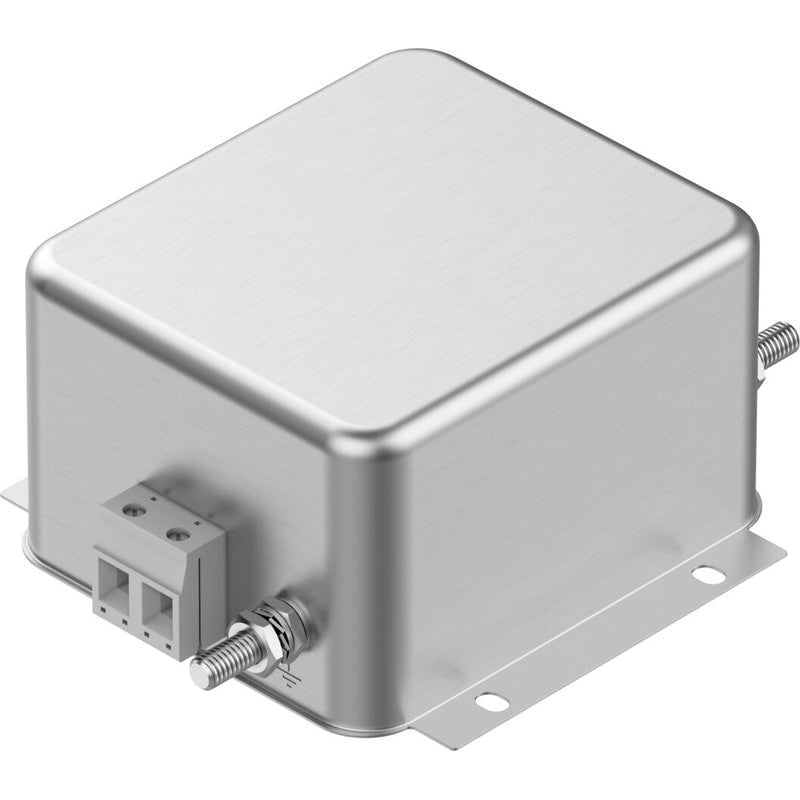

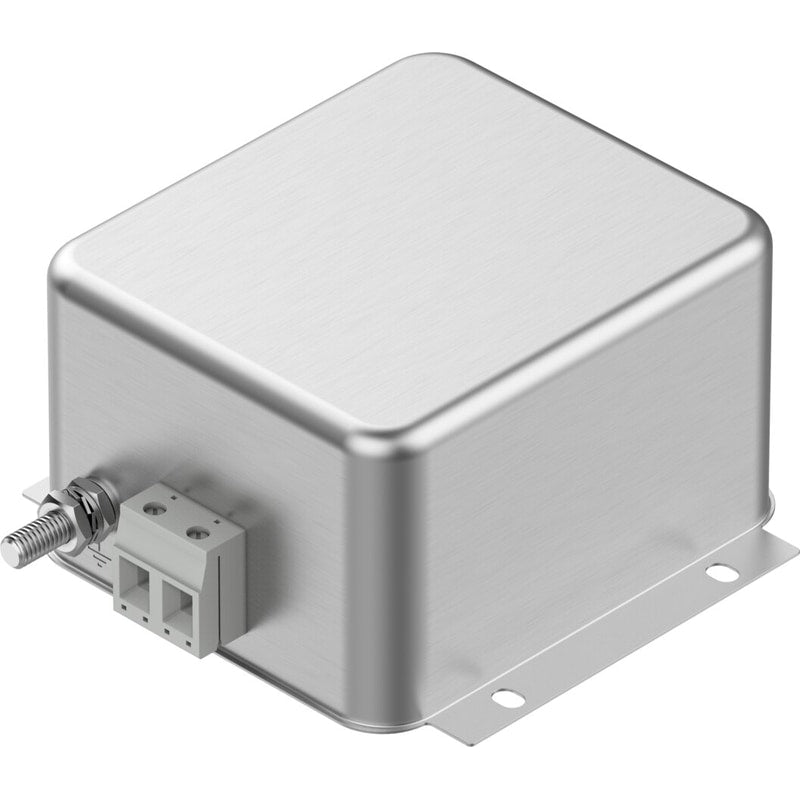

Line filter
CAMF-C6-F-C8-3A
8088928
GTIN 4052568451738
Vendor Festo
Regular price
$335.28
Unit price
CAMF-C6-F-C8-3A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CAMF-C6-F-C8-3A
Regular price
$335.28
Unit price
CAMF-C6-F-C8-3A is backordered and will ship as soon as it is back in stock.
| Electrical connection 1, connection type | Terminal strip |
|---|---|
| Electrical connection 2, connection type | Terminal strip |
| Electrical connection 1, connection technology | Screw terminal |
| Electrical connection 2, function | Power supply |
| Electrical connection 1, function | Power supply |
| Electrical connection 2, connection technology | Screw terminal |
| Electrical connection 1, occupied pins/wires | 2 |
| Electrical connection 2, occupied pins/wires | 2 |
| Electrical connection 1, number of pins/wires | 2 |
| Insulation voltage | 1100 V |
| Electrical connection 2, number of pins/wires | 2 |
| Mains frequency | 0 Hz ... 400 Hz |
| Electrical connection 1, conductor cross section | 4 mm² ... 6 mm² |
| Electrical connection 2, conductor cross section | 4 mm² ... 6 mm² |
| Short-circuit protection | no |
| Current rating at 40°C | 0.333333333333333 |
| Operating voltage range AC | 0 V ... 250 V |
| Certification | UL - Recognized (OL)ENECc UL - Recognized (OL) |
| CE marking (see declaration of conformity) | As per EU RoHS directive |
| Storage temperature | -25 °C ... 100 °C |
| Degree of protection | IP20 |
| Ambient temperature | -25 °C ... 100 °C |
| Product weight | 700 g |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Mounting position | Horizontal |
| Type code | CAMF |
