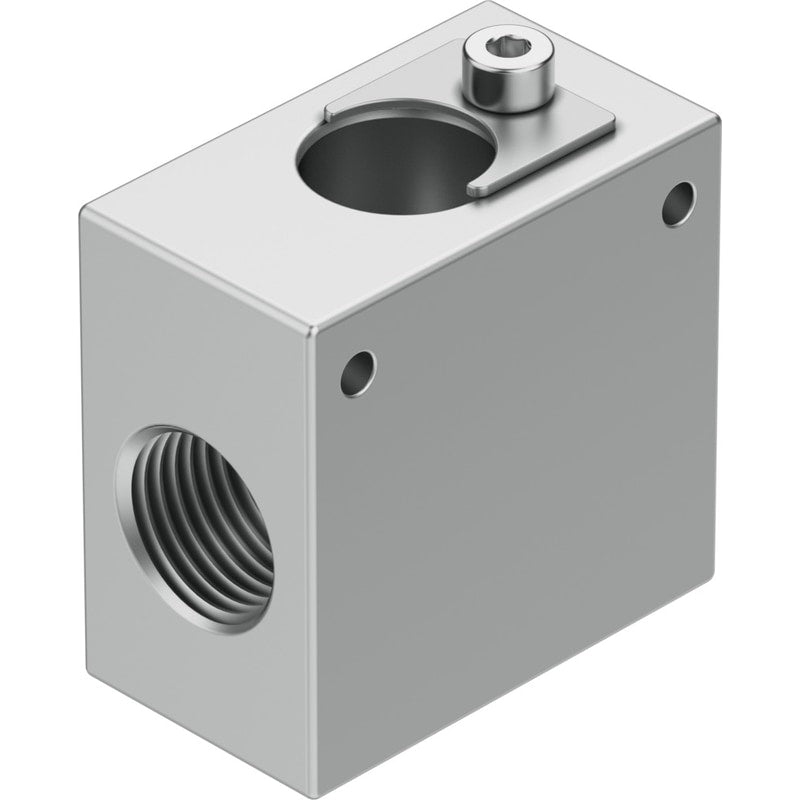

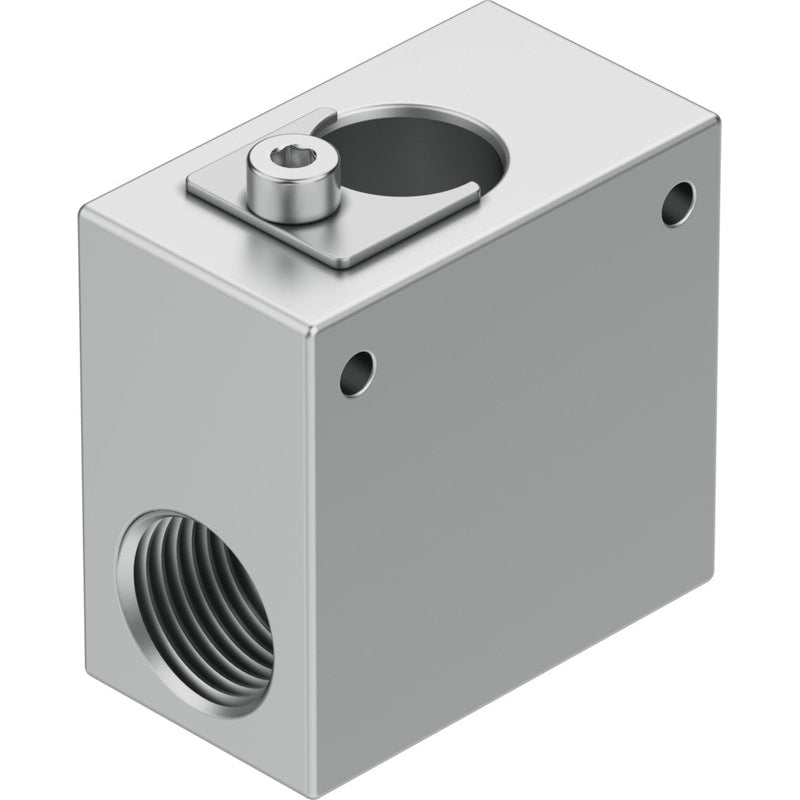

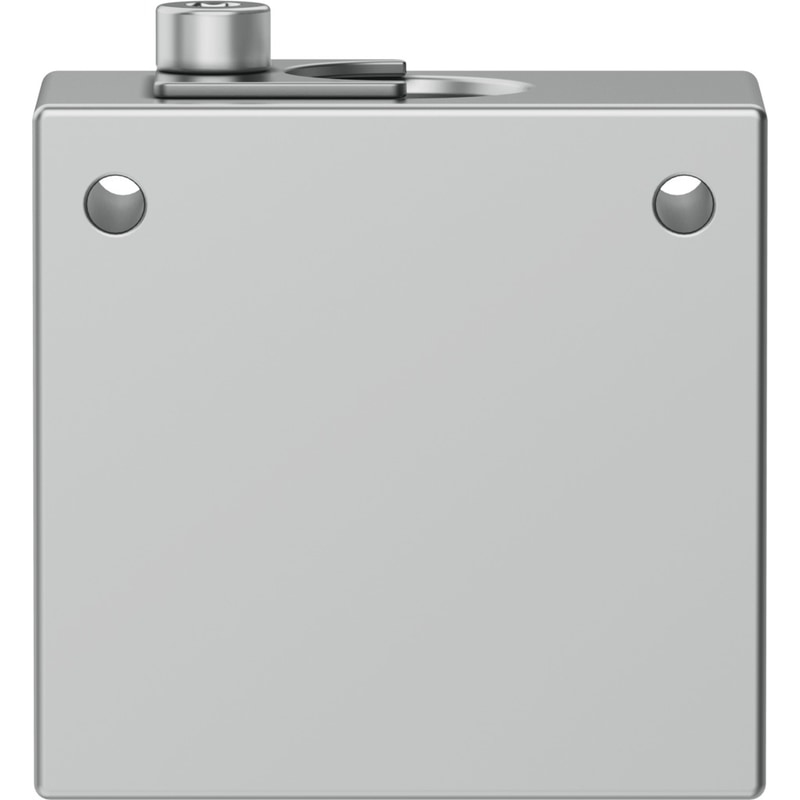

Manifold block
VABS-P4-20S-G38
8087328
GTIN 4052568566906
Vendor Festo
- Pneumatic connection 1
- G3/8
- Structural design
- Connection direction at side
- Material of sub-base
- Wrought aluminum alloy, anodized
Regular price
$48.24
Unit price
VABS-P4-20S-G38 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABS-P4-20S-G38
Regular price
$48.24
Unit price
VABS-P4-20S-G38 is backordered and will ship as soon as it is back in stock.
| Width | 25 mm |
|---|---|
| Mounting position | Any |
| Special features | Oxygen-compatible as per DIN EN 1797 |
| Structural design | Connection direction at side |
| Max. no. of valve positions | 1 |
| Operating pressure | 0 bar ... 6 bar |
| Operating medium | Inert gas Air Oxygen |
| Information on operating and pilot media | Operation with oil lubrication not possible Maximum particle size 10 µm |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Storage temperature | -40 °C ... 80 °C |
| Temperature of medium | 5 °C ... 50 °C |
| Ambient temperature | 5 °C ... 50 °C |
| Product weight | 97 g |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Material of sub-base | Wrought aluminum alloy, anodized |
