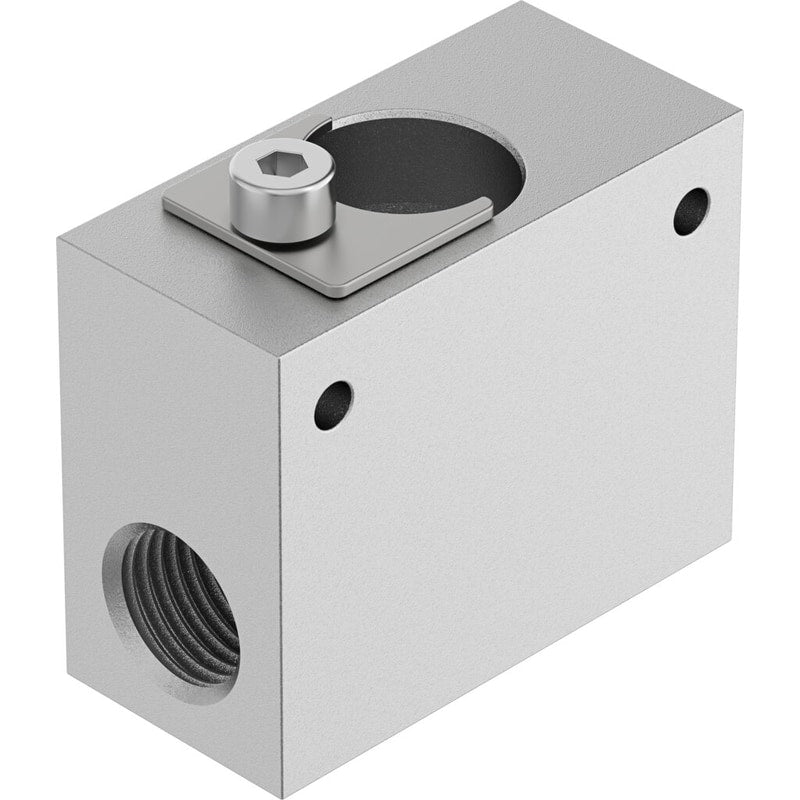

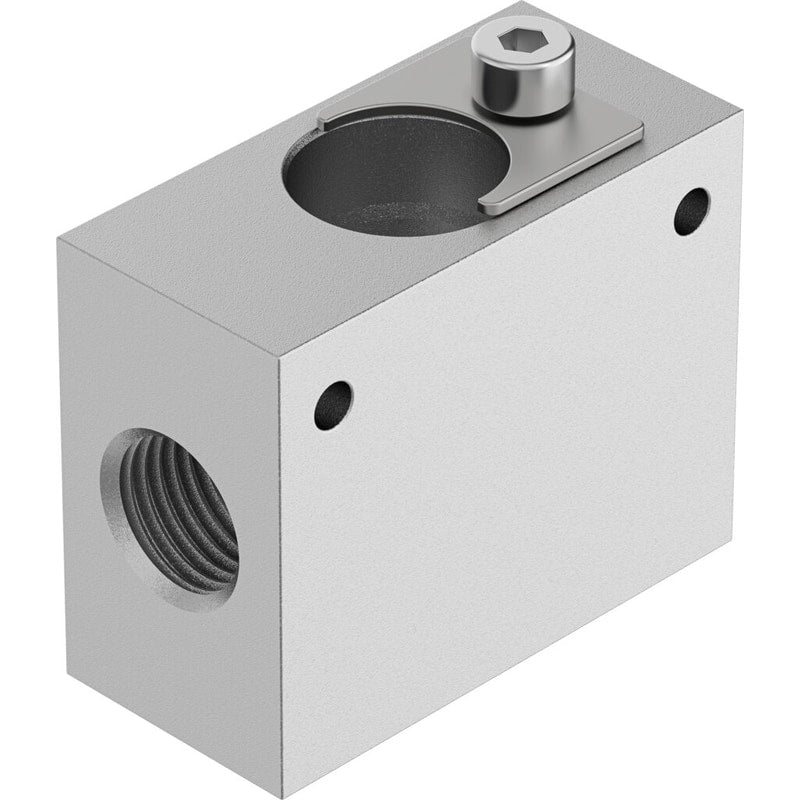

Manifold block
VABS-P4-10S-G14
8087327
GTIN 4052568457907
Vendor Festo
- Pneumatic connection 1
- G1/4
- Structural design
- Connection direction at side
- Material of sub-base
- Wrought aluminum alloy, anodized
Regular price
$48.24
Unit price
VABS-P4-10S-G14 Manifold block is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABS-P4-10S-G14
Regular price
$48.24
Unit price
VABS-P4-10S-G14 Manifold block is backordered and will ship as soon as it is back in stock.
- Special features
- Oxygen-compatible as per DIN EN 1797
- Width
- 21 mm
- Type code
- VABS
- Mounting position
- Any
- Design
- Connection direction at side
- Max. no. of valve positions
- 1
- Operating pressure
- 0 bar ... 8 bar
- Operating medium
- Inert gas
Oxygen
Air
- Information on operating and pilot media
- Maximum particle size 10 µm
Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Storage temperature
- -40 °C ... 80 °C
- Temperature of medium
- 5 °C ... 50 °C
- Ambient temperature
- 5 °C ... 50 °C
- Product weight
- 70 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G¼
- Note on materials
- Contains paint-wetting impairment substances
RoHS-compliant
- Material of sub-base
- Wrought aluminum alloy, anodized
