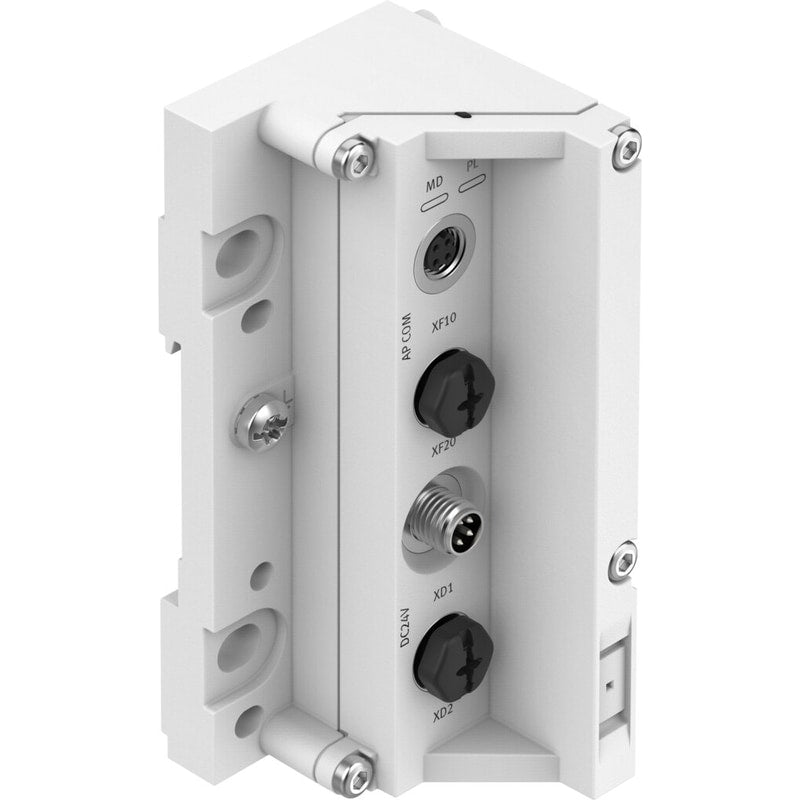

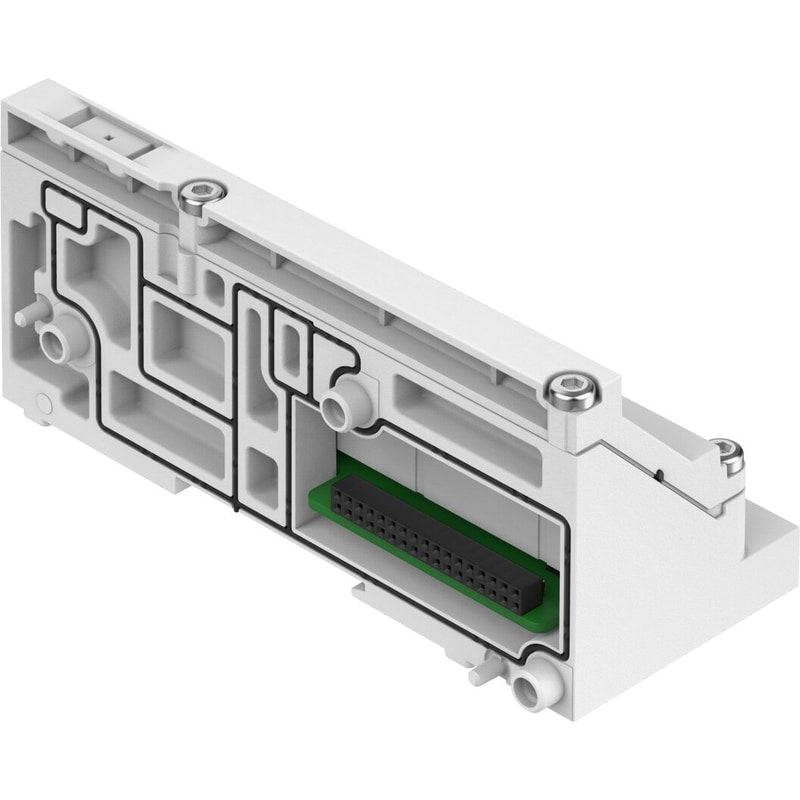

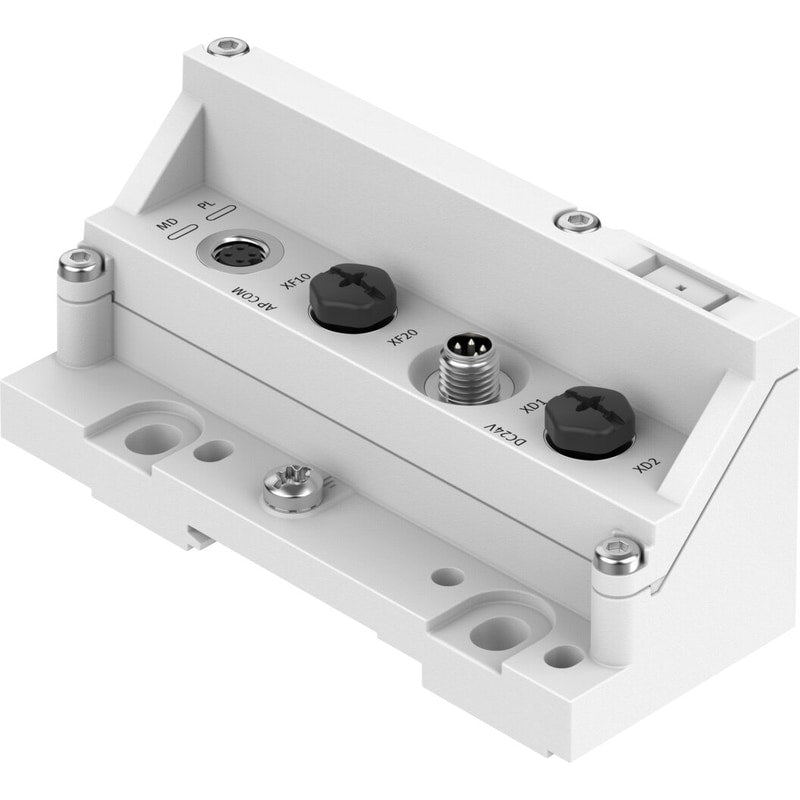

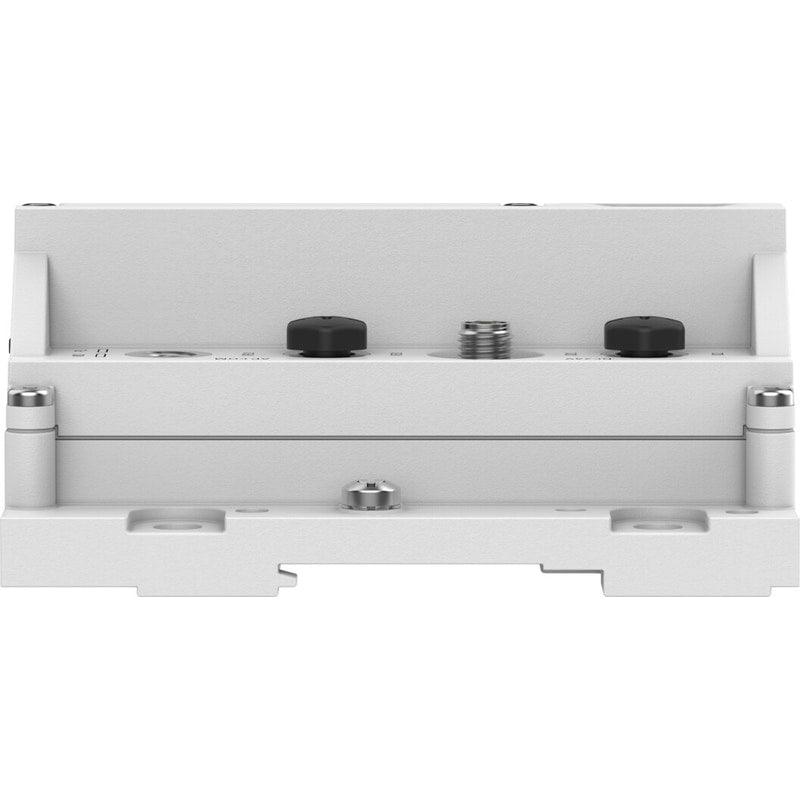

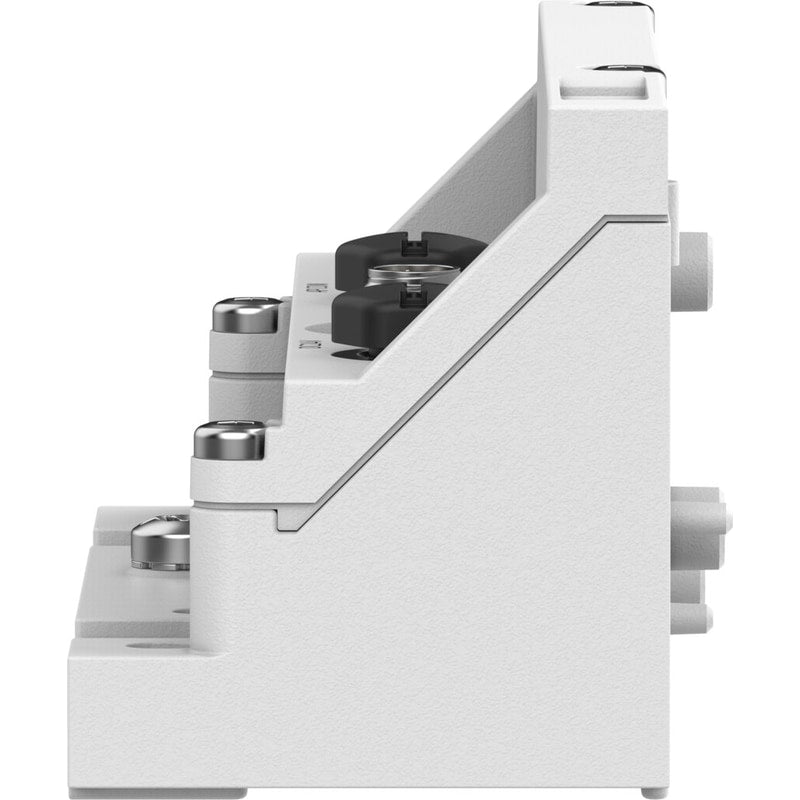

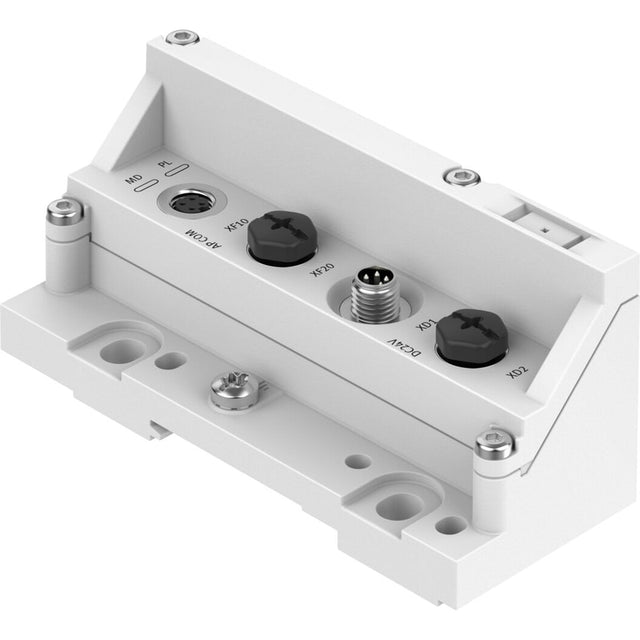

End plate
VMPAL-EPL-AP
8087171
GTIN 4052568459352
Vendor Festo
Regular price
$270.73
Unit price
VMPAL-EPL-AP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPAL-EPL-AP
Regular price
$270.73
Unit price
VMPAL-EPL-AP is backordered and will ship as soon as it is back in stock.
| Relative air humidity | 5 - 95 %Non-condensing |
|---|---|
| Note on degree of protection | In mounted stateUnused connections sealed |
| KC characters | KC EMC |
| Max. cable length | 50 m system communication |
| Protection against direct and indirect contact | PELVSELV |
| Diagnose per internal communication | Electronics/sensors overvoltageElectronics/sensors undervoltage |
| Connection position | Top |
| Voltage forwarding, connection type | Socket |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 30 mA |
| Communication interface, function | System communication XF10 IN / XF20 OUT |
| Diagnostics via LED | Diagnostics per moduleLoad power supply |
| Communication interface, shielding | yes |
| Intrinsic current consumption at nominal operating voltage load | Typically 15 mA |
| Electrical isolation of outputs between channel - internal communication | yes |
| Communication interface, connection technology | M8x1, D-coded as per EN 61076-2-114 |
| Voltage forwarding, connection technology | M8x1, A-coded as per EN 61076-2-104 |
| Voltage forwarding, function | Outgoing electronics/sensors and load |
| Communication interface, protocol | AP-COM |
| Dimensions W x L x H | 43.1 mm x 107.5 mm x 50.2 mm |
| Power supply, connection technology | M8x1, A-coded as per EN 61076-2-104 |
| Max. power supply | 2 x 4 A (external fuse required) |
| Nominal altitude of use above sea level | <= 2000 m NHN |
| Permissible voltage fluctuations load | ± 10% |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Power supply, function | Incoming electronics/sensors and load |
| Power supply, type of connection | Plug |
| Communication interface, connection type | 2x socket |
| Threaded sleeve material | Brass, nickel-plated |
| Power supply, number of pins/wires | 4 |
| Power failure buffering | 10 ms |
| Nominal operating voltage DC for electronics/sensors | 24 V |
| Voltage forwarding, number of pins/wires | 4 |
| Communication interface, number of pins/wires | 4 |
| Nominal operating voltage DC load | 24 V |
| Type code | VMPAL |
| Reverse polarity protection | yes |
| Max. no. of valve positions | 32 |
| Valve manifold design | Valve sizes can be mixed |
| Max. no. of solenoid coils | 32 |
| Fuse protection (short circuit) | Internal electronic fuse per channel |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Storage temperature | -40 °C ... 70 °C |
| Degree of protection | IP65IP67 |
| Ambient temperature | -5 °C ... 50 °C |
| Certification | RCM compliance mark |
| Max. tightening torque | 1.7 Nm |
| Product weight | 194 g |
| Type of mounting | Tie rod |
| Note on materials | RoHS-compliant |
| Housing material | Die cast aluminum, paintedPA-reinforced |
