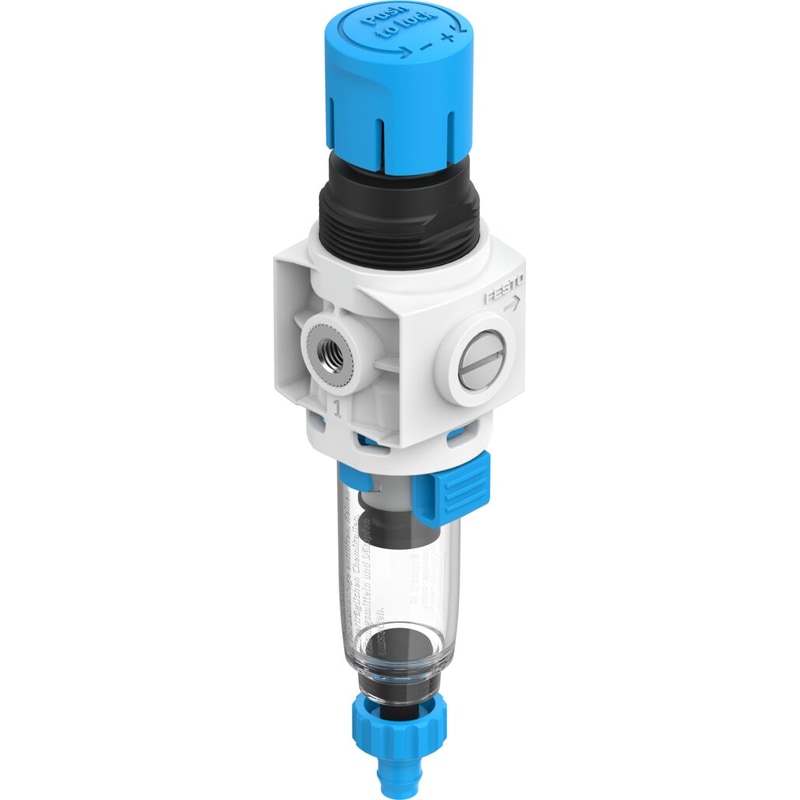

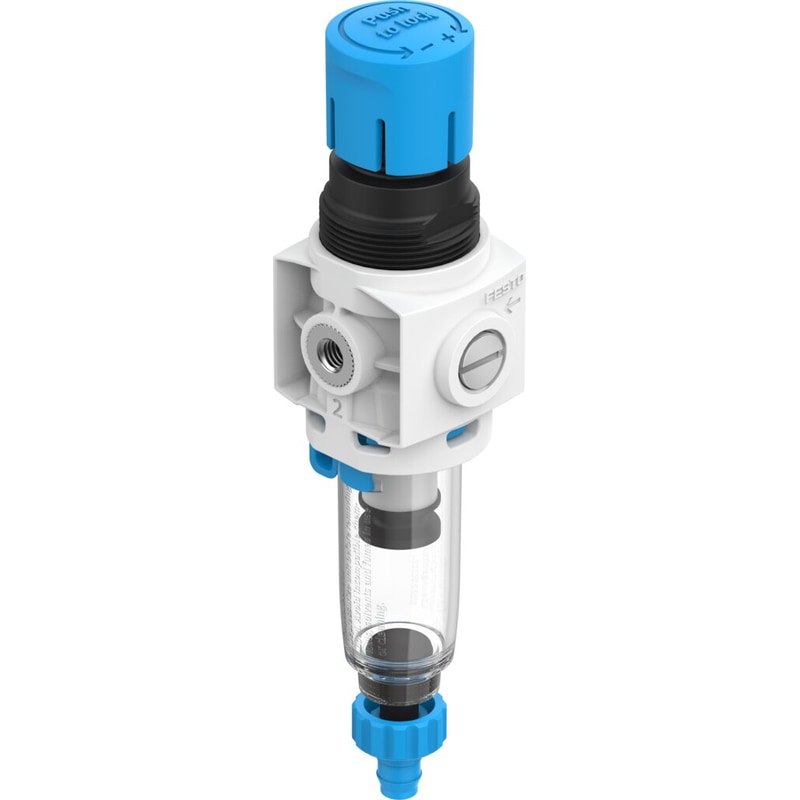

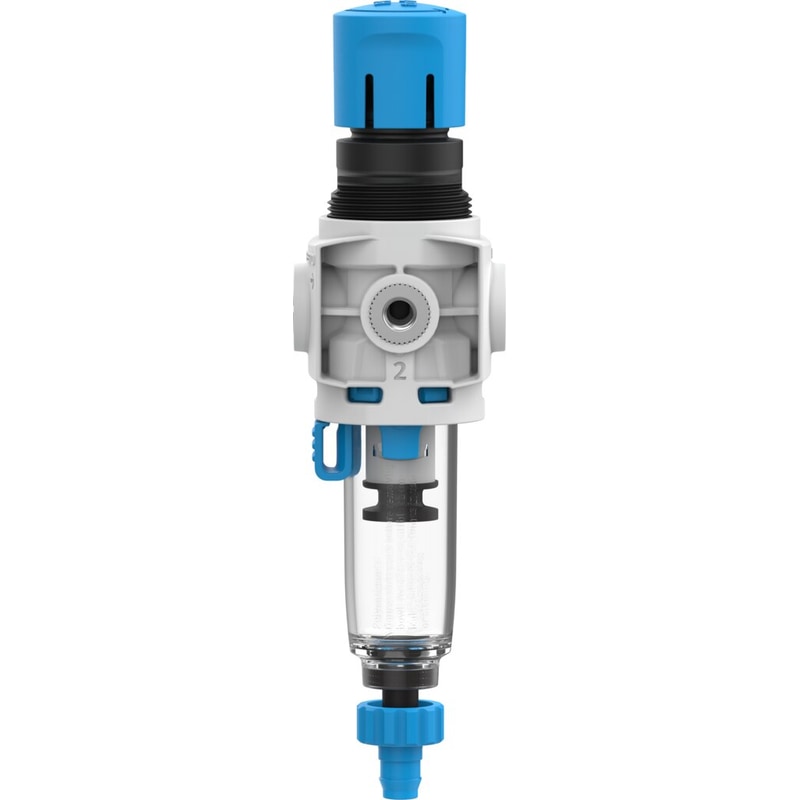

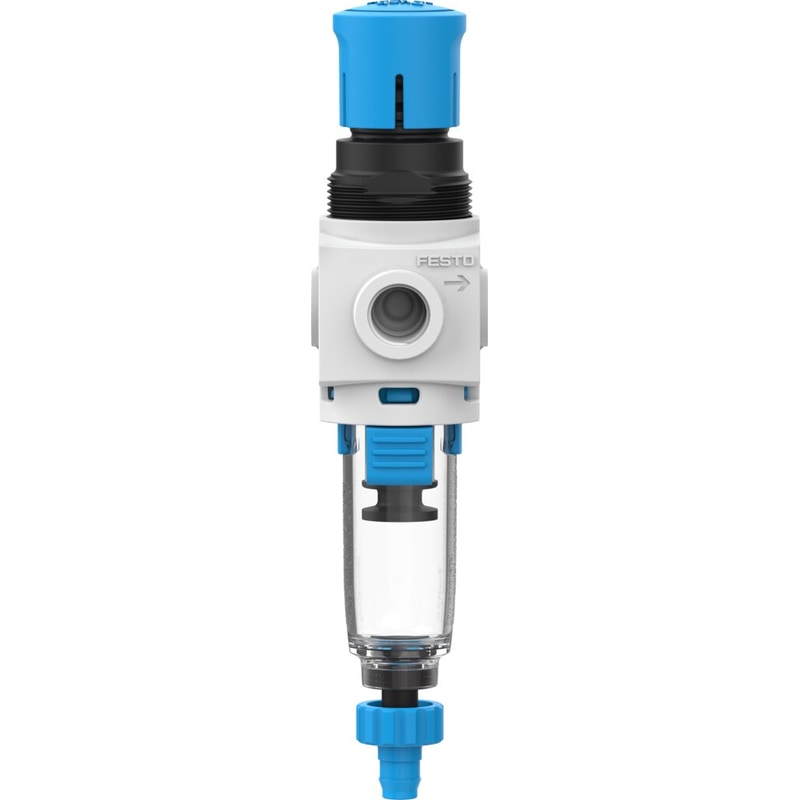

Filter regulator
MS2-LFR-M5-D6-A8-C-M-B
8086643
GTIN 4052568451516
Vendor Festo
- Pneumatic connection 1
- M5
- Normal nominal flow rate (normalized to DIN 1343)
- 140 l/min
- Pressure regulation range
- 0.5 bar - 7 bar
- Max. pressure hysteresis
- 0.25 bar
Regular price
$34.25
Unit price
MS2-LFR-M5-D6-A8-C-M-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS2-LFR-M5-D6-A8-C-M-B
Regular price
$34.25
Unit price
MS2-LFR-M5-D6-A8-C-M-B is backordered and will ship as soon as it is back in stock.
| Size | 2 |
|---|---|
| Type code | MS2-LFR |
| Series | MS |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | Manually rotating |
| Design | Filter regulator without pressure gauge |
| Max. condensate volume | 3 ml |
| Controller function | With secondary exhaustingOutlet pressure constantWith return flow function |

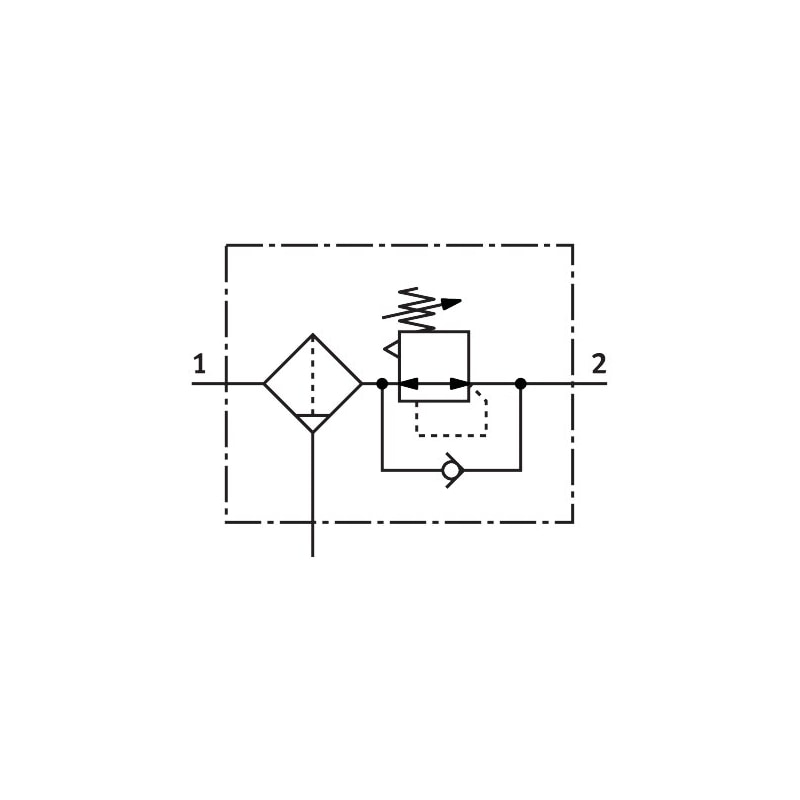

| Symbol | 991590 |
| Pressure gauge | G1/8 prepared |
| Operating pressure | 1 bar ... 10 bar |
| Pressure regulation range | 0.5 bar ... 7 bar |
| Max. pressure hysteresis | 0.25 bar |
| Standard nominal flow rate | 140 l/min |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Storage temperature | -5 °C ... 50 °C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Temperature of medium | -5 °C ... 50 °C |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 42.3 g |
| Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Rotary knob material | POM |
| Material of spring | High-alloy steel |
| Compressed air filter material | PE |
| Housing material | PA |
| Diaphragm material | NBR |
| Material of bowl | PC |
| Separating disc material | POM |
| Valve tappet material | Wrought aluminum alloyNBR |
