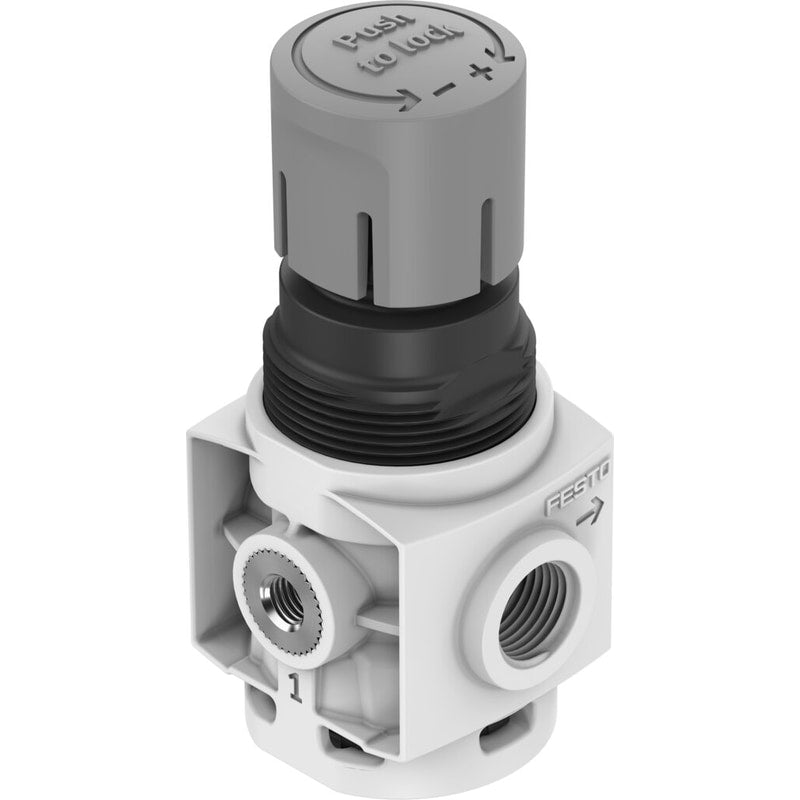

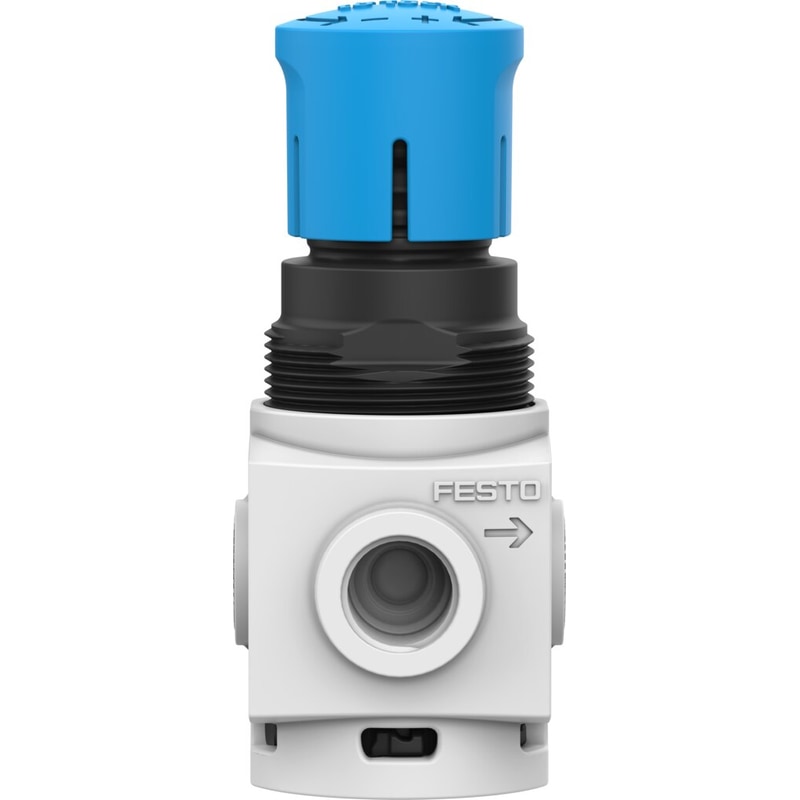

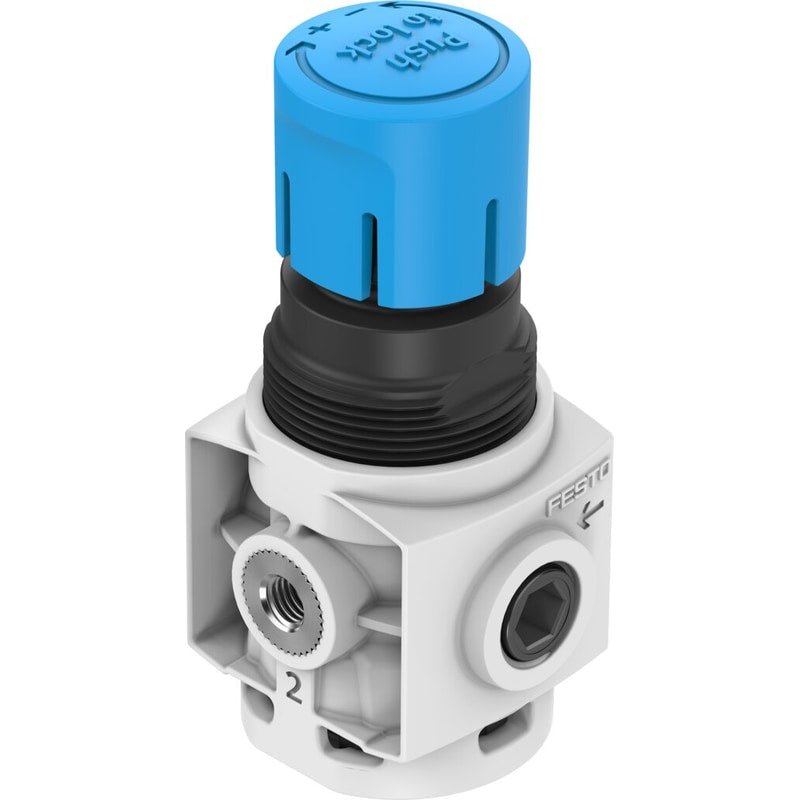

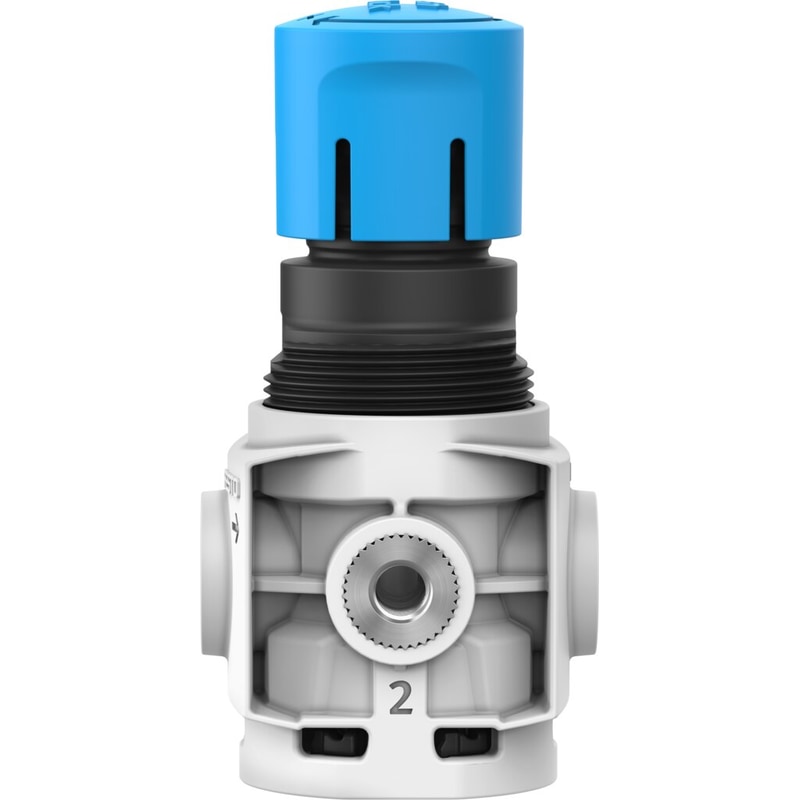

Pressure regulator
MS2-LR-M5-D6-A8-B
8086637
GTIN 4052568451455
Vendor Festo
- Pneumatic connection 1
- M5
- Normal nominal flow rate (normalized to DIN 1343)
- 170 l/min
- Pressure regulation range
- 0.5 bar - 7 bar
- Max. pressure hysteresis
- 0.25 bar
Regular price
$27.46
Unit price
Pressure regulator MS2-LR-M5-D6-A8-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS2-LR-M5-D6-A8-B
Regular price
$27.46
Unit price
Pressure regulator MS2-LR-M5-D6-A8-B is backordered and will ship as soon as it is back in stock.
| Size | 2 |
|---|---|
| Type code | MS2-LR |
| Series | MS |
| Actuator lock | Rotary knob with detent |
| Mounting position | Any |
| Design | Directly controlled diaphragm regulator |
| Controller function | Outlet pressure constantWith secondary exhaustingWith return flow function |
| Symbol | 991559 |
| Pressure gauge | G1/8 prepared |
| Operating pressure | 1 bar ... 10 bar |
| Pressure regulation range | 0.5 bar ... 7 bar |
| Max. pressure hysteresis | 0.25 bar |
| Standard nominal flow rate | 170 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Storage temperature | -5 °C ... 50 °C |
| Temperature of medium | -5 °C ... 50 °C |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 34.8 g |
| Type of mounting | Front panel mountingLine installationWith accessoriesOptionally: |
| Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Rotary knob material | POM |
| Material of spring | High-alloy steel |
| Housing material | PA |
| Diaphragm material | NBR |
| Valve tappet material | NBRWrought aluminum alloy |
