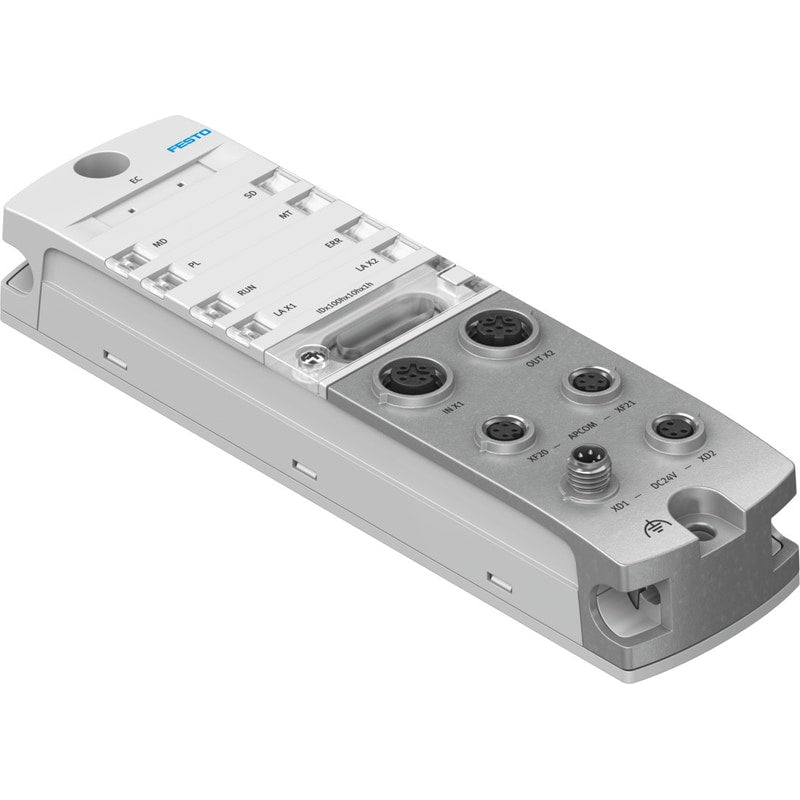

EtherCAT interface
CPX-AP-I-EC-M12
8086609
GTIN 4052568456603
Vendor Festo
Regular price
$655.72
Unit price
CPX-AP-I-EC-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-AP-I-EC-M12
Regular price
$655.72
Unit price
CPX-AP-I-EC-M12 is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 45 mm x 170 mm x 35 mm |
|---|---|
| KC characters | KC EMC |
| Fieldbus interface, connection technology | M12x1, D-coded as per EN 61076-2-101 |
| Diagnose per internal communication | Module errorOutput short circuit/overloadShort circuit/overload in sensor supplyLoad supply undervoltage |
| Max. power supply | 2 x 4 A (external fuse required) |
| Note on degree of protection | Unused connections sealed |
| Communication interface, connection technology | M8x1, D-coded as per EN 61076-2-114 |
| Fieldbus interface, connection type | 2x socket |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Fieldbus interface, type | Ethernet |
| Power supply, connection technology | M8x1, A-coded as per EN 61076-2-104 |
| Power supply, function | Incoming electronics/sensors and load |
| Fieldbus interface, function | Bus connection, incoming/forwarding |
| Information on max. cable length | Power supply according to nominal voltage |
| Intrinsic current consumption at nominal operating voltage load | Typically 5 mA |
| Voltage forwarding, connection technology | M8x1, A-coded as per EN 61076-2-104 |
| Diagnostics via bus | Load switch-offLoad overvoltageLoad undervoltageElectronics/sensors overvoltageElectronics/sensors undervoltageAPDD invalidCommunication with AP module interrupted |
| Relative air humidity | 5 - 95 %Non-condensing |
| Fieldbus interface, galvanic isolation | yes |
| Communication interface, connection type | 2x socket |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 90 mA |
| Power supply, type of connection | Plug |
| Voltage forwarding, connection type | Socket |
| Communication interface, function | System communication XF20 OUT / XF21 OUT |
| Fieldbus interface, protocol | EtherCAT |
| Configuration support | ESI file |
| Max. cable length | 50 m system communication |
| Communication interface, protocol | AP-COM |
| Fieldbus interface, transmission rate | 100 Mbit/s |
| Diagnostics via LED | Diagnostics per moduleEtherCAT RUNPower supply for electronics/sensorsLoad power supplySystem diagnosticsMaintenance required |
| Permissible voltage fluctuations load | ± 25 % |
| Communication interface, shielding | yes |
| Voltage forwarding, function | Outgoing electronics/sensors and load |
| Fieldbus interface, number of poles/wires | 4 |
| Max. address capacity outputs | 2048 byte |
| Voltage forwarding, number of pins/wires | 4 |
| Nominal operating voltage DC for electronics/sensors | 24 V |
| Power supply, number of pins/wires | 4 |
| Max. address capacity inputs | 2048 byte |
| Communication interface, number of pins/wires | 4 |
| Nominal operating voltage DC load | 24 V |
| Power failure buffering | 10 ms |
| Max. number of modules | 80 |
| Note regarding operating voltage | SELV/PELV fixed power supplies requiredNote voltage drop |
| Type code | CPX-AP-I |
| Reverse polarity protection | yes |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Storage temperature | -40 °C ... 70 °C |
| Degree of protection | IP65IP67 |
| Ambient temperature | -20 °C ... 50 °C |
| Certification | RCM compliance mark |
| Product weight | 186 g |
| Type of mounting | With through-hole |
| Note on materials | RoHS-compliant |
| Housing material | PAPCDie-cast zinc, nickel-plated |
