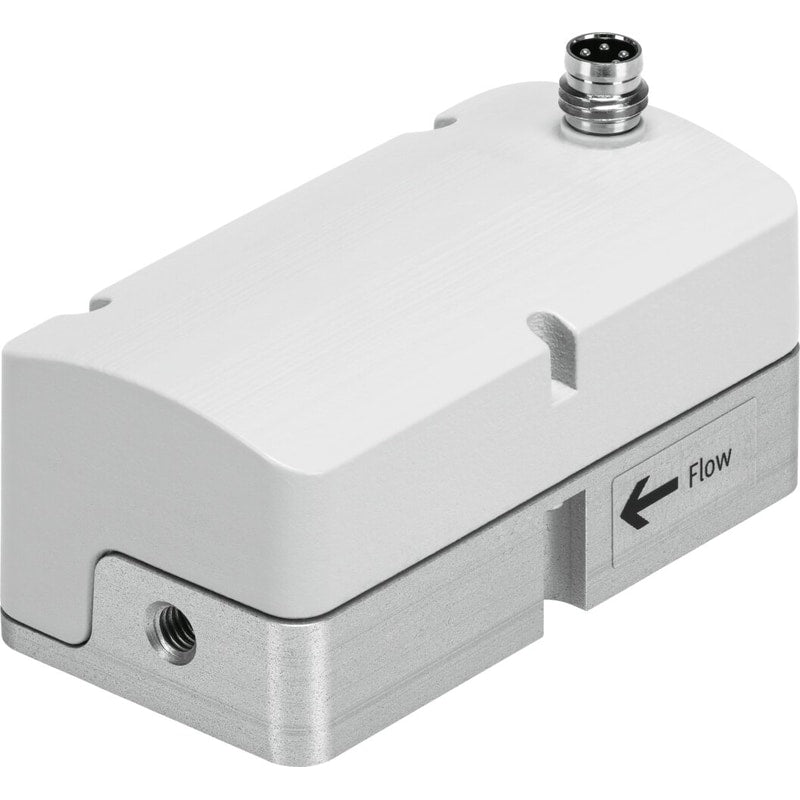

Proportional flow control valve
VEMD-L-6-14-20-D21-M5-5-R1-V4
8086473
GTIN 4052568451400
Vendor Festo
- Valve function
- 2-way proportional flow control valve
- Max. current consumption
- 65 mA
- Electrical connection
- M8x1 A-coded as per EN 61076-2-104 - Plug
- Operating pressure
- 0 bar - 2.5 bar
Regular price
$704.55
Unit price
VEMD-L-6-14-20-D21-M5-5-R1-V4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VEMD-L-6-14-20-D21-M5-5-R1-V4
Regular price
$704.55
Unit price
VEMD-L-6-14-20-D21-M5-5-R1-V4 is backordered and will ship as soon as it is back in stock.
| Type code | VEMD |
|---|---|
| Note on the flow rate control range | The specified flow control range only applies at room temperature. Above room temperature, a reduction of the max. adjustable flow rate may occur. |
| Duty cycle | 1 |
| Analog output signal range | 0.2 - 10 V |
| Reverse polarity protection | for operating voltage connections |
| Certification | RCM compliance mark |
| Electrical connection | M8x14-pinas per EN 60947-5-2Plug |
| Analog input signal range | 0.2 - 10 V |
| Reference value | 0.2 - 10 V |
| Accuracy of flow rate | ± (4% o.m.v. + 1.25% FS) |
| Information on medium | Operation with oil lubrication not possible |
| Repetition accuracy in ± %FS | 1 %FS |
| Hysteresis in ± %FS | 2.5 %FS |
| Burst pressure | 10 bar |
| Temperature coefficient | 0.1 %/K |
| Overload pressure | 6 bar |
| Storage temperature | -20 °C ... 70 °C |
| Flow rate control range | 0 l/min ... 20 l/min |
| Linearity error FS | 0.02 |
| Ambient conditions | Not suitable for use in environments enriched with oxygen according to IEC 60601-1 |
| Valve function | 2-way proportional flow control valve |
| Nominal width | 1.4 mm |
| Operating pressure | 0 bar ... 2.5 bar |
| Dimensions W x L x H | 37 mm x 70 mm x 31 mm |
| Medium | Compressed air as per ISO 8573-1:2010 [6:4:4]NitrogenInert gasOxygen (oxygen applications according to IEC 60601-1 only on request) |
| Special features | Oxygen-compatible as per DIN EN 1797 |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Mounting position | Any |
| Symbol | 995693 |
| DC operating voltage range | 11.1 V ... 13.2 V |
| Nominal operating voltage DC | 12 V |
| Max. current consumption | 65 mA |
| Max. electrical power consumption | 1 W |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Temperature of medium | 5 °C ... 40 °C |
| Degree of protection | IP40 |
| Note on degree of protection | IP51 for horizontal installation |
| Ambient temperature | 0 °C ... 50 °C |
| Product weight | 92 g |
| Type of mounting | Direct fastening via thread |
| Pneumatic connection 1 | Internal thread M5 |
| Pneumatic connection 2 | Internal thread M5 |
| Cover material | PA-reinforced |
| Seals material | NBREPDM |
