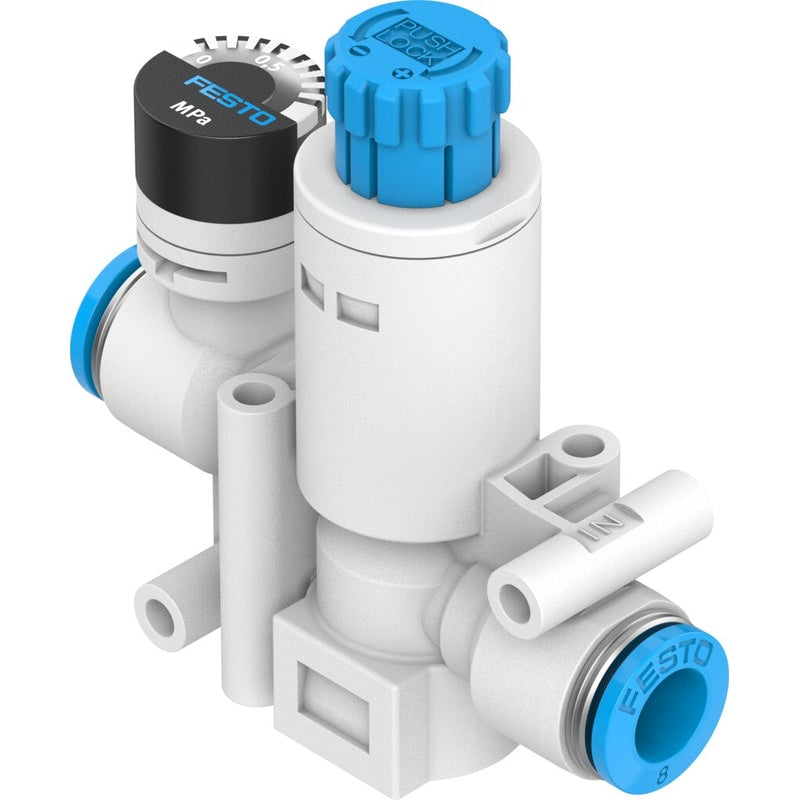

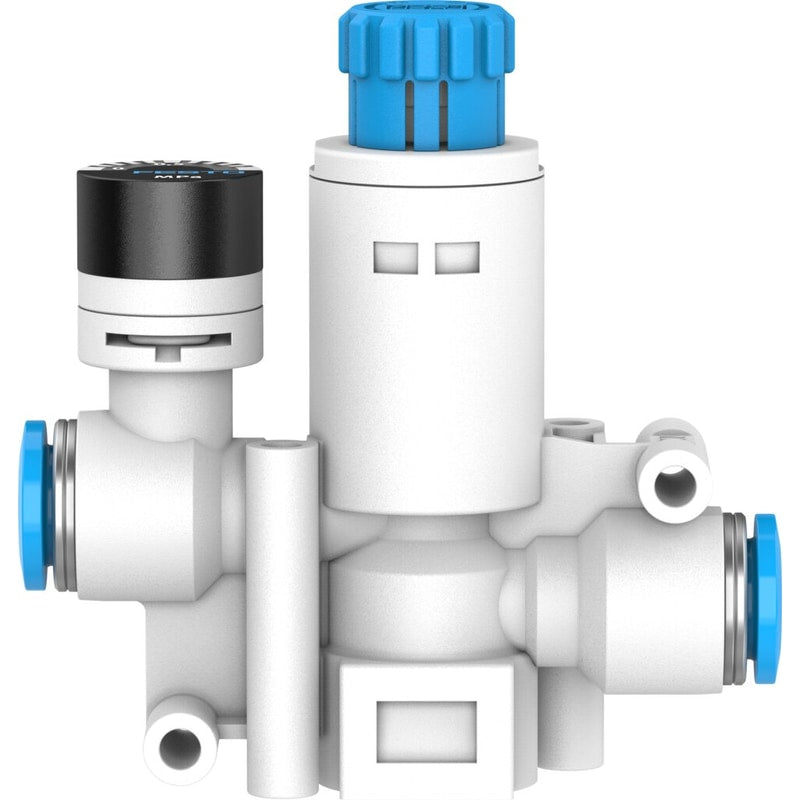

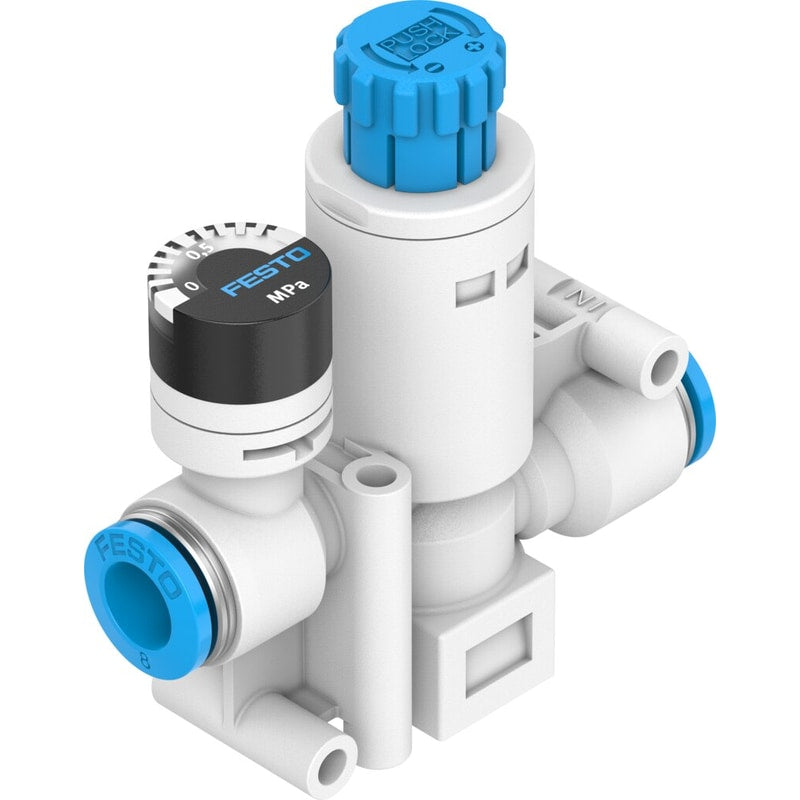

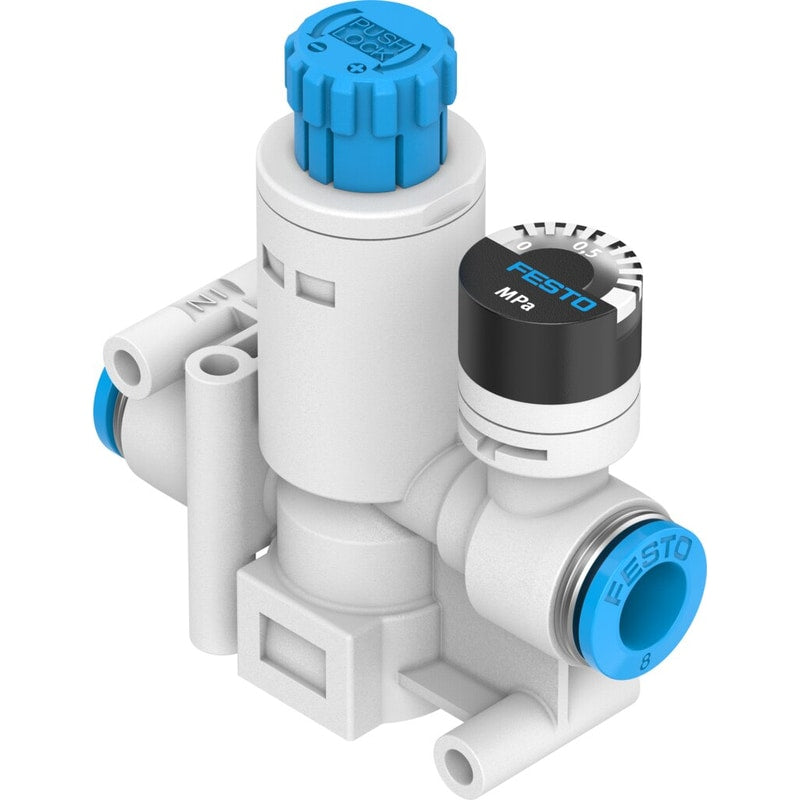

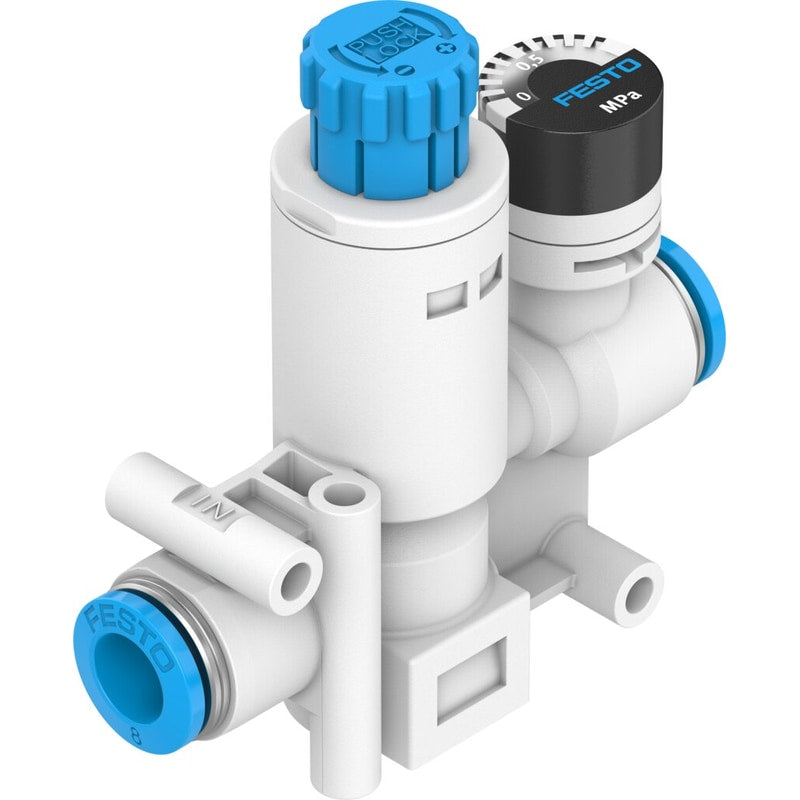

Pressure regulator
VRPA-CM-T14-E
8086006
GTIN 4052568458706
Vendor Festo
- Pressure regulation range
- 1 bar - 8 bar
- Normal nominal flow rate (normalized to DIN 1343)
- 95 l/min
- Pneumatic connection 1
- QS-1/4
- Pneumatic connection 2
- QS-1/4
Regular price
$100.17
Unit price
VRPA-CM-T14-E is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VRPA-CM-T14-E
Regular price
$100.17
Unit price
VRPA-CM-T14-E is backordered and will ship as soon as it is back in stock.
| Type code | VRPA |
|---|---|
| Adjusting element | Rotary knob with detent |
| Actuation type | Manual |
| Static seal material | NBR |
| Controller function | Outlet pressure constantWith secondary exhaustingWith return flow function |
| Pneumatic connection 1 | QS-1/4 |
| Pneumatic connection 2 | QS-1/4 |
| Type of mounting | With through-hole |
| Standard nominal flow rate | 95 l/min |
| Ambient temperature | 0 °C ... 60 °C |
| Housing material | PBT |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Mounting position | Any |

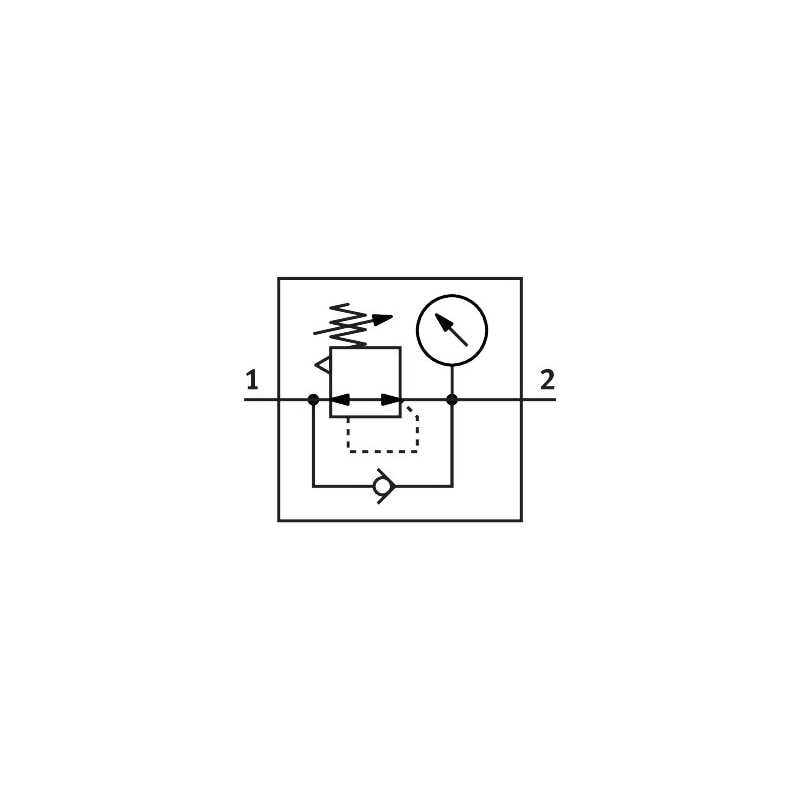

| Symbol | 00991558 |
| Pressure gauge | with pressure gauge |
| Pressure regulation range | 1 bar ... 7.998 bar |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Product weight | 23 g |
| Note on materials | RoHS-compliant |
