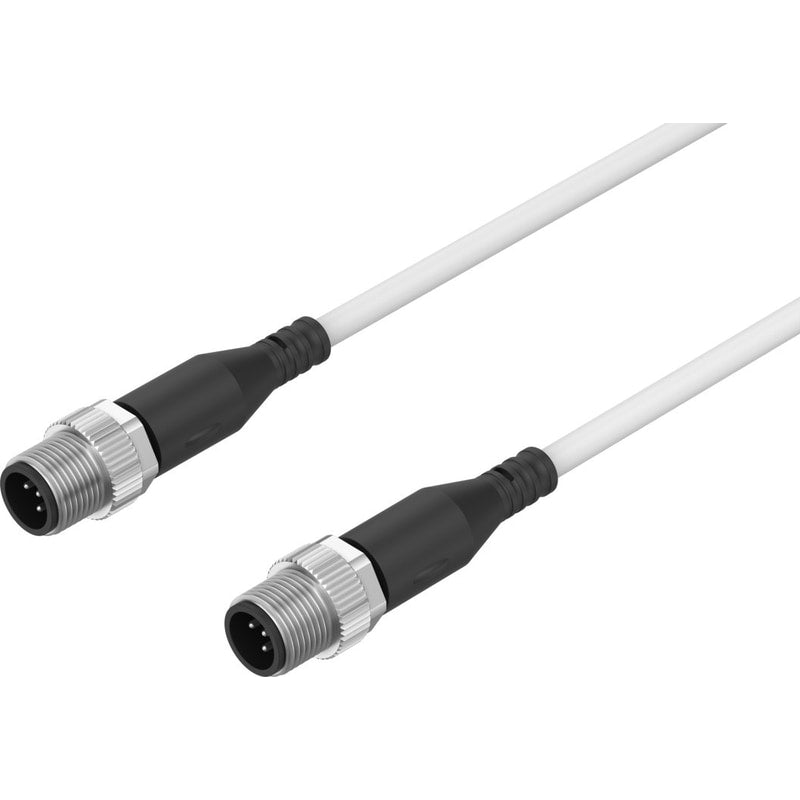

Connecting cable
NEBC-M12G5-S-1,5-N-M12G5
8085741
GTIN 4052568451172
Vendor Festo
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Cable length
- 1.5 m
Regular price
$87.43
Unit price
NEBC-M12G5-S-1,5-N-M12G5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBC-M12G5-S-1,5-N-M12G5
Regular price
$87.43
Unit price
NEBC-M12G5-S-1,5-N-M12G5 is backordered and will ship as soon as it is back in stock.
| Type code | NEBC |
|---|---|
| Cable designation | With accessories |
| Contact durability | 500 |
| Product weight | 163 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 5 |
| Electrical connection 1, occupied pins/wires | 5 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 995383 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Round |
| Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 2, number of pins/wires | 5 |
| Electrical connection 2, occupied pins/wires | 5 |
| Electrical connection 2, type of mounting | Screw-type lock |
| Electrical connection 2, connection pattern | 995383 |
| DC operating voltage range | 0 V ... 30 V |
| Current rating at 40°C | 0.166666666666667 |
| Surge resistance | 0.8 kV |
| Cable length | 1.5 m |
| Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request |
| Cable diameter | 5 mm |
| Cable design | 4 x 0.34 mm²Shielded |
| Nominal conductor cross section | 0.34 mm² |
| Degree of protection | IP65IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -25 °C ... 70 °C |
| Ambient temperature with flexible cable installation | -5 °C ... 70 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Light gray |
| Housing material | TPE-U(PUR) |
| Housing colour | Black |
| Material of screw-type lock | Brass, nickel-plated |
| Material of pin contacts | Bronze, gold-platedBrass, gold-plated |
| Insulating sheath material | PVC |
