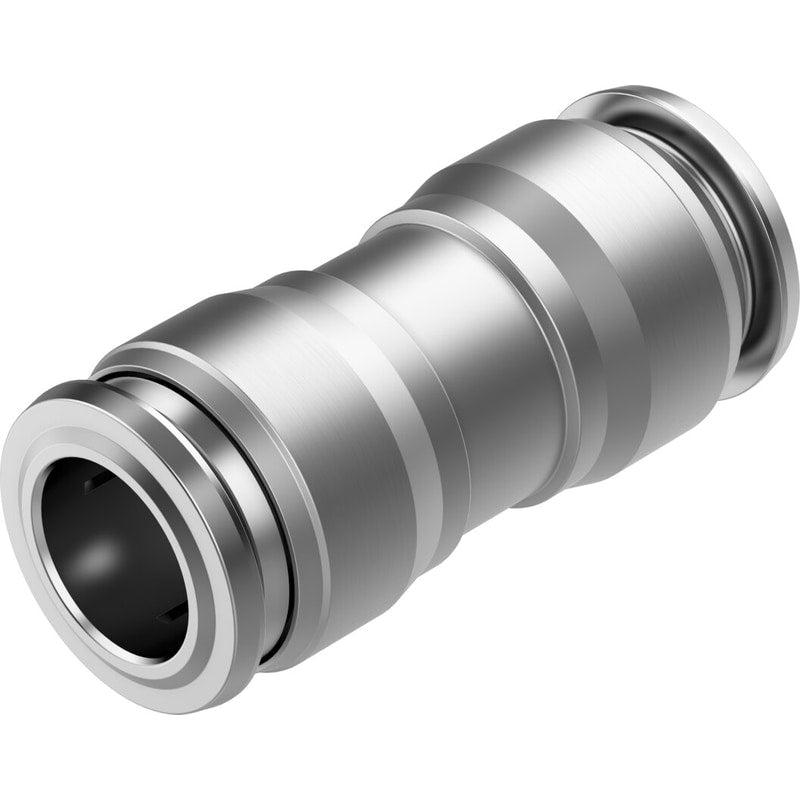

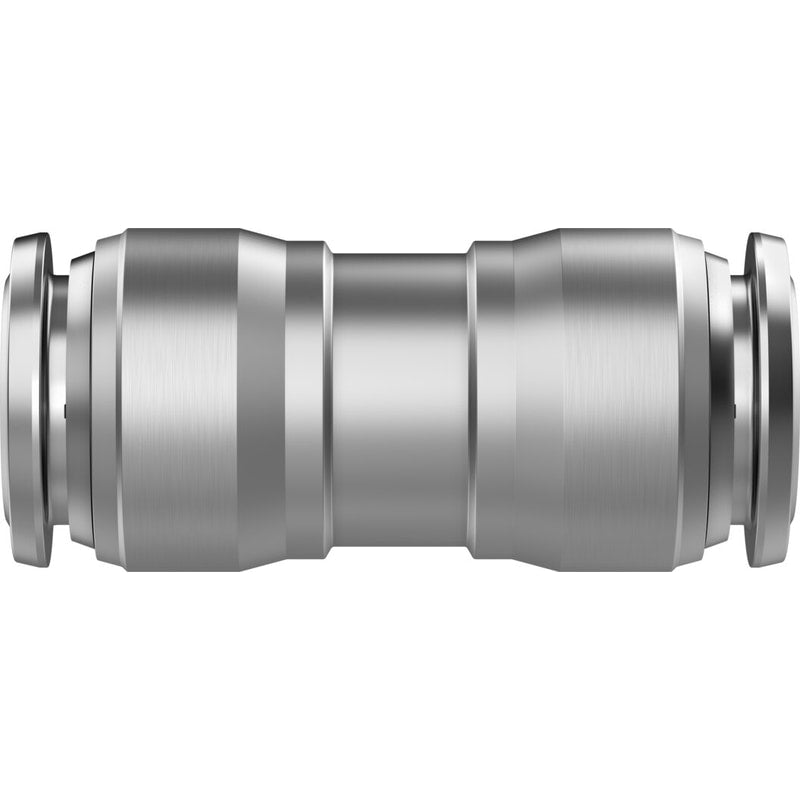

Plug connector
NPQR-D-Q12-E
8085701
GTIN 4052568454920
Vendor Festo
- Pneumatic connection 1
- for pneumatic tubing outside diameter 12 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Operating pressure for entire temperature range
- -0.95 bar - 16 bar
- Ambient temperature
- -20 °C - 150 °C
- Nominal width
- 11 mm
Regular price
$97.37
Unit price
NPQR-D-Q12-E is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQR-D-Q12-E
Regular price
$97.37
Unit price
NPQR-D-Q12-E is backordered and will ship as soon as it is back in stock.
| Size | Standard |
|---|---|
| Certificate issuing authority | NSF C0556009 |
| Nominal width | 11 mm |
| Type code | NPQR |
| Mounting position | Any |
| Pack size | 1 |
| Design | Push-pull principle |
| Operating pressure for entire temperature range | -0.95 bar ... 16 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| For use in the food industry | See declaration of conformityNSF/ANSI 169 |
| Ambient temperature | -20 °C ... 150 °C |
| Product weight | 49.1 g |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 12 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
| Note on materials | RoHS-compliant |
| Housing material | High-alloy stainless steel |
| Releasing ring material | High-alloy stainless steel |
| Material of tubing seal | FPM |
| Material of tube retaining claw | High-alloy stainless steel |
