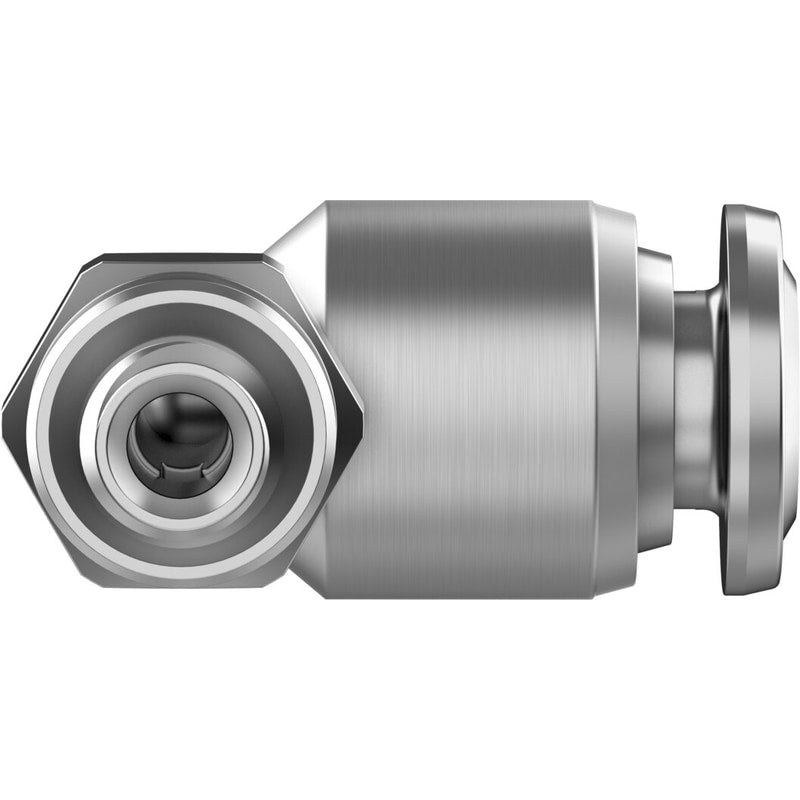

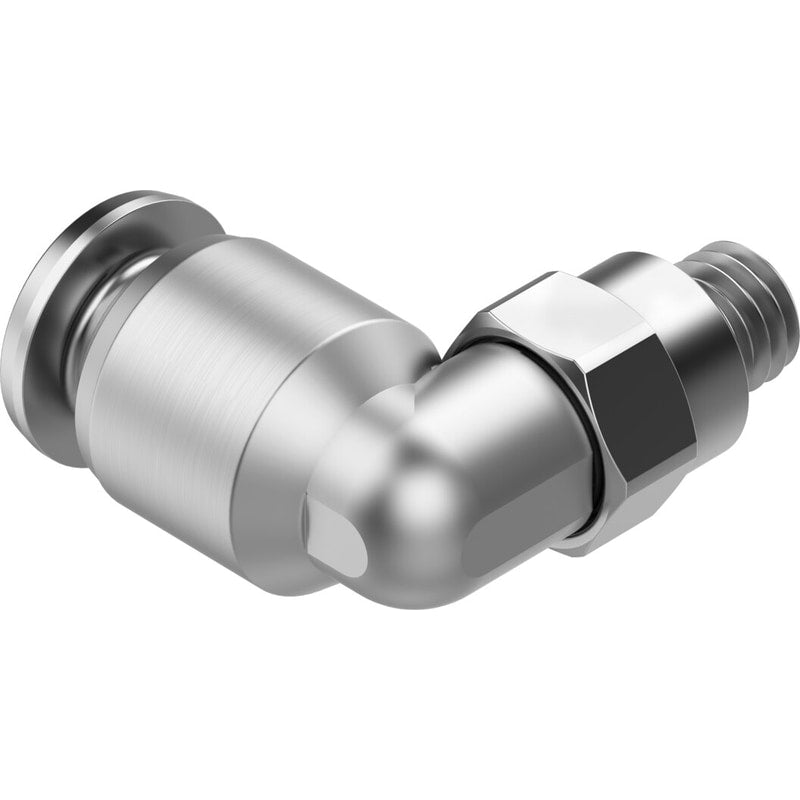

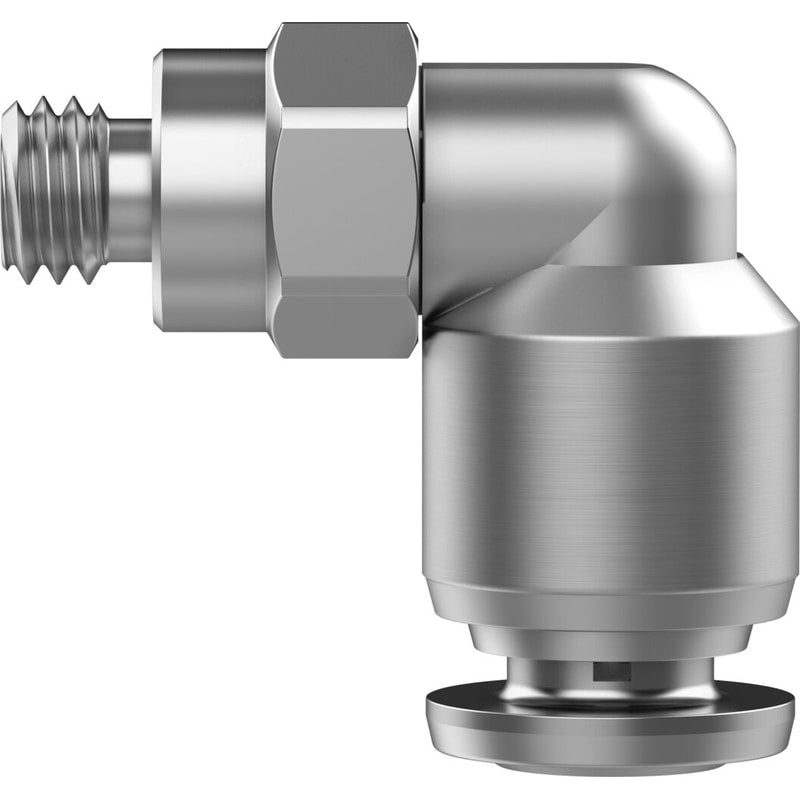

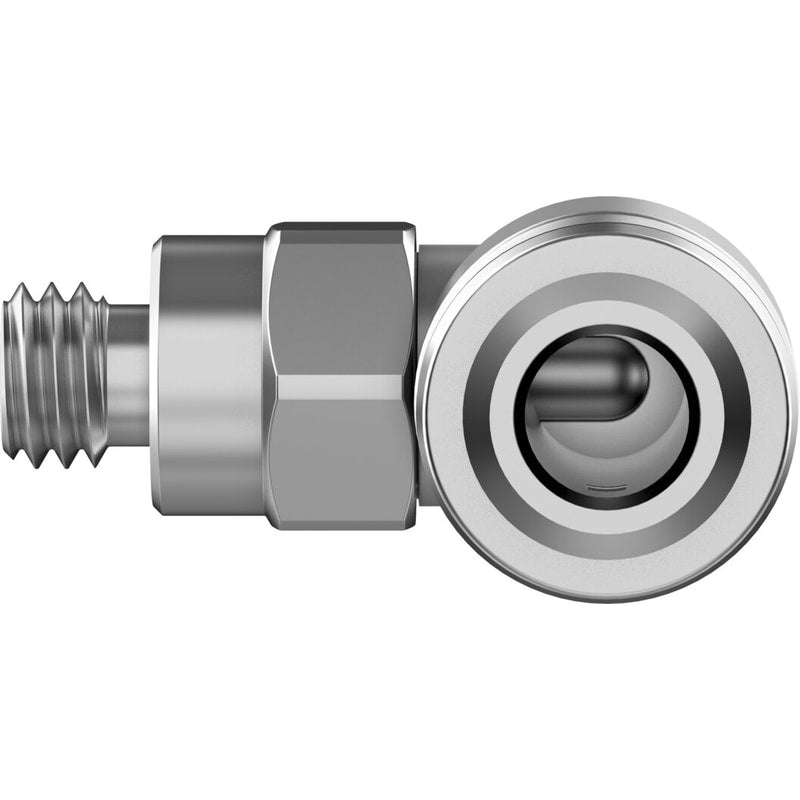

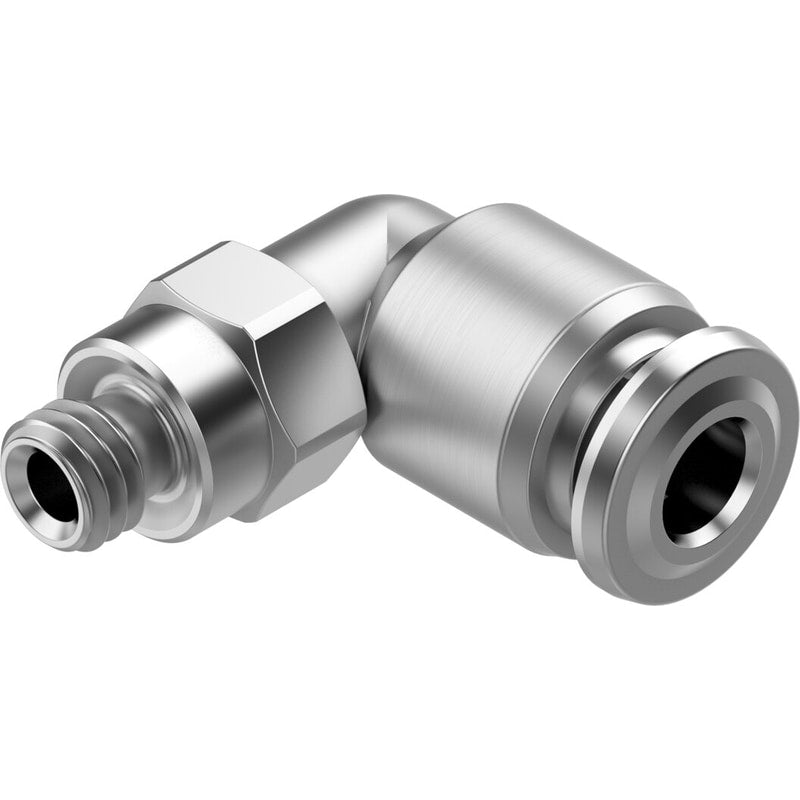

Push-in fitting
NPQR-L-M5-Q4
8085679
GTIN 4052568454739
Vendor Festo
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Operating pressure for entire temperature range
- -0.95 bar - 16 bar
- Ambient temperature
- -20 °C - 150 °C
- Nominal width
- 2 mm
Regular price
$41.15
Unit price
NPQR-L-M5-Q4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQR-L-M5-Q4
Regular price
$41.15
Unit price
NPQR-L-M5-Q4 is backordered and will ship as soon as it is back in stock.
| Size | Standard |
|---|---|
| Nominal width | 2 mm |
| Type of seal on screwed trunnion | Sealing ring |
| Mounting position | Any |
| Pack size | 1 |
| Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -0.95 bar ... 16 bar |
| Certificate issuing authority | NSF C0556009 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| For use in the food industry | See declaration of conformity NSF/ANSI 169 |
| Ambient temperature | -20 °C ... 150 °C |
| Nominal tightening torque | 1 Nm |
| Tolerance for nominal tightening torque | ± 20% |
| Product weight | 8.3 g |
| Pneumatic connection 1 | External thread M5 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Note on materials | RoHS-compliant |
| Housing material | High-alloy stainless steel |
| Releasing ring material | High-alloy stainless steel |
| O-ring material | FPM |
| Material of tubing seal | FPM |
| Material of tube retaining claw | High-alloy stainless steel |
