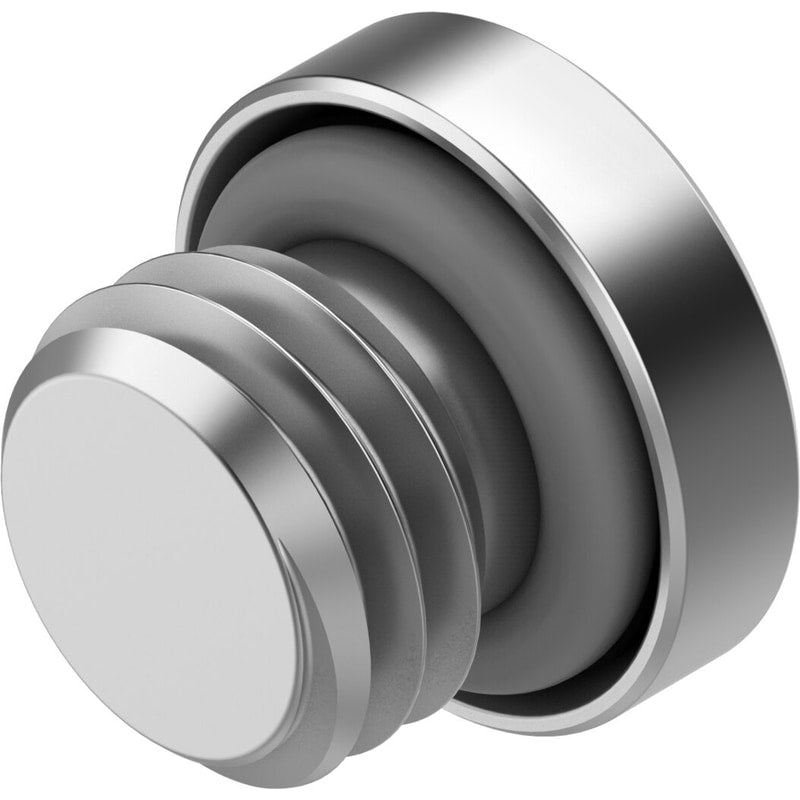

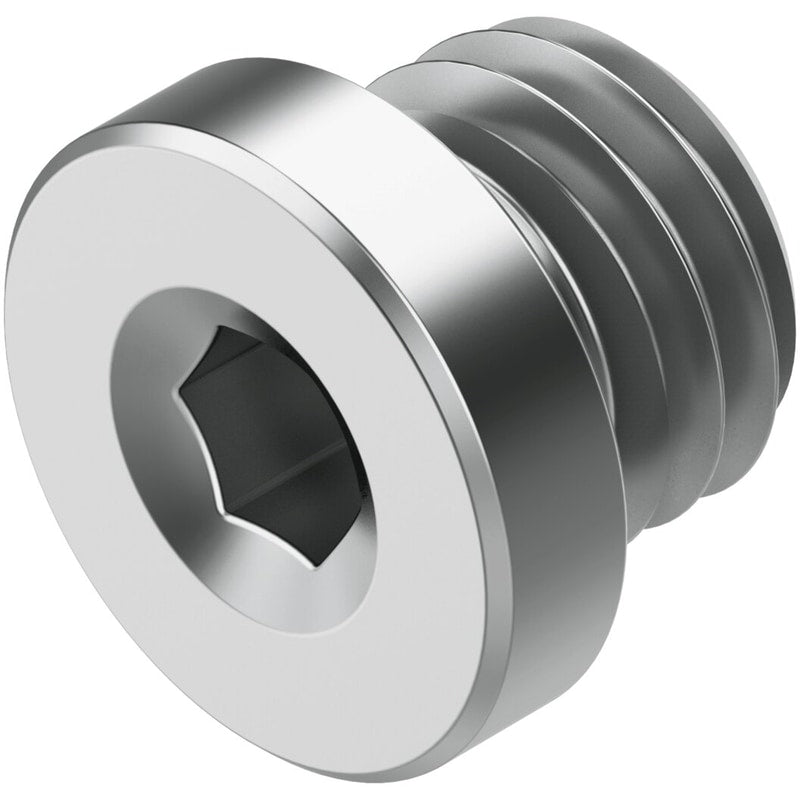

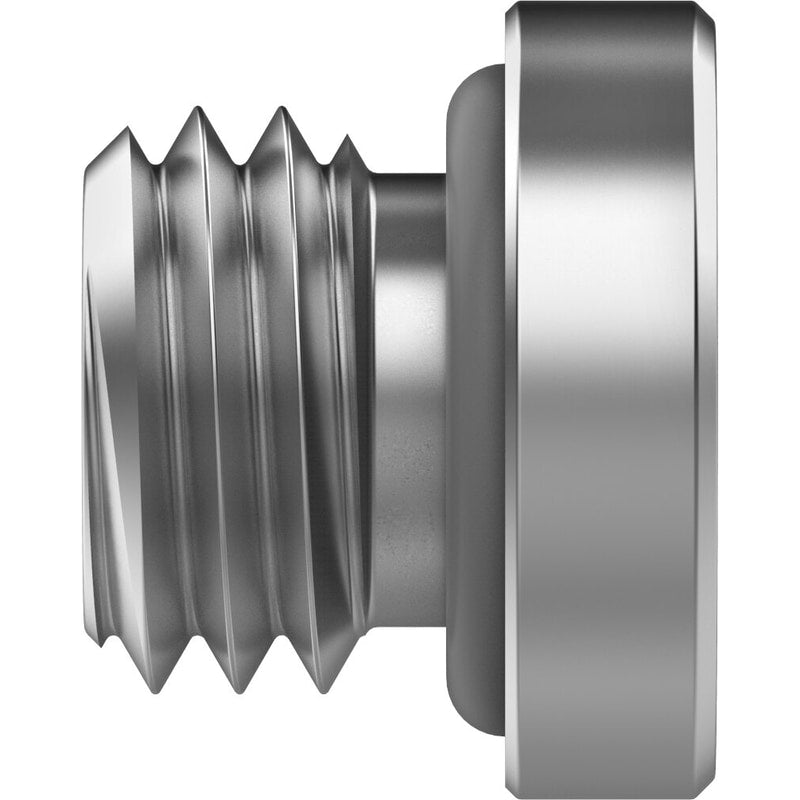

Plug screw
NPQR-BK-M7
8085672
GTIN 4052568451127
Vendor Festo
- Pneumatic connection 1
- External thread M7
- Operating pressure for entire temperature range
- -0.95 bar - 16 bar
- Ambient temperature
- -20 °C - 150 °C
Regular price
$13.70
Unit price
NPQR-BK-M7 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQR-BK-M7
Regular price
$13.70
Unit price
NPQR-BK-M7 is backordered and will ship as soon as it is back in stock.
| Size | Standard |
|---|---|
| Type code | NPQR |
| Type of seal on screwed trunnion | Sealing ring |
| Mounting position | Any |
| Pack size | 1 |
| Operating pressure for entire temperature range | -0.95 bar ... 16 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| Ambient temperature | -20 °C ... 150 °C |
| Nominal tightening torque | 3 Nm |
| Tolerance for nominal tightening torque | ± 20% |
| Product weight | 2.1 g |
| Pneumatic connection 1 | External thread M7 |
| Note on materials | RoHS-compliant |
| Housing material | High-alloy stainless steel |
| O-ring material | FPM |
