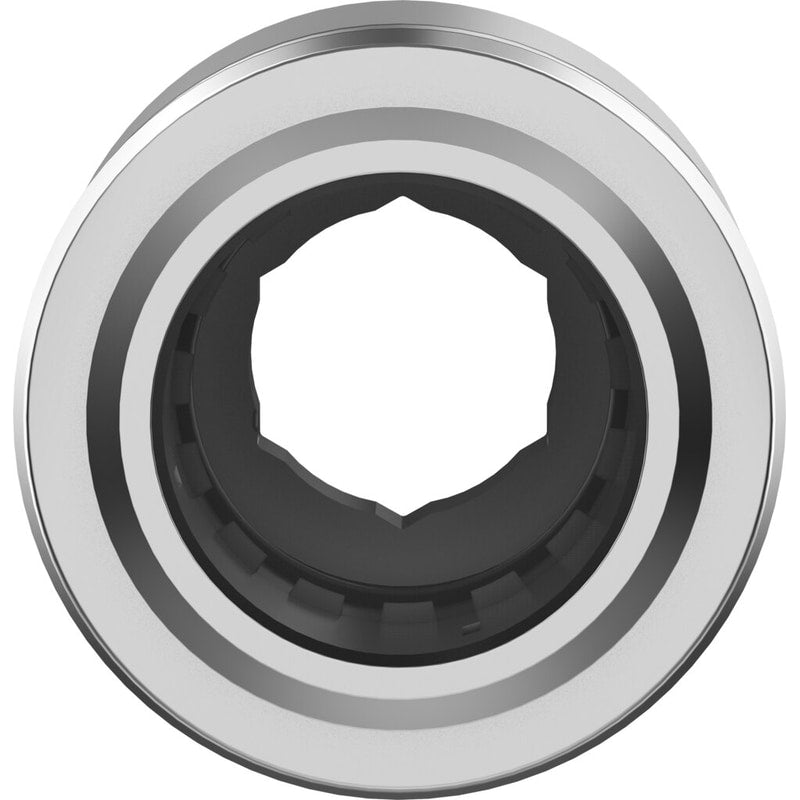

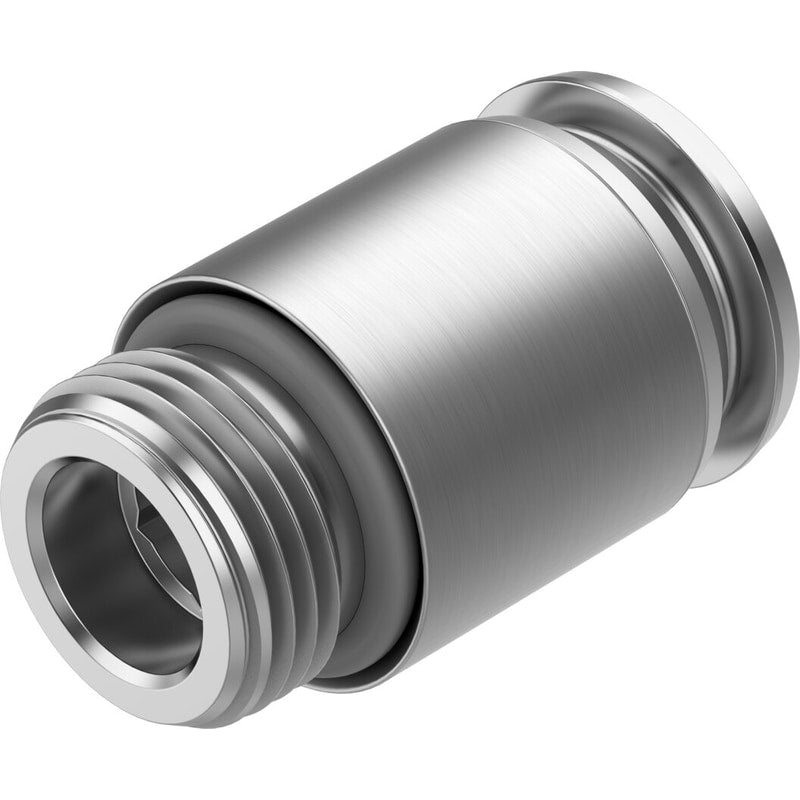

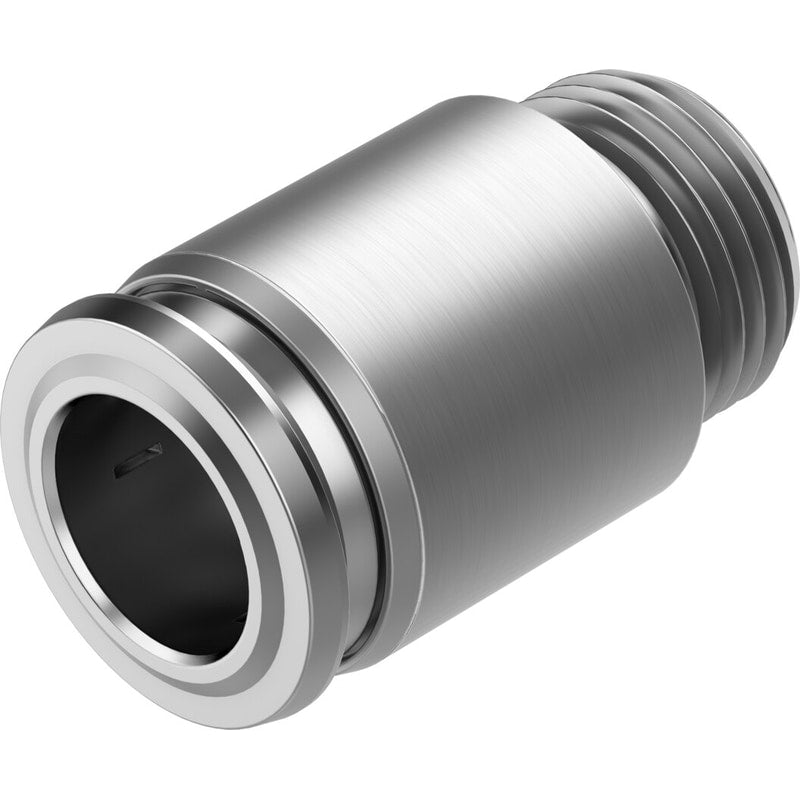

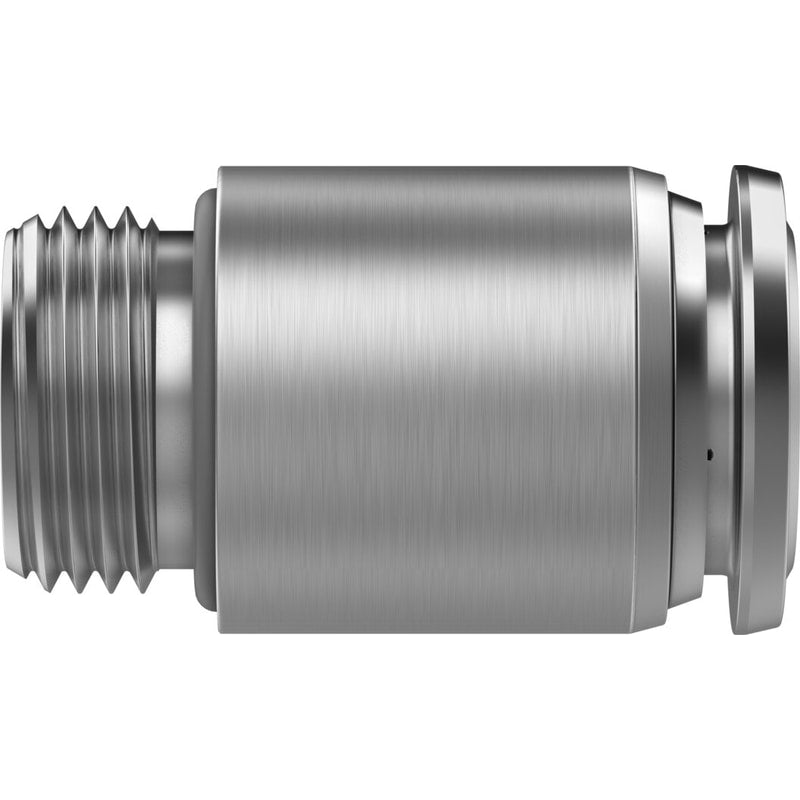

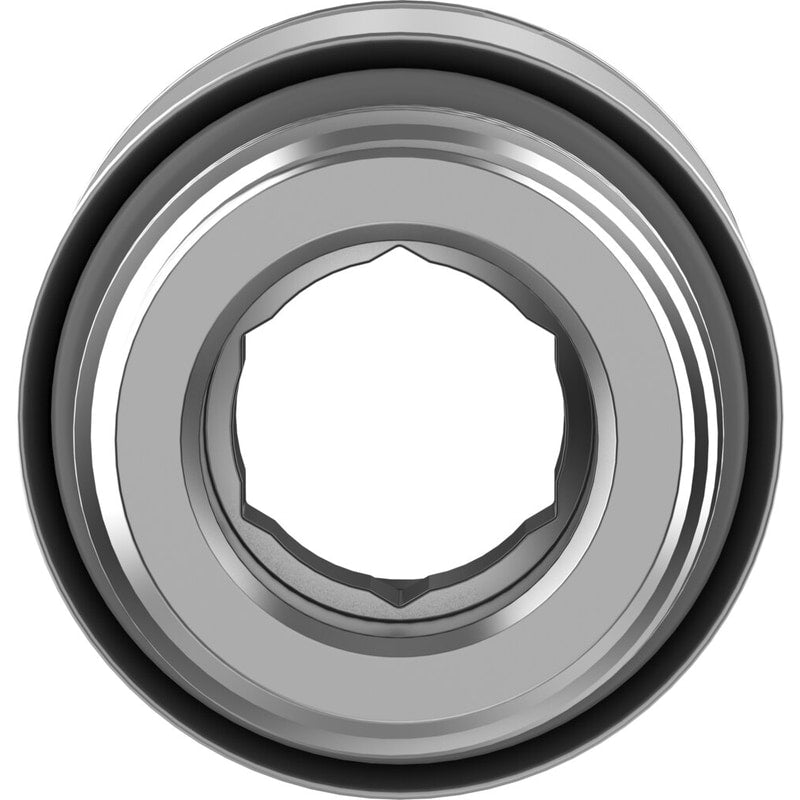

Push-in fitting
NPQR-DK-G38-Q12
8085668
GTIN 4052568451103
Vendor Festo
- Pneumatic connection 1
- External thread G3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Operating pressure for entire temperature range
- -0.95 bar - 16 bar
- Ambient temperature
- -20 °C - 150 °C
- Nominal width
- 8.4 mm
Regular price
$52.39
Unit price
NPQR-DK-G38-Q12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQR-DK-G38-Q12
Regular price
$52.39
Unit price
NPQR-DK-G38-Q12 is backordered and will ship as soon as it is back in stock.
| Size | Standard |
|---|---|
| Nominal width | 8.4 mm |
| Type code | NPQR |
| Type of seal on screwed trunnion | Sealing ring |
| Mounting position | Any |
| Pack size | 1 |
| Design | Push-pull principle |
| Operating pressure for entire temperature range | -0.95 bar ... 16 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| Ambient temperature | -20 °C ... 150 °C |
| Nominal tightening torque | 9 Nm |
| Tolerance for nominal tightening torque | ± 20% |
| Product weight | 36.5 g |
| Pneumatic connection 1 | External thread G3/8 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
| Note on materials | RoHS-compliant |
| Housing material | High-alloy stainless steel |
| Releasing ring material | High-alloy stainless steel |
| O-ring material | FPM |
| Material of tubing seal | FPM |
| Material of tube retaining claw | High-alloy stainless steel |
