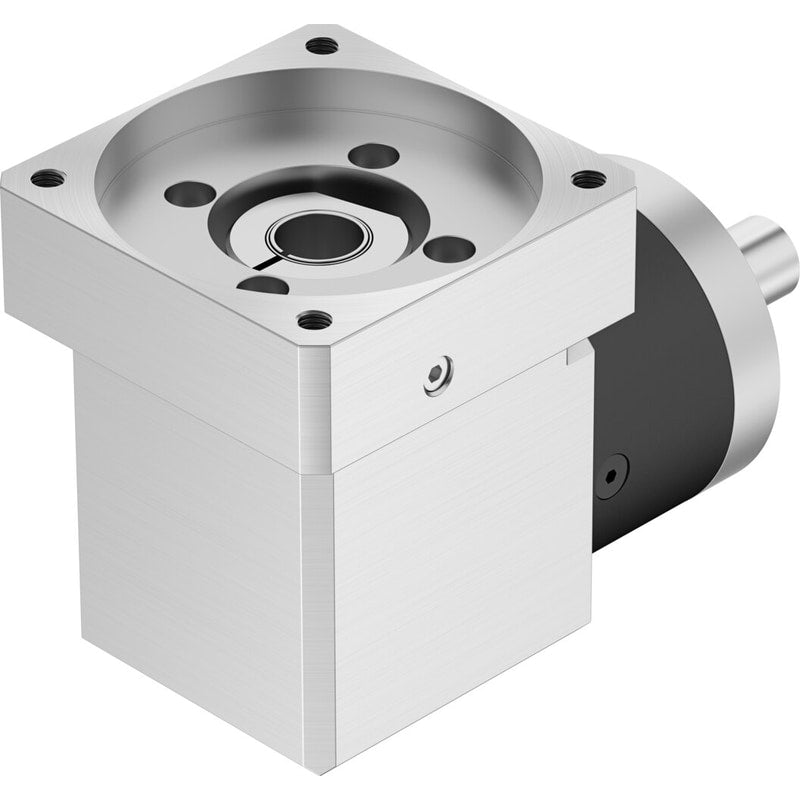

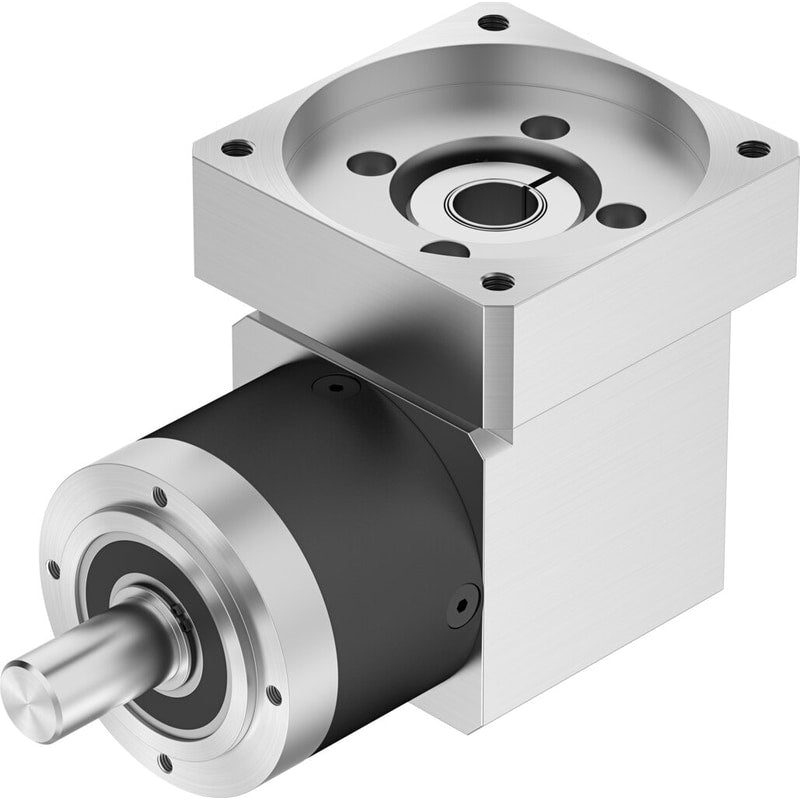

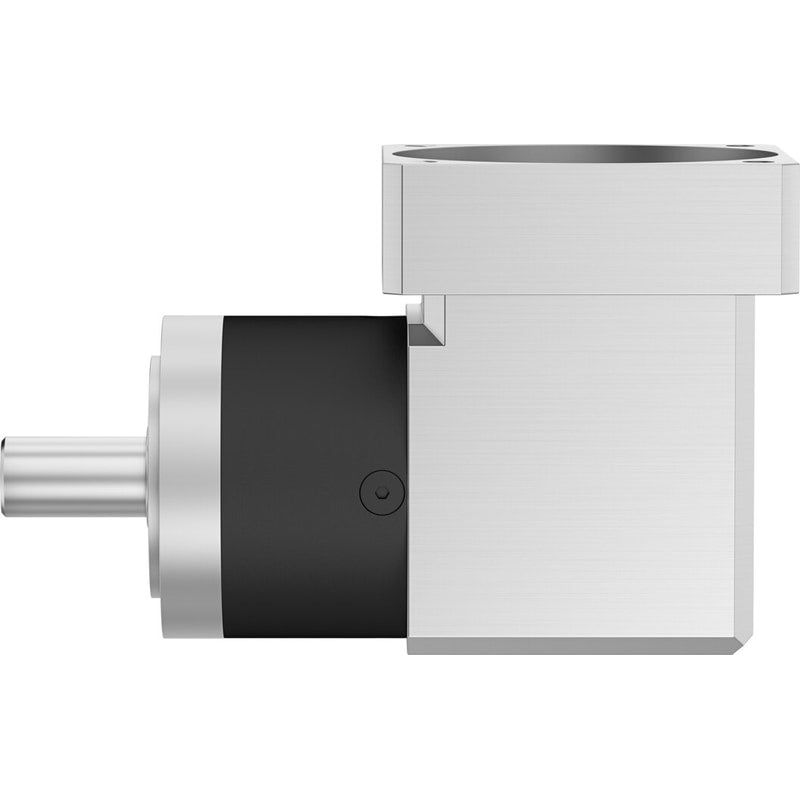

Gearbox
EMGA-80-A-G5-100A
8085349
GTIN 4052568450946
Vendor Festo
- Continuous output torque
- 67 Nm
- Max. actuator speed
- 7000 1/min
- Torsional rigidity
- 4.8 Nm/arcmin
- Gear ratio
- 5:1
- Gearbox type
- Angular gear
Regular price
$1,148.81
Unit price
EMGA-80-A-G5-100A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EMGA-80-A-G5-100A
Regular price
$1,148.81
Unit price
EMGA-80-A-G5-100A is backordered and will ship as soon as it is back in stock.
| Gearbox flange size | 80 mm |
|---|---|
| Motor flange size | 100 mm |
| Torsional backlash | 0.22 deg |
| Type code | EMGA |
| Gearbox type | Angular gear |
| Gear ratio | 0.209027777777778 |
| Max. actuator speed | 3600 1/min |
| Gearbox operating temperature | -25 °C ... 90 °C |
| Degree of protection | IP54 |
| Continuous output torque | 67 Nm |
| Mass moment of inertia, gearbox | 1.017 kgcm² |
| Max. output torque | 107 Nm |
| Max. efficiency | 0.95 |
| Torsional rigidity | 4.8 Nm/arcmin |
| Product weight | 4500 g |
| Gearbox interface, output shaft | 80G |
| Gearbox interface, actuator | 100A |
| Note on materials | RoHS-compliant |
