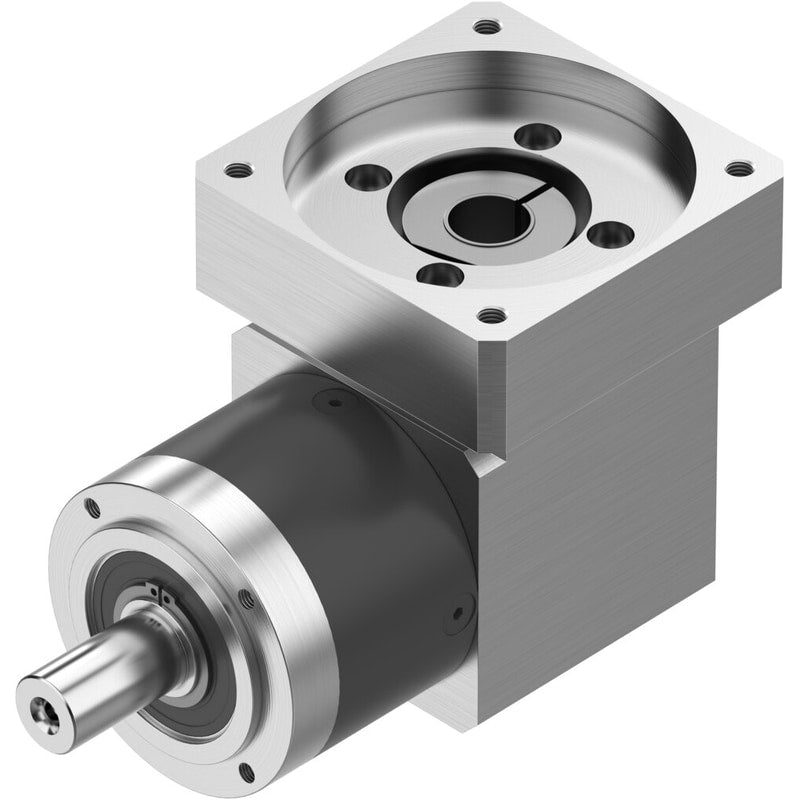

Gearbox
EMGA-80-A-G5-80P
8085347
GTIN 4052568450922
Vendor Festo
- Continuous output torque
- 67 Nm
- Max. actuator speed
- 7000 1/min
- Torsional rigidity
- 4.8 Nm/arcmin
- Gear ratio
- 5:1
- Gearbox type
- Angular gear
Regular price
$1,148.81
Unit price
EMGA-80-A-G5-80P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EMGA-80-A-G5-80P
Regular price
$1,148.81
Unit price
EMGA-80-A-G5-80P is backordered and will ship as soon as it is back in stock.
| Gearbox flange size | 80 mm |
|---|---|
| Motor flange size | 80 mm |
| Torsional backlash | 0.22 deg |
| Type code | EMGA |
| Gearbox type | Angular gear |
| Gear ratio | 0.209027777777778 |
| Max. actuator speed | 3600 1/min |
| Gearbox operating temperature | -25 °C ... 90 °C |
| Degree of protection | IP54 |
| Continuous output torque | 67 Nm |
| Mass moment of inertia, gearbox | 1.017 kgcm² |
| Max. output torque | 107 Nm |
| Max. efficiency | 0.95 |
| Torsional rigidity | 4.8 Nm/arcmin |
| Product weight | 4300 g |
| Gearbox interface, output shaft | 80G |
| Gearbox interface, actuator | 80P |
| Note on materials | RoHS-compliant |
